COBALM LUX/LUX CU Single Head Bridge Polishing Machine
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Single Head Polishing Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Oct 01,1990
Main Product:
CNC Bridge Saws, CNC Routers, Engraving Machines|
Machinery Function Features

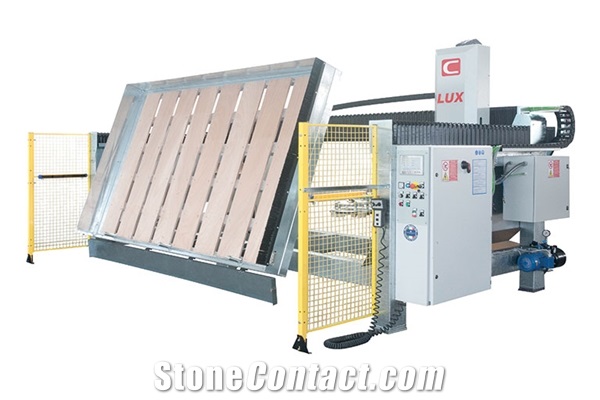

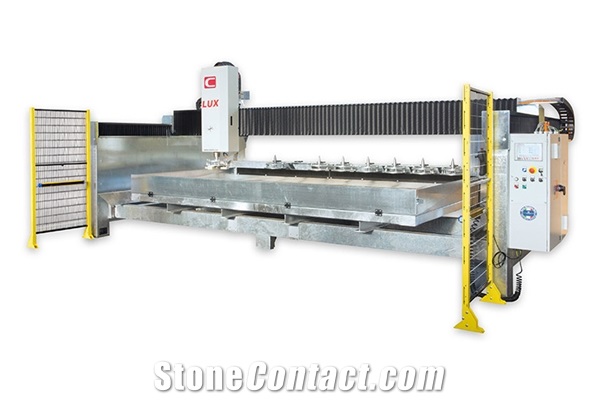

Single head bridge polishing machine. The machine is built in electrowelded metal that has been hot galvanized and treated with epoxy coatings. Working table built in heavy metal covered with plywood staves, galvanized protection side panels. single block machine in rugged costruction, that does not require masonry work or technical assistance for installation. It is easy to use for polishing, sanding, brushing and specific rotary tool it can bush-hammered, scratch etc..
Control panel with color display and touch screen TFT 7 ". 4 pre-programmed cycles and program for machining polygonal flat surfaces.
Technical Data
Parameters |
Unit |
LUX |
LUX CU |
Machine overall width |
mm |
3175 |
3870 |
Spindle beam travel speed |
m/min |
0/8 |
0/12 |
Spindle rotation speed |
r/min |
500/2000 |
500/2000 |
Y axis stroke |
mm |
1900 |
1900 |
X axis stroke |
mm |
3600 |
3100/3500 |
Diameter of polishing heads/plates |
mm |
350/400 |
350/400 |
Machine overall length |
mm |
5600 |
5600 |
Power of single polishing head |
kw |
11 |
10 |
Approx. Weight |
Kg |
3100 |
3500-3600 |
Machine overall height |
mm |
2500 |
2500 |
Slabs max. processable thickness |
mm |
200/240 |
200/240 |
Z axis stroke |
mm |
280 |
280 |
