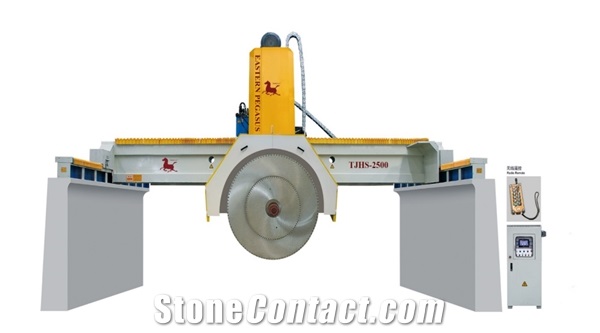

High Efficiency Stone Block Bridge Cutting Machine
FOB Price:$29000-35000
Type:
Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
Within 25-30 days after receive deposit
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Feb 26,2006
Main Product:
Quarry Machine;, Stone Cutting Machine, Stone Polishing Machine, Stone Crushing Machine, Other Machine, Stone Tools|
Machinery Function Features
This machine is for cutting granite and marble blocks in a different size. The combination of multiblade with different dimensions increases working efficiency. Linear guide path imported from Taiwan is used on the transverse moving structure, this will ensure the high stability of cutting, endure it is service time, easy to replace. Sliding ways of up/down system is quantity proceed by completely new grinding machine, for the purse of high precision and quality.
Technical Data.
Technical Data
Parameters |
Unit |
TJHS-2500 |
TJHS-3000 |
Up/down working range |
mm |
1100 |
1400 |
No.of blade |
PCS |
8-13 pcs, Big-Medium-Small |
9-18 pcs, Big-Medium-Small |
Left/right working range |
mm |
3200-4300 |
3500-4800 |
Main shaft diameter |
mm |
Ø100 |
Ø100/120 |
Disc diameter |
4 |
2500 |
3000 |
Crossbeam length |
mm |
7500 |
8000 |
Main motor |
kw |
55 |
65 |
Approximate Weight |
Kg |
13500 |
20000 |
Machine size |
mm |
8700*4500*6500 |
9200*5000*6800 |
Max.blade diameter |
mm |
Ø2500 |
Ø3000 |
Water consumption |
m3/h |
14 |
20 |

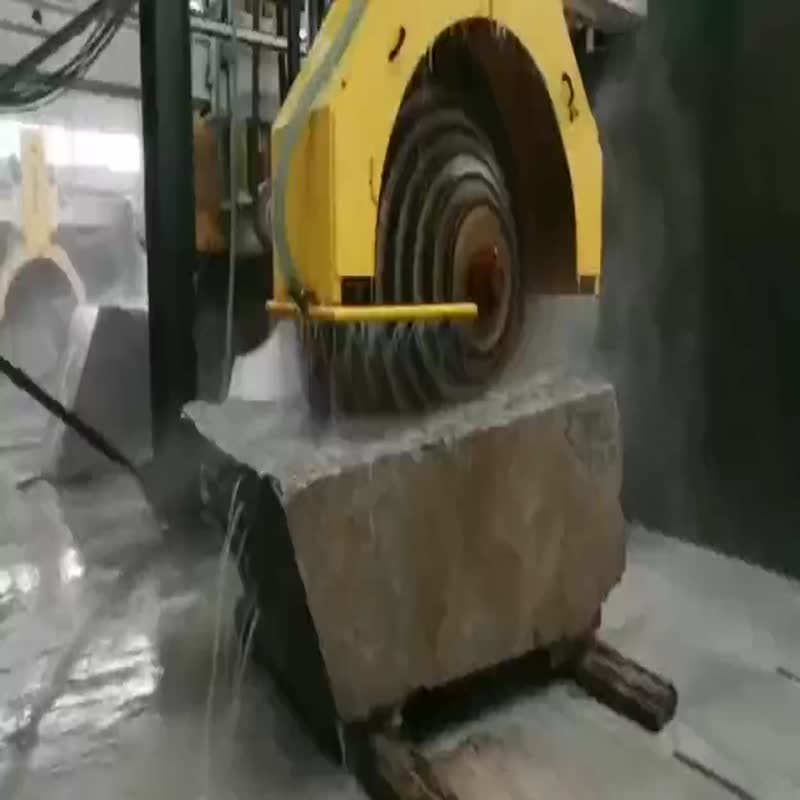

Work Example

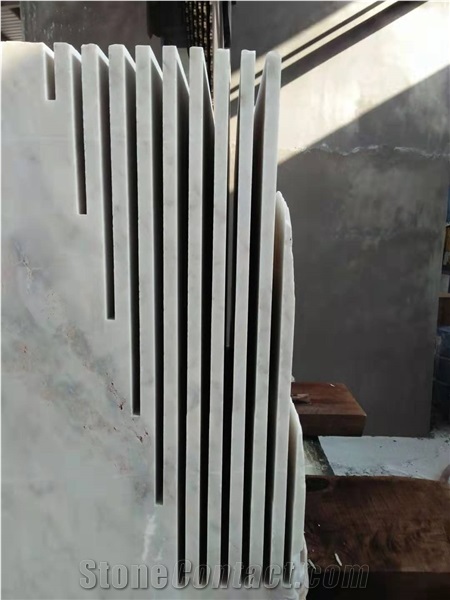

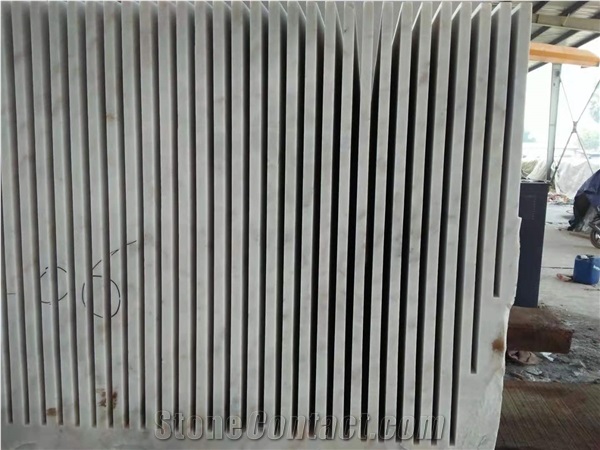

Processed Stone Photos

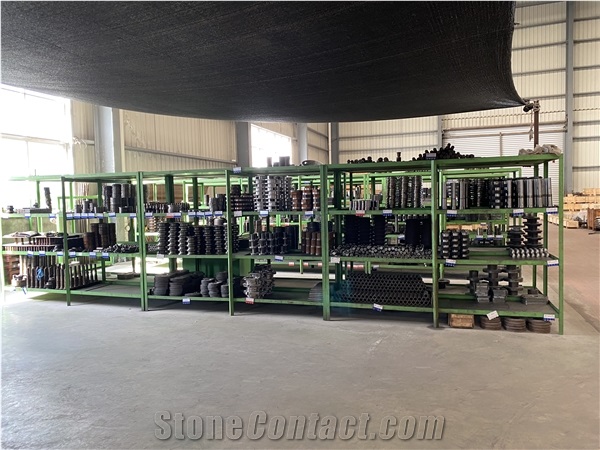

Components

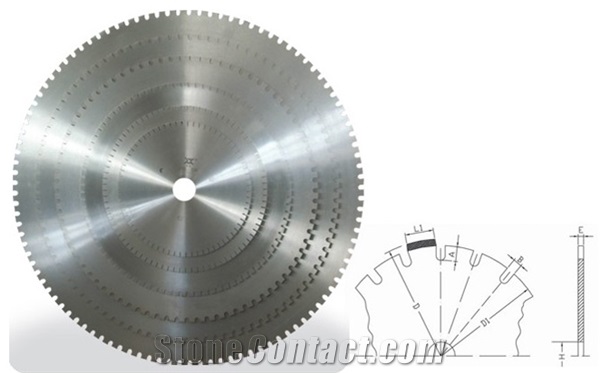

Consumables

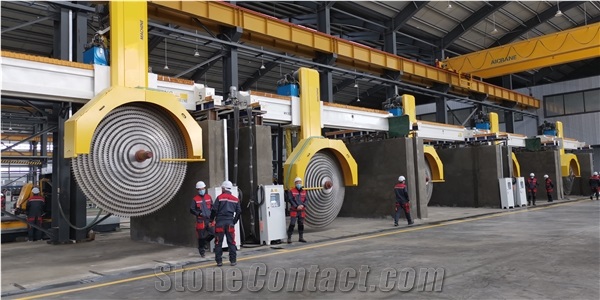

Customer Case
