High Speed Single Blade Bridge Saw Middle Block Stone Cutting Machine

Name: High Speed Single Blade Bridge Saw Middle Block Stone Cutting Machine
Brand: FUJIAN JOBORN MACHINERY CO.,LTD.
SKU: 6623
Price: 25000 USD
Availability: InStock

FOB Price:$25000-28000

Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25~30 days after prepayment received

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

China level 4YR

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

SQC/MAX-1600-4D 4 Post Guide Combined Block Cutting Machine

QSQ Bridge Hydraulic Stone Cutter- Stone Block Cutting Machine

Gantry Type Of Block Squaring/Trimming Machine

Hydraulic Type Multi-Blade Granite Stone Block Cutting Machine

Giant Disc Saw Stone Block Cutter Block Cutting Machine - Max 26 Blade

Product Detail
Company Profile

Overview
Components
Video

Machinery Function Features

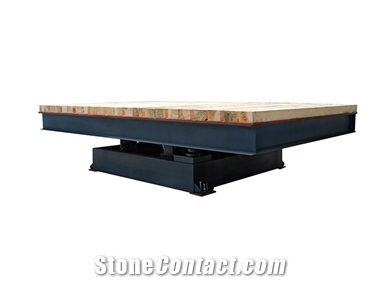

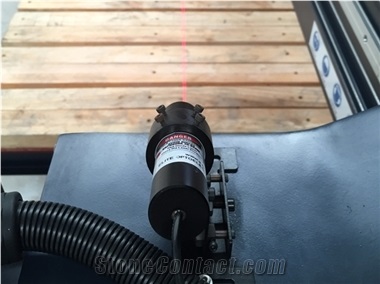

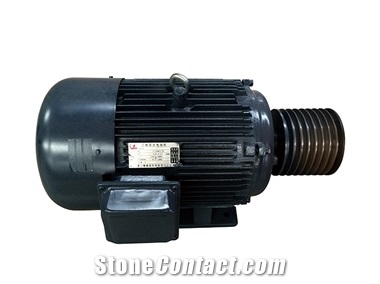

Main Feature: 1.Super-heavy type working platform.The platform uses heavy large size profiles welding together,larger than the table in market,with more durable; 2.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly，works more stable; 3.Humanized human-computer interaction interface.User-friendly interface,with more simple operation,easy to use; 4.Inovance inverter, feeding more stable; imported or domestic premium brand electric components,with lower failure rate, help you to worry less and save more labor; 5.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more; 6.Using permanent magnet synchronous motors(servo motors) for left and right walking and front and rear slicing. Compared with the current ordinary three-phase asynchronous motor,the speed increased 2 times for the retraction of front & rear splitting and the left & right walking,it makes the cutting much more efficiency; 7.High quanlity standard exported laser device, with longer service life and more lasting brightness;

Technical Data

Parameters	Unit	SQC1200-4D Pro	SQC1400-4D Pro	SQC1600-4D Pro
Maximum block length	mm	2950	2950	2950
Machine length(front)	mm	6200	6200	6200
Vertical disc diameter	mm	1200	1400	1600
Maximum block width	mm	1950	1950	1950
Average level of sound power	dB	80	80	80
Installed power	kw	36	36	36
Max. cutting depth	mm	450	550	650
Cooling water (1.5 bar pressure)	m3/h	5	5	5
Vertical disc motor power	kw	30	30	30
Machine width	mm	4800	4800	4800
Approximate Weight	Kg	7200	7400	7600
Machine height	mm	4200	4400	4600
Disch vertical stroke ( Z axis)	mm	850	850	850
Maximum block height	mm	450	550	650

Software

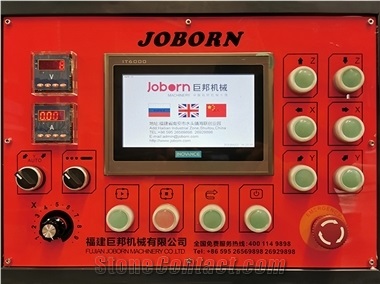

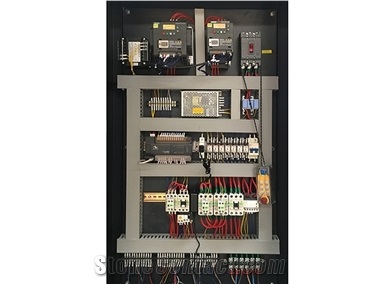

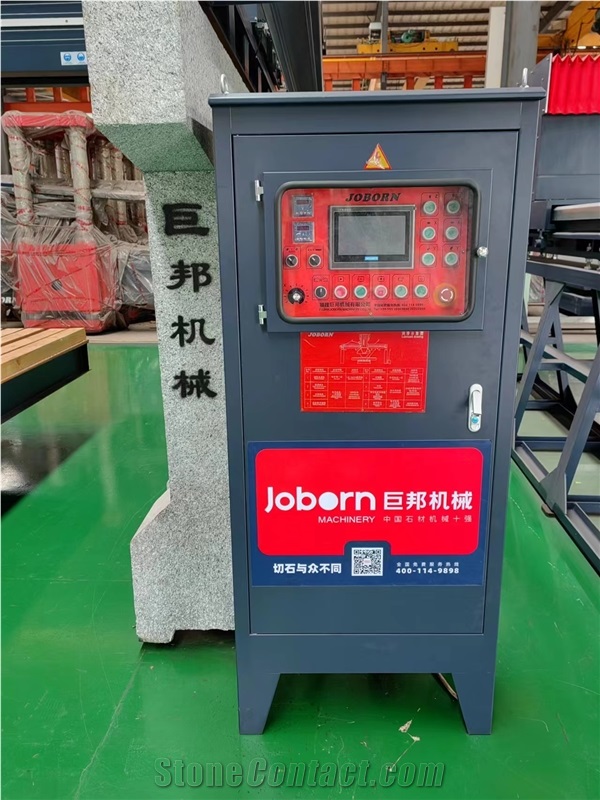

This machine adopts the PLC control system, floor type electric control cabinet, LCD touch screen (7 inches) using Chinese, English, Russian, Arabic, with the best human-computer interaction interface, the operation interface is a combination of touch screen and mechanical button to control the interface, input operating parameters through interface (including cutting size specification, moving speed) Etc., plus wireless remote control, the cutting process is automated and programmed.

Work Example

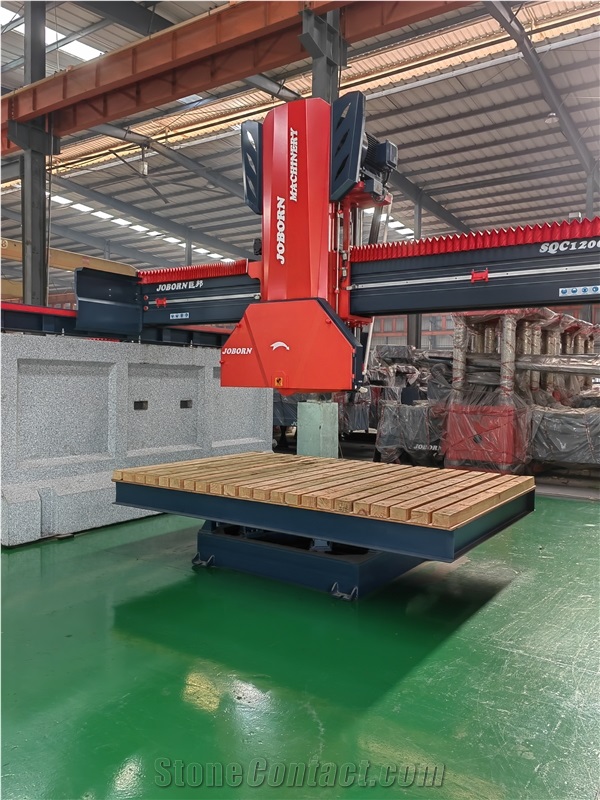

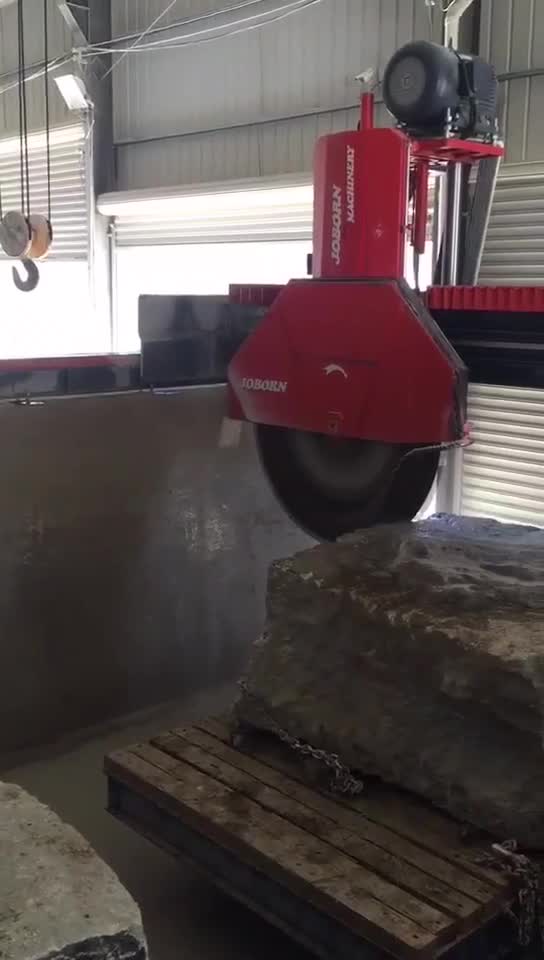

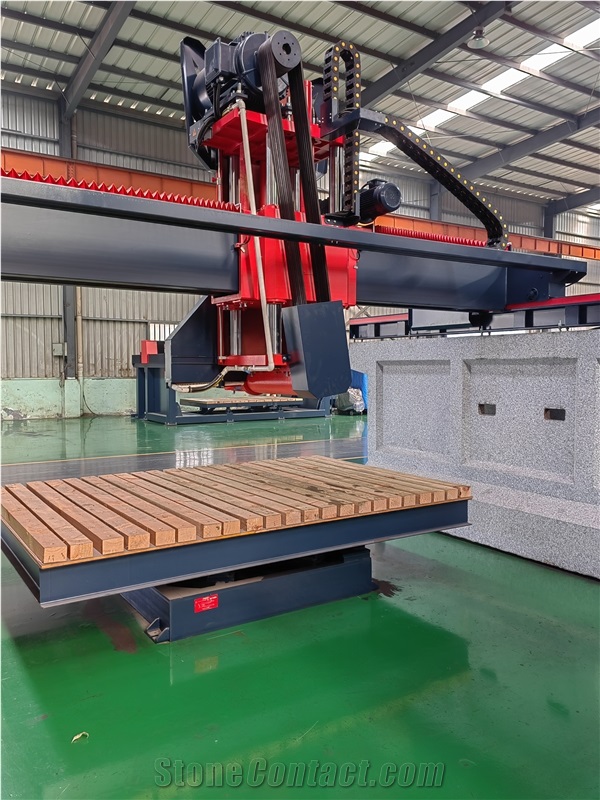

SQC1200/1400/1600-4D Pro middle block bridge cutting machine.This series machine adopts microcomputer control system and human-machine interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material.

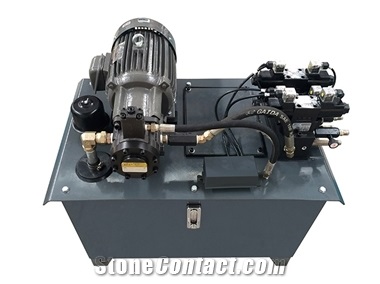

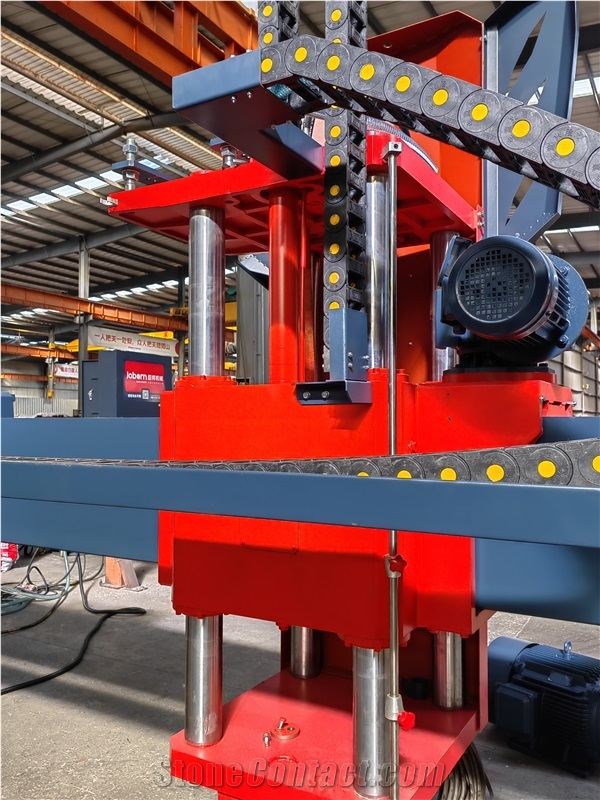

It uses hydraulic lifting system, combination of chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life, main motor uses brand energy-efficient motor, reduces the later using cost; worktable use super heavy large size profiles welding together, larger than the table in the market, with more durable.

Main parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy–operating to suit specially cutting special-shaped stone, tombstone and curbstone.

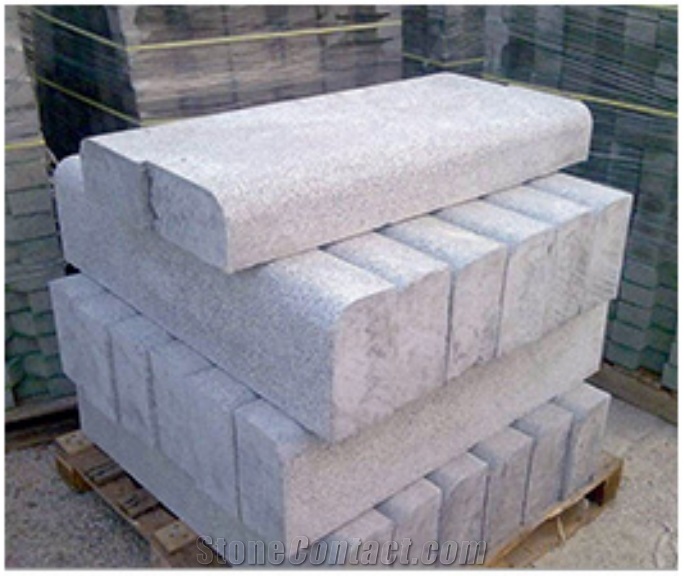

Processed Stone Photos
