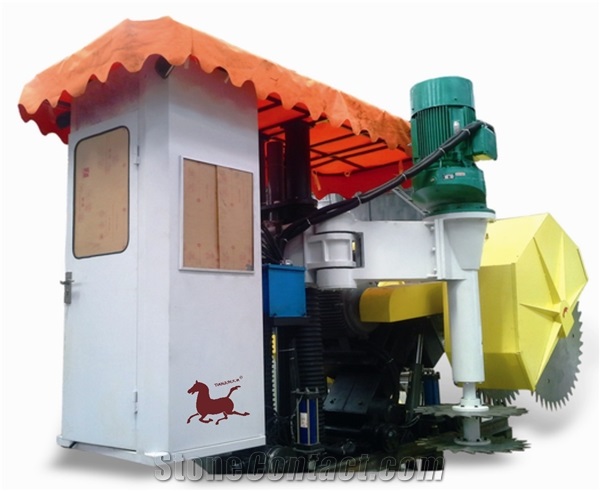

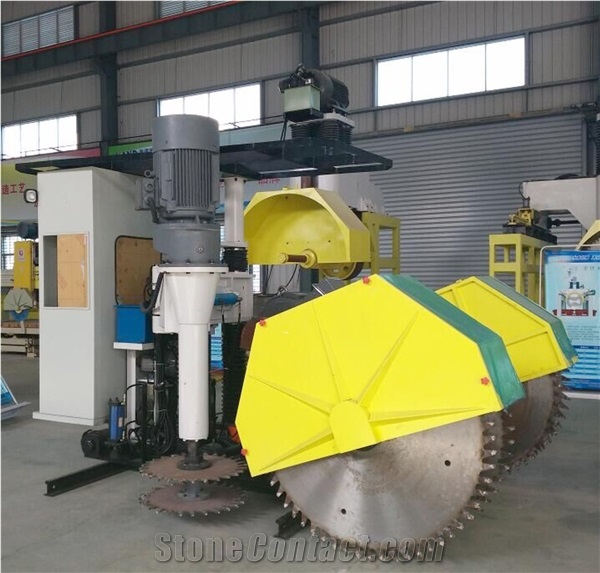

Horizontal And Vertical Sandstone Quarrying Machine
FOB Price:$31000-36000
Type:
Stone Quarry MachinesDouble Blade Mining Machine
Usage:
Sandstone
After-Sale
Lead Time:
Within 25-30 days after receive deposit
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Feb 26,2006
Main Product:
Quarry Machine;, Stone Cutting Machine, Stone Polishing Machine, Stone Crushing Machine, Other Machine, Stone Tools|
Machinery Function Features
Quantity Of Blade (pCs): 1-6
Diameter Of Blade (mm) 1400(vertical) +700 (horizontal )
Thickness Of Blade (mm) 12
Power Of Main Motor (vertical) kw 75
Power Of Main Motor (horizontal) kw 45
Total Power kw 130
Max. Lifing Stroke (mm) 950
Max. Moving Stroke Of Blade (mm) 240
Max.Cuting Depth (mm) 500
Max. Cutting Dimension (mm) 400X200X200 (adjustable)
Dimension (mm) 3600X2350X2600
Approximate Weight (kg) 7000
Quantity Of Vertical Blades pcs 4
Quantity Of Horizontal Blades pcs 2
Technical Data
Parameters |
Unit |
TJSN-1400 |
Max Moving Stroke of Blade |
mm |
240 |
Max. Cutting Depth |
mm |
500 |
Max Lifting Stroke |
mm |
950 |
Gross Weight |
Kg |
7000 |
Max Cutting Dimension |
mm |
400*200*200(adjustable) |
Thickness of Blade |
mm |
12 |
Quantity of Blade |
pcs |
1-6 |
Diameter of Blade |
mm |
Ø1400(vertical) and Ø700(horizontal) |
Total Power |
kw |
130 |
Dimension LxWxH |
mm |
3600*2350*2600 |
Power of Main Motor |
kw |
75(vertical) and 45(horizontal) |
Processed Stone Photos

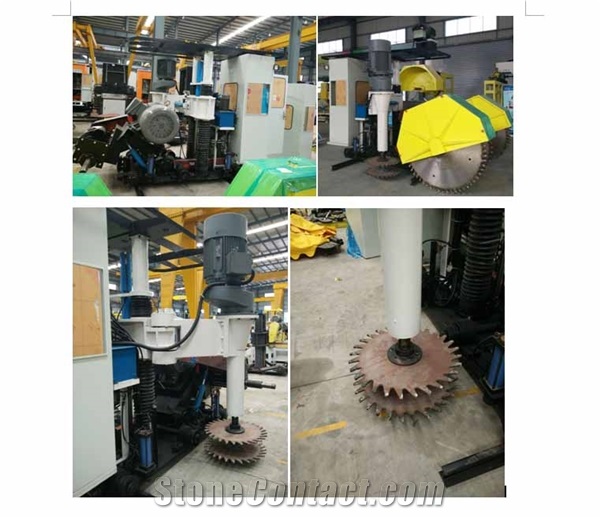

Components

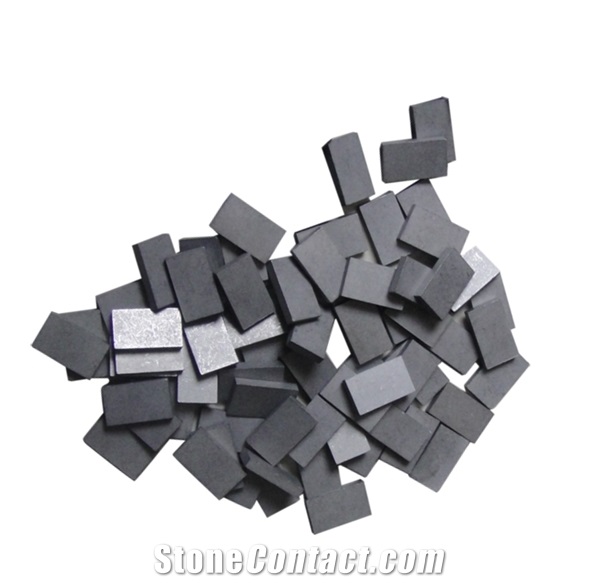

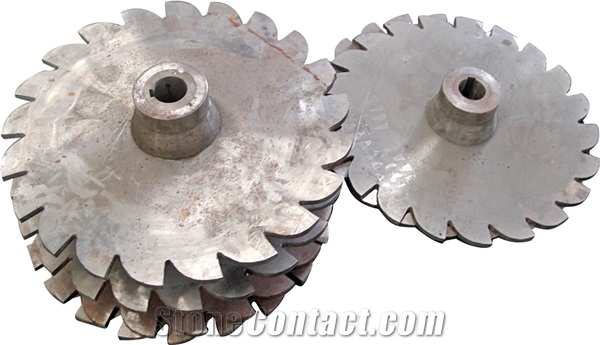

Consumables
Video
Operation Video
