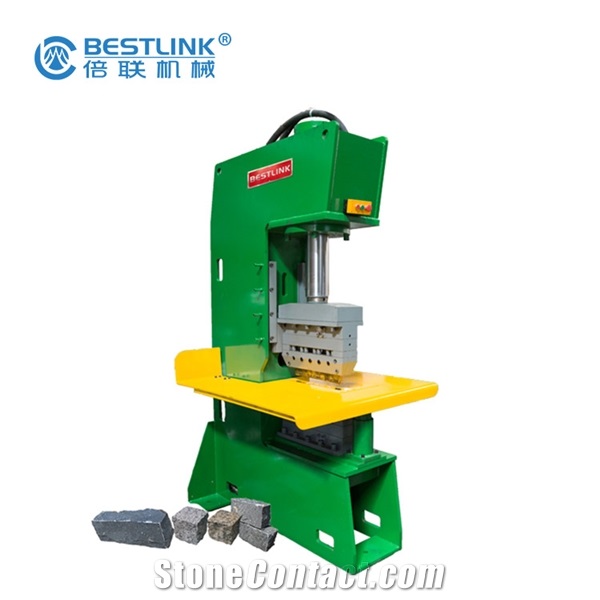

Hydraulic Stone Splitters And Stone Processing Machine

Name: Hydraulic Stone Splitters And Stone Processing Machine
Brand: XIAMEN BESTLINK FACTORY CO., LTD.
SKU: 5337
Price: 5000 USD
Availability: InStock

FOB Price:$5000-50000

Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine

Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone

After-Sale

Lead Time: 25-45 dyas

Warranty:12 Months

Install and Guarantee:Third-party team installation

Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

XIAMEN BESTLINK FACTORY CO., LTD.

BESTLINK

China

Eatablished :Dec 22,2000

Main Product:

Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|

Contact supplier

Start Order

You may also like

Stone Splitting Machine KSD-95Y

Hydraulic Stone Splitting Machine

Hydraulic Natural Stone Splitting Machine With Robot Arm

Nature Stone Spitting Machine For Granite Cobblestones Paving Stone

Stone Splitting Machine

Product Detail
Company Profile

Overview
Components
Video

Machinery Function Features

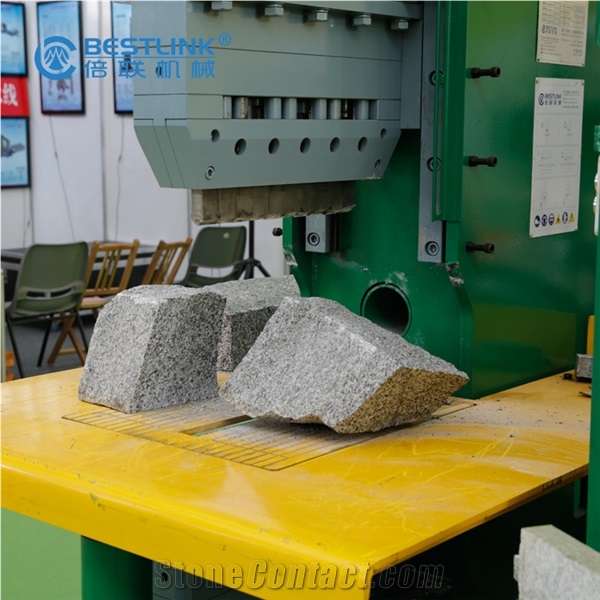

1. Hydraulic stone splitting machine can recyle granite or marble waste or left over from countertops making pavers for plaza, street, garden, etc. 2. Also it can split the stone into two pieces to make cladding stone and wall stones for natural faces. 3. It is a smart machine for granite fabricators to recycle the waste turning waste into gold.

Technical Data

Parameters	Unit	brt70ton
Max. working height	mm	350
Max. Pressure	tons	70
Main Motor Power	kw	11
Max. working width	mm	400
Machine length (L)	mm	1500
Machine width (W)	mm	1200
Machine height (H)	mm	2520
Approximate weight	Kg	3200

Software

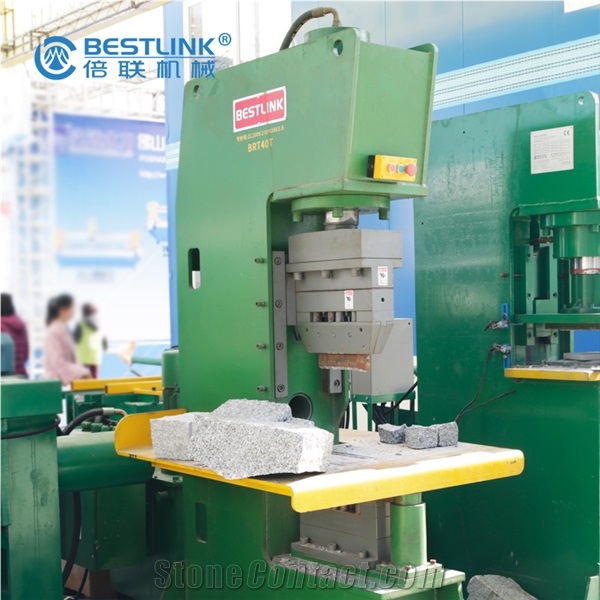

Model No.	BRT 320T-M	BRT 160T	BRT 70T	BRT 40T	BRT 20T
Splitting pressure	320T	160T	70T	40T	20T
Max.splitting width	1200mm	500mm	400mm	240mm	160mm
Max.splitting height	800mm	550mm	350mm	320mm	180mm
Adaption of upper /lower blade	36*20mm	30*15mm	20*10mm	15*10	10*7mm
Rated power	22KW	15KW	11KW	11KW	7.5KW
Rated voltage	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Electric current	42.5A	30A	22.6A	22.6A	15A
Main oil cylinder data	Φ400/Φ280-850	Φ280/Φ200-600	Φ200/Φ140-360	Φ160/Φ110-340	Φ110/Φ80-200
Oil advanced speed	40mm/s	76.6mm/s	108mm/s	167mm/s	96mm/s
Overall size(LWH)	237015003840mm	197012003300mm	150012002520	126010002300	114510002030
Weight	8000KG	5300KG	3200KG	2900KG	2300KG
