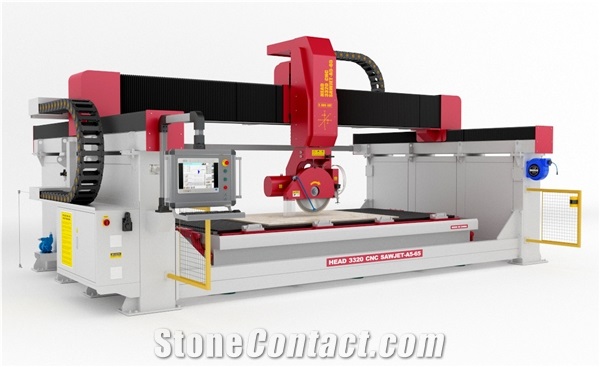

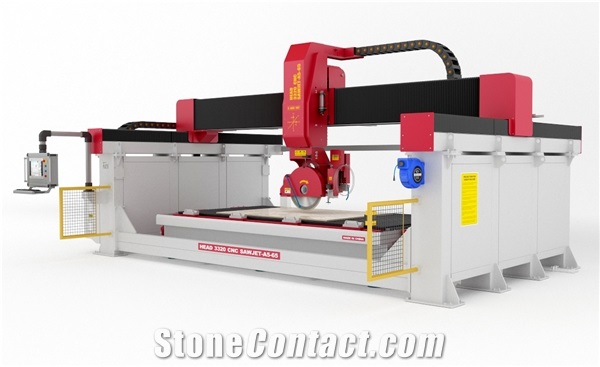

HEAD 3520 SAWJET Waterjet Saw Cutting Machine For Marble, Countertops
FOB Price:$95000-100000
Type:
Stone Factory MachinesStone Slab Cutting MachinesCombined 5 Axis Saw & Waterjet Cutting
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Dec 24,2009
Main Product:
Waterjet Cutting Machine, Waterjet Cutters, Water Jet Intensifier Pump, Water Jet Cutting Machine, Water Cutting Machine, Waterjet Saw Machine, Saw Jet Cutting Machine, Portable Waterjet Machine, Water Jet Cutters, Waterjet Parts，Waterjet Accessories|
Machinery Function Features

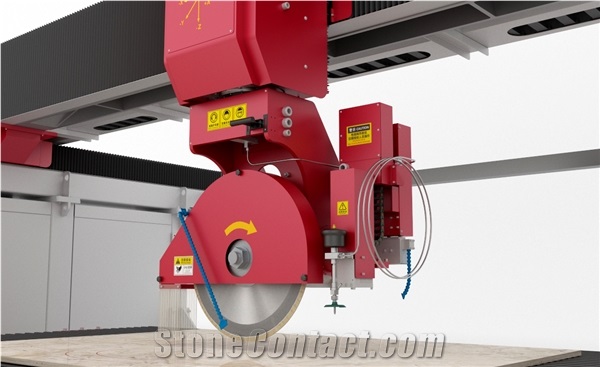

1. It can realize 45-degree chamfering and special-shaped cutting. Saw blade cuts straight lines, water jet cuts curves, and can be combined cutting- Increase efficiency by 20%
2. Automatic loading and unloading can be realized, and the stone type table board can be cut in one time- Save labor costs by 20%, 0 damage to the slabs
3. Customize the commonly used graphics library, which can be loaded with one key- Increase efficiency by 10%
4. The purchase cost is lower than the price of a five-axis bridge cutting machine and a five-axis waterjet- Save labor costs by 20%
5. China's first manufacturing for the machine. The best way for high-end home improvement industry
Technical Data
Parameters |
Unit |
HEAD 3520 SAWJET |
Pompa waterjet machine length |
mm |
3500（customized） |
Pompa waterjet machine height |
mm |
150（customized） |
Max. workable thickness with blade or waterjet |
mm |
200 |
Average level of equivalent sound power |
dB |
low |
Waterjet pump power |
kw |
37 |
Y-axis speed |
mm/min |
6000 |
C-axis rotation |
° |
360 |
Waterjet max. pressure |
Mpa |
420 |
X-axis speed |
mm/min |
6000 |
Max. worktable load capacity |
Kg |
（customized） |
A-C-axis rotating speed |
r/min |
6000 |
Overall machine width |
mm |
2000（customized） |
Approximate weight with table |
Kg |
as to machine |
Max. length of the cut slab |
mm |
3500（customized） |
Diameter of the blades that can be applied |
mm |
200（customized） |
Pompa waterjet machine width |
mm |
2000（customized） |
Waterjet pump capacity |
L/min |
3.7 |
A-axis rotation |
° |
65 |
Z-axis travel |
mm |
150（customized） |
Max. workable thickness with blade(Φ400) and waterjet |
mm |
200 |
Z-axis speed |
mm/min |
6000 |
Overall machine height |
mm |
150（customized） |
Overall machine length |
mm |
3500（customized） |
Capacity of the external tank for abrasive |
L |
96 |
Max. width of the cut slab |
mm |
2000（customized） |
Spindle motor power |
kw |
37 |
Work Example
Processed Stone Photos
-
countertop cutting
-
slab cutting
-
cutting sample
Components

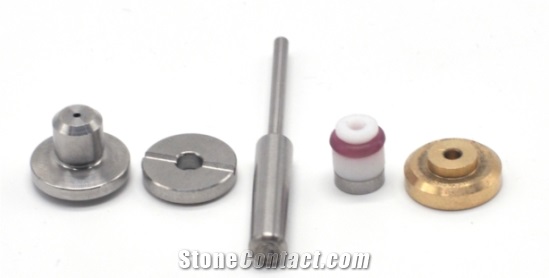

Consumables
Customer Case
Video
Install Video
Operation Video
