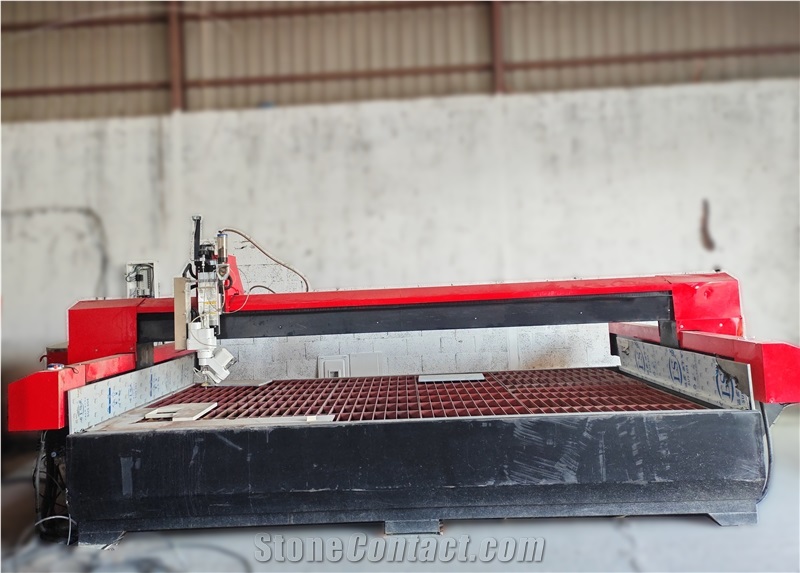

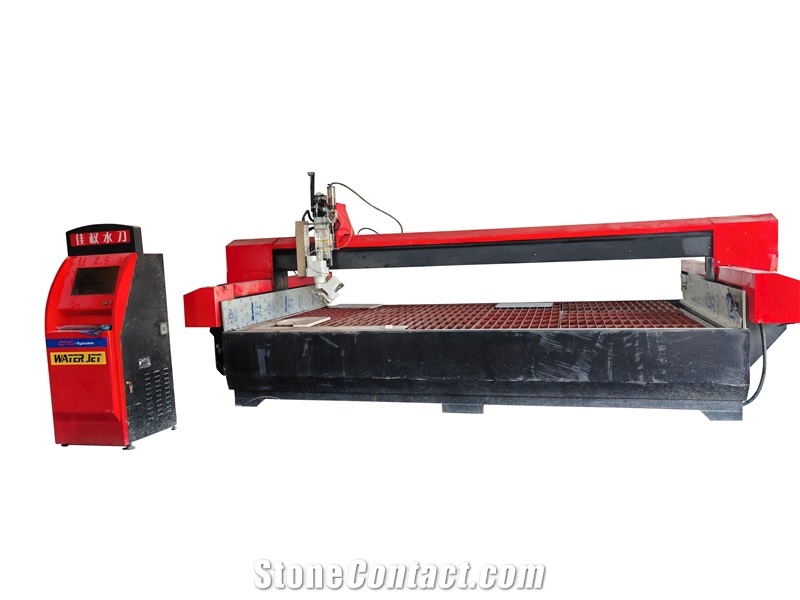

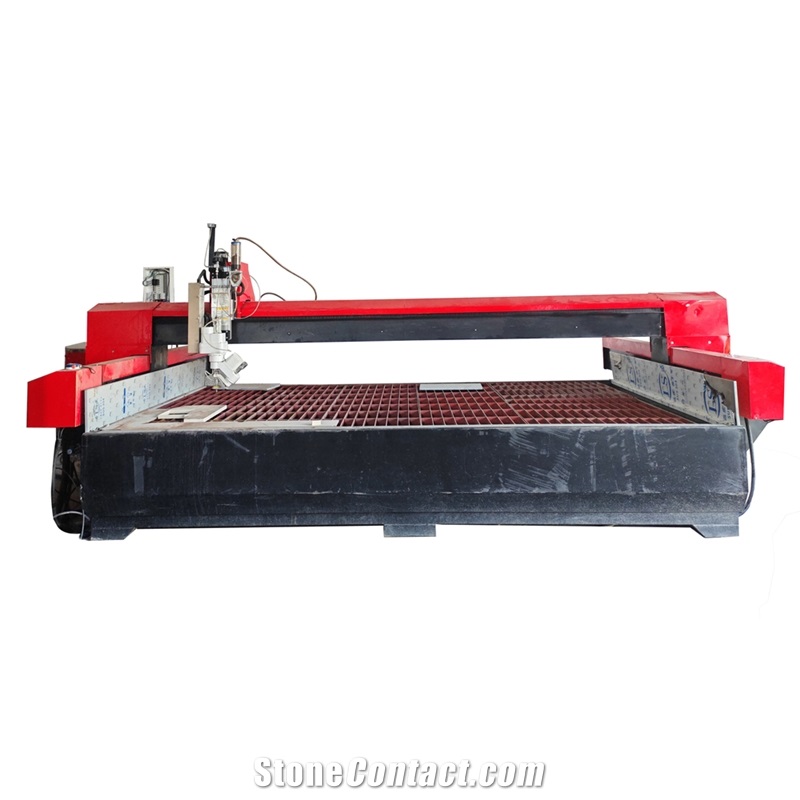

5 Axis CNC Precision Accurate High Pressure Stone Slab Waterjet Cutter

FOB Price:$32000-32000

Type: Stone Factory MachinesStone Slab Cutting MachinesCombined 5 Axis Saw & Waterjet Cutting
Usage: Granite, Marble, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 30 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

XIAMEN TYS MACHINE CO.,LTD

XIAMEN TYS MACHINE CO.,LTD

TYS MACHINERY

ChinaChina level1YR idicon

Eatablished :Jul 04,2018

Main Product:

Stone Mosaic Cutting Machine, Mosaic Polishing Machine, Mosaic Profile Machine, Marble Mosaic Machine, Stone Waste Recycle Machine, Strips Cutting Machine|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
  • Customer Case
Machinery Function Features

Advantages of this waterjet cutter

1. The smooth cutting quality is flawless.

2. Cutting precision reaches up to 0.1mm. Edge joints are uniform, and the water-cooled cutting system enables intricate jigsaw puzzles and murals.

3. Cutting speed is exceptionally fast, with outstanding product consistency and interchangeability.

4. Drilling, cutting, and forming can be performed simultaneously in a single operation.

5. Improves the work environment by reducing dust and noise exposure for operators.

6. Cold cutting process preserves material integrity without damaging internal structure.

7. Capable of processing composite materials and fragile ceramics.

8. Cutting tools handle metals, rubber, foam, plastics, composites, stone, ceramic tiles, marble, glass, and more.



Regarding dimensions, we offer 4000*2000mm, 3000*2000mm, 2000*1500mm, 2500*1500mm, 6000*2000mm, etc.

Technical Data
Parameters
Unit
JN4020AC
Capacity of the external tank for abrasive
L
200
Overall machine length
mm
4200
Waterjet max. pressure
bar
4500
Max. length of the cut slab
mm
4000
Max. width of the cut slab
mm
2000
Max. workable thickness with blade or waterjet
mm
150
Waterjet pump power
kw
37
Waterjet pump capacity
L/min
120

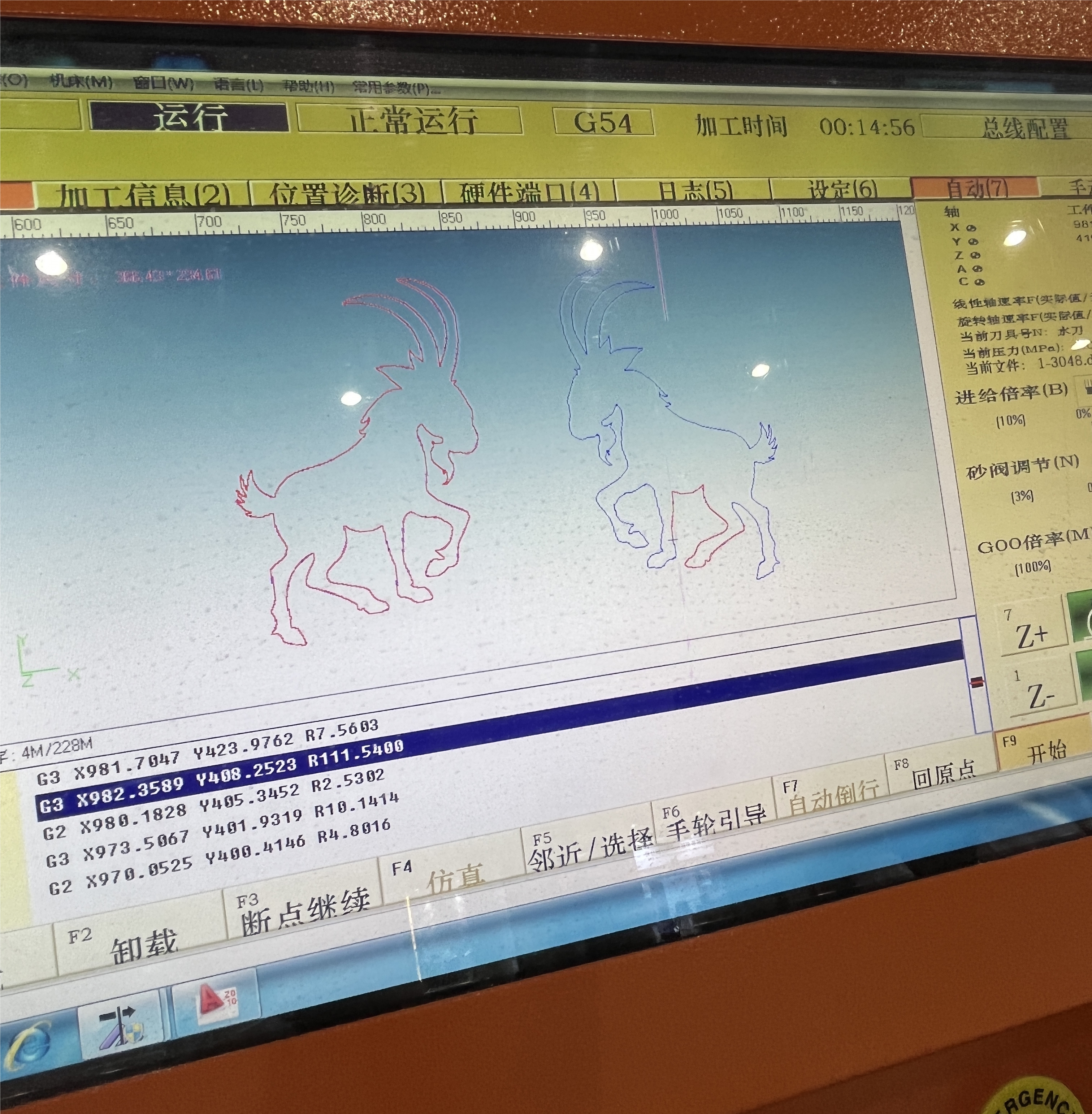

Software

Work Example

The waterjet cutting machines achieve cold cutting by harnessing the kinetic energy of abrasives combined with ultra-high-pressure water jets. The core principle involves pressurizing water to 200-60,000 PSI (approximately 1,379-4,137 bar), which is then forced through a tiny nozzle to create a high-velocity jet, enabling rapid and precise cutting.

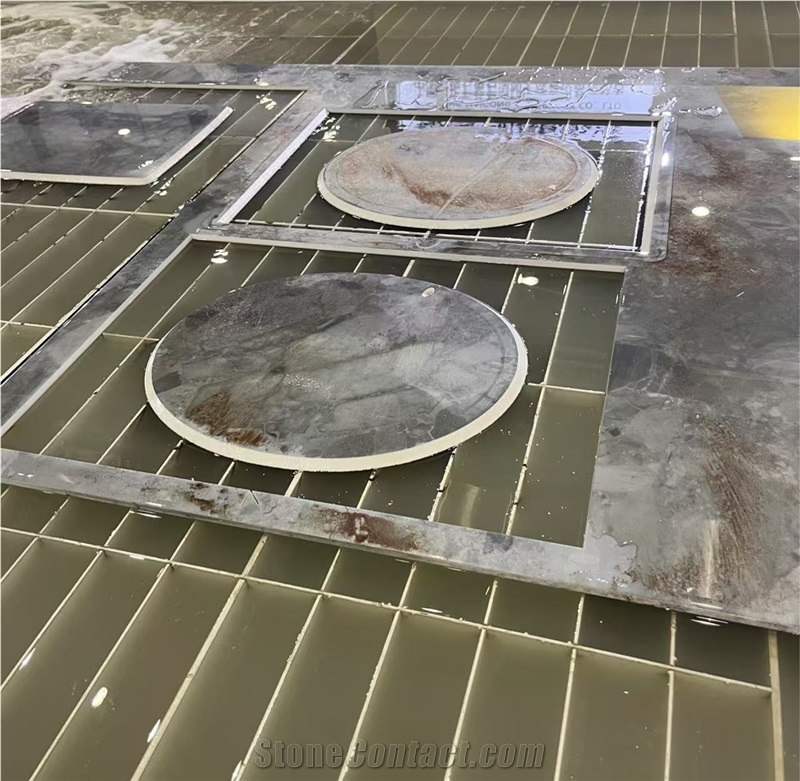

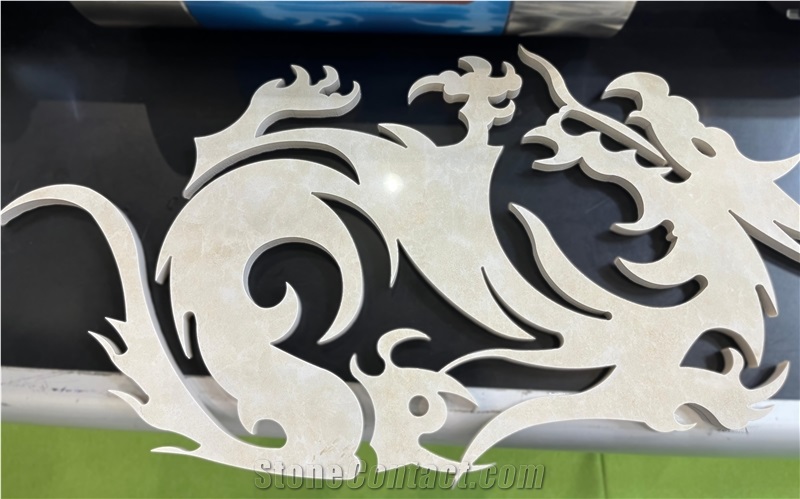

Processed Stone Photos
  • sample1

    sample1

  • sample2

    sample2

Components

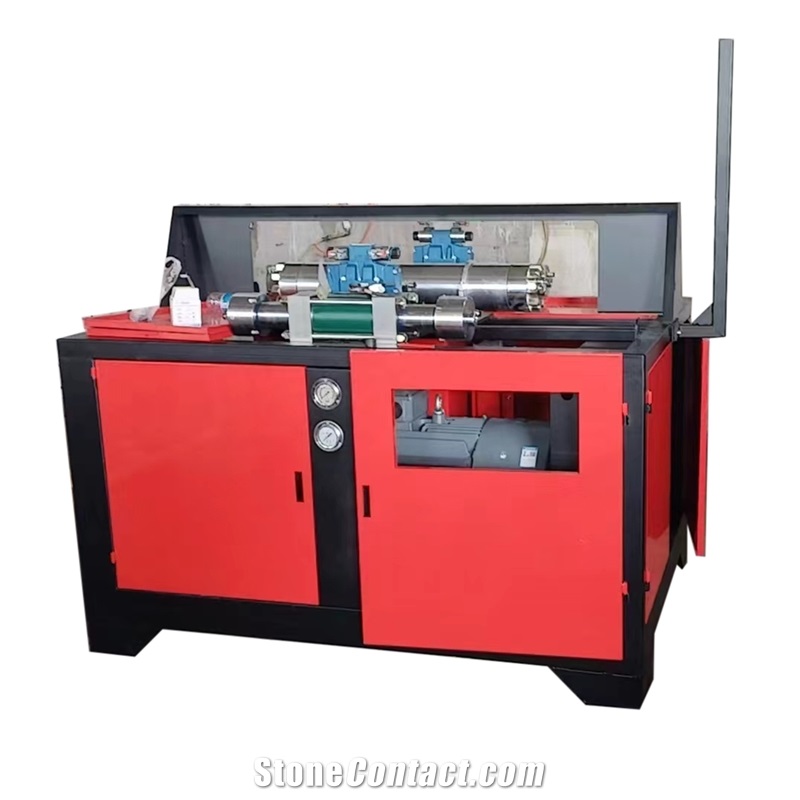

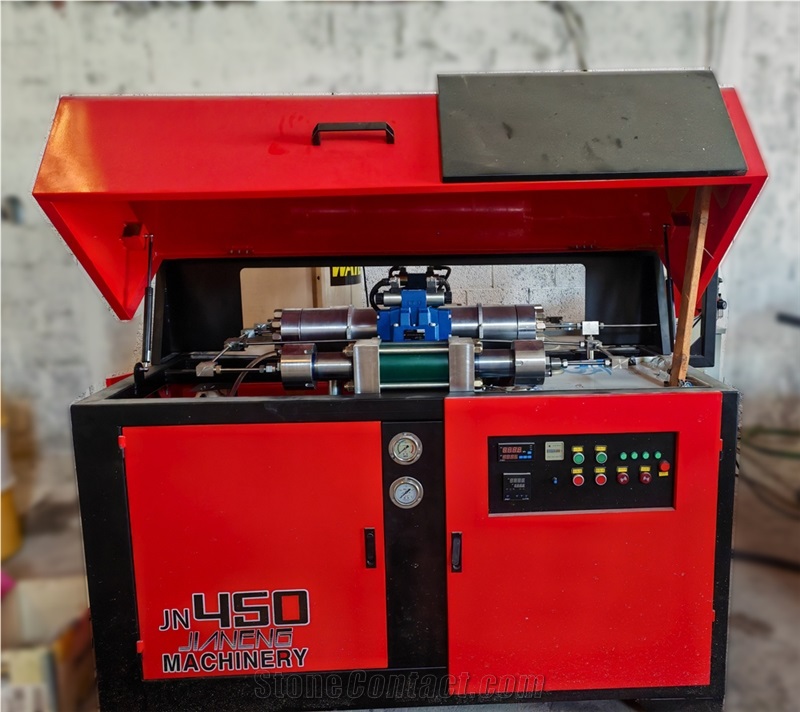

  • High Pressure bump

    High Pressure bump

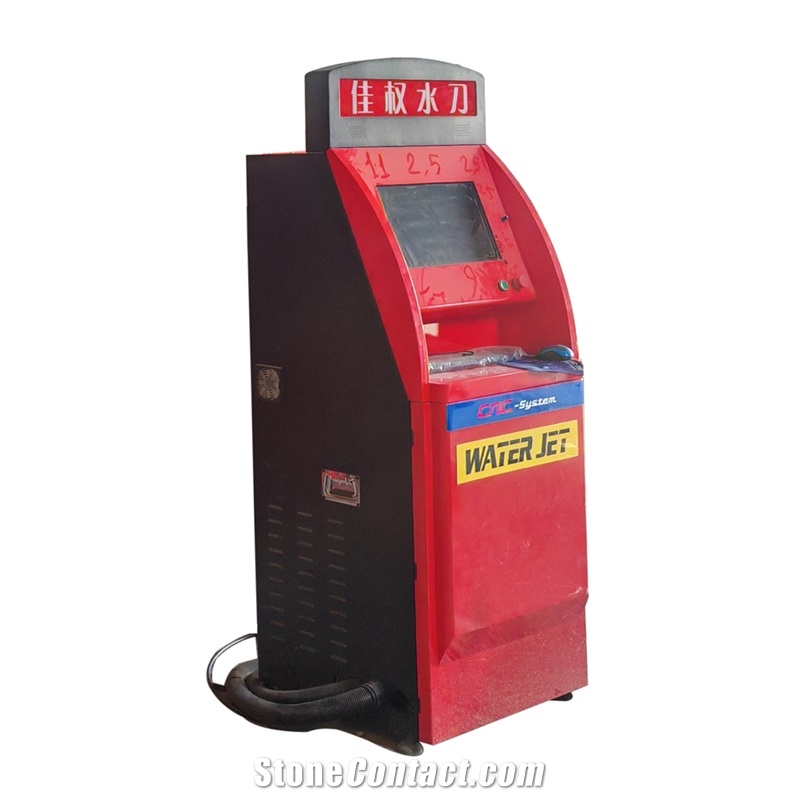

  • CNC controller

    CNC controller

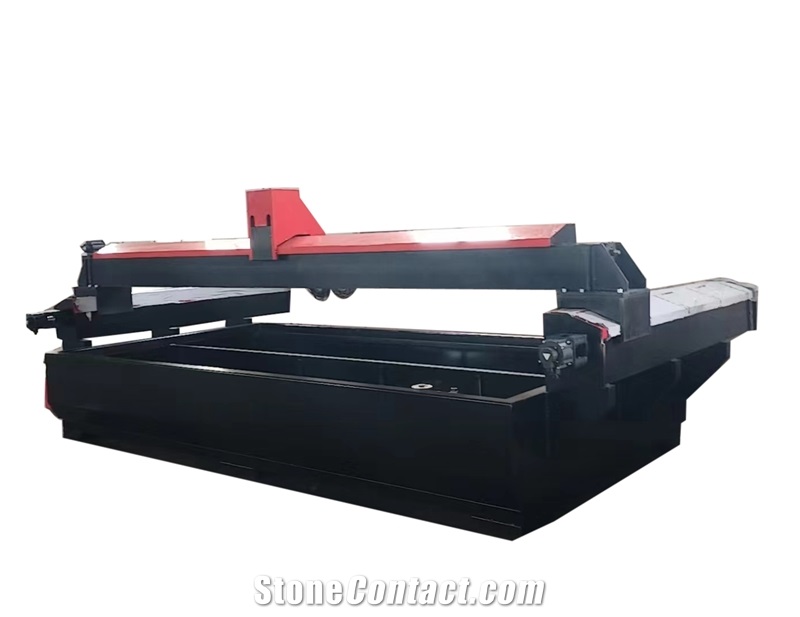

  • main machine

    main machine

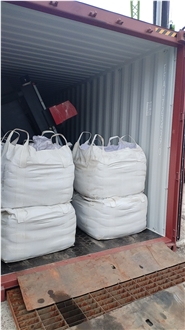

Consumables

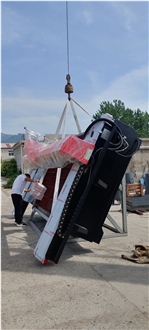

Customer Case
Video
Install Video
Operation Video Screen.PrimaryScreen.Bounds.Height
