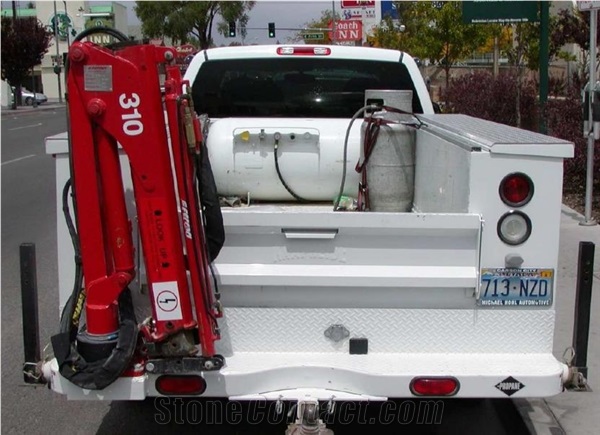

Ferrari Crane 310
FOB Price:
Type:
Stone Factory MachinesStone Handling, Loading MachinesJib Arm/U Type Container Loader
Usage:
Granite, Marble, Limestone, Artificial Stone, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Jan 03,1949
Main Product:
Saw Blades, Safety Working Tools, Clamps Working Tools, Stone Machines, Cnc Engraving Machines, Epoxy Resins|
Machinery Function Features
Max dynamic moment [daNm]
Momento Massimo Dinamico 1154
Version Qmax
Max capacity [kg] A1 860
Portata Massima [kg] A2 800
Version STD
Crane weight [kg] A1 145
Peso della gru [kg] A2 175
Max force on the standard stabilizer leg
Massima reazione sul cilindro stabilizzatore
888 DaN
1314 DaN
Max standard stabilizer pressure on the ground (D=110mm)
Massima pressione appoggio sul terreno (D=150mm)
9.3 daN/cm2
7.4 daN/cm2
Max working pressure
Massima pressione di lavoro 180 bar
Max oil flow to main relief valve
Massima portata di olio al distributore 5 dm3
/min
Oil tank capacity
Capacità del serbatoio dell’Olio 17.5 dm3
Slewing moment
Coppia di Rotazione 170 daNm
Slewing angle
Angolo di rotazione 328°
Absorbed power
Potenza assorbita
1.5 kW
2 HP
Design standard
Normative di progettazione
DIN 15018
EN 12999
Technical Data
Parameters |
Unit |
F310- A1 |
F310- A2 |
Slewing moment |
daNm |
170 |
170 |
Load Capacity |
Tonnes |
0.86 |
0.8 |
Max working pressure |
bar |
180 |
180 |
Max force on the standard stabilizer leg |
DaN |
888 |
1314 |
Max standard stabilizer pressure on the ground (D=150mm) |
daN/cm2 |
7.4 |
7.4 |
Max standard stabilizer pressure on the ground (D=110mm) |
daN/cm2 |
9.3 |
9.3 |
Oil tank capacity |
dm3 |
17.5 |
17.5 |
Max oil flow to main relief valve |
dm3 /min |
5 |
5 |

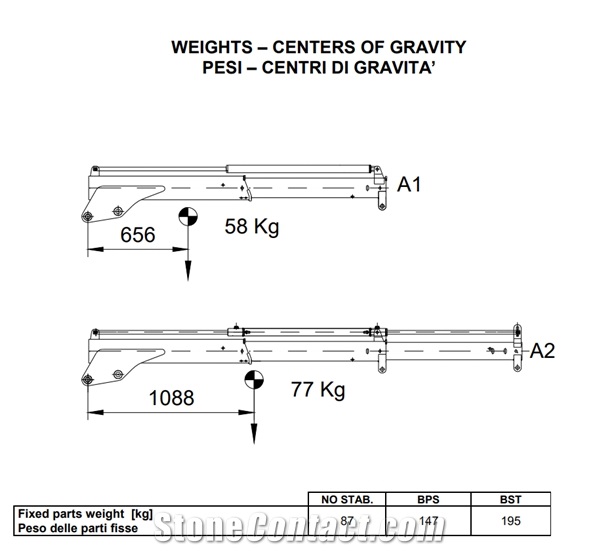

Crane weight |
kg |
145 |
175 |
Slewing angle |
° |
328° |
328° |
Max dynamic moment |
daNm |
1154 |
1154 |
Absorbed power |
kW |
1.5 |
1.5 |
Design standard |
DIN 15018 EN 12999 |
DIN 15018 EN 12999 |
