Ferrari Crane 322

Name: Ferrari Crane 322
Brand: Weha Ludwig Werwein GmbH
SKU: 5502
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Handling, Loading MachinesJib Arm/U Type Container Loader

Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

Weha Ludwig Werwein GmbH

Ferrari Crane

Germany

Eatablished :Jan 03,1949

Main Product:

Saw Blades, Safety Working Tools, Clamps Working Tools, Stone Machines, Cnc Engraving Machines, Epoxy Resins|

Contact supplier

Start Order

You may also like

Forklift Boom C Container Loading- Unloading

Forklift Boom FB4-4800

Telescopic Crane For Slab Loading And Unloading

U-Shape Handler-C - U Type Container Loader

Forklift Boom 25 / Stone Lifter Boom / Slab Boom

Product Detail
Company Profile

Overview

Machinery Function Features

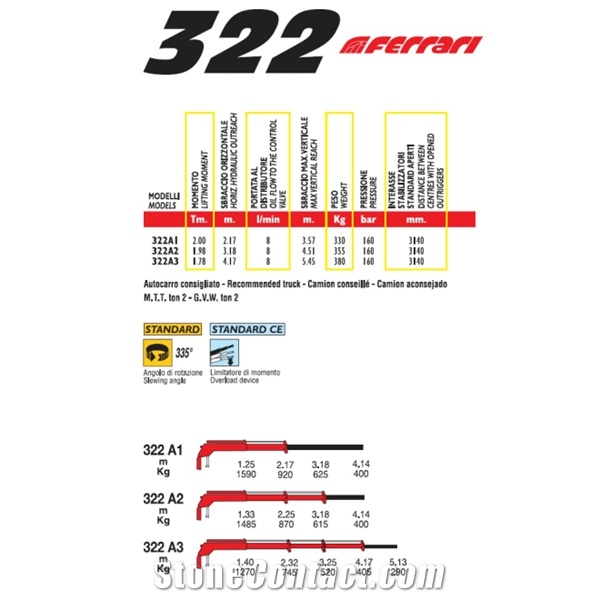

Ferrari Crane 322 TECHNICAL DATA DATI TECNICI Max dynamic moment [daNm] Momento Massimo Dinamico 2405 Version Qmax Max capacity [kg] A1 1590 Portata Massima [kg] A2 1485 A3 1270 Version STD Crane weight [kg] A1 216 Peso della gru [kg] A2 243 A3 265

Technical Data

Parameters	Unit	322 - A1	322 - A2	322 - A3
Oil tank capacity	dm3	17.5	17.5	17.5
Max standard stabilizer pressure on the ground	daN/cm2	19.5	19.5	19.5
Slewing angle	°	335°	335°	335°
Max dynamic moment	daNm	2405	2405	2405
Max oil flow to main relief valve	dm3 /min	8	8	8
Absorbed power	kW	2.1	2.1	2.1
Max working pressure	bar	160	160	150
Design standard		DIN 15018 EN 12999	DIN 15018 EN 12999	DIN 15018 EN 12999
Crane weight	Kg	216	243	265
Slewing moment	daNm	350	350	350
Load Capacity	Tonnes	1.590	1.485	1.270
Max force on the standard stabilizer leg	DaN	1850	1850	1850
