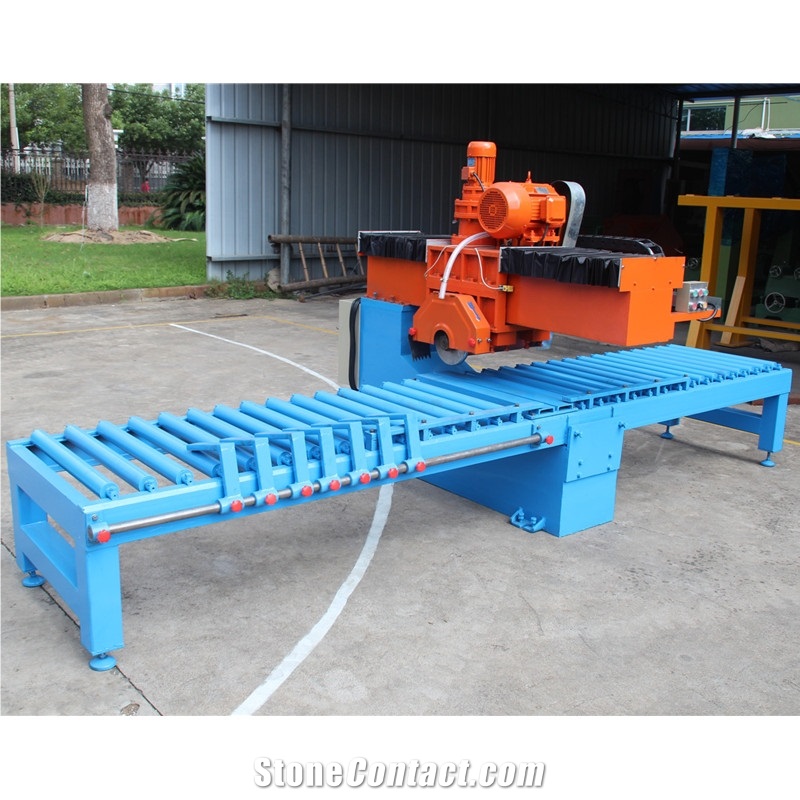

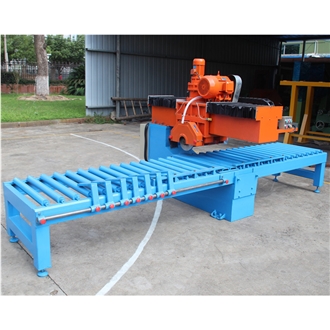

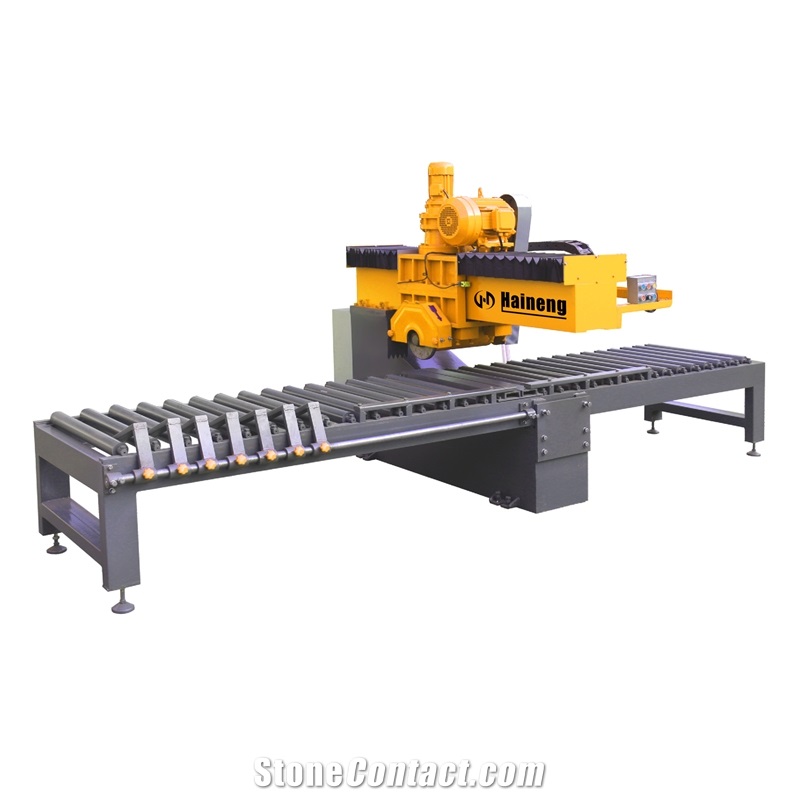

Cross Stone Cutter - Single Disc Cutting Machine
FOB Price:$5500-5800
Type:
Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
One-piece structure, convenient transportation, no need to make cement foundation, small footprint and easy installation.
The cutting speed is controlled by frequency conversion, which is easy to operate. The unique head and guide design makes the cutting quality higher and faster. The platform is reasonable in design and easy to adjust, which is very suitable for cutting small plates and strips. The imported components and finishing accessories have low failure rate, are not easy to deform, and extend the service life of the machine.
Technical Data
Parameters |
Unit |
DH600 |
Discs number |
nr |
1 |
Max. cutting length |
mm |
4000 |
Machine width (W) |
mm |
2000 |
Discs diameter |
mm |
350 |
Machine length (L) |
mm |
4000 |
Maximum workable thickness |
mm |
60 |
Total power |
kw |
8.25 |
Approximate weight |
Kg |
1350 |
Power of main motor |
kw |
7.5 |
Machine height (H) |
mm |
1800 |
Max. workable material width |
mm |
700 |

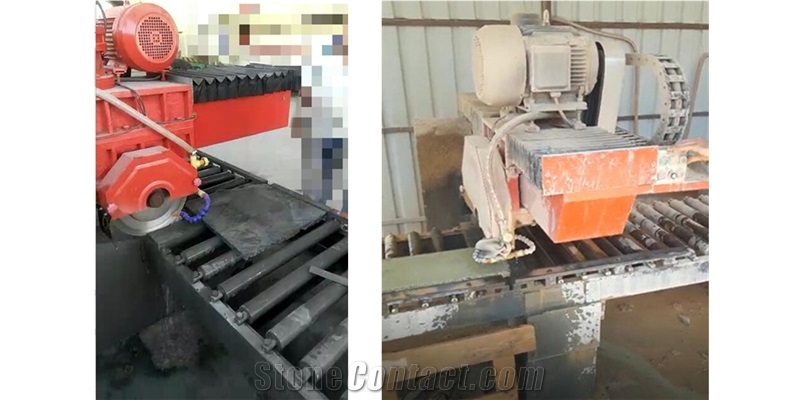

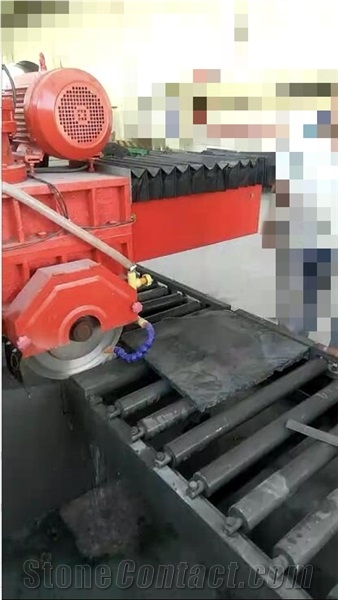

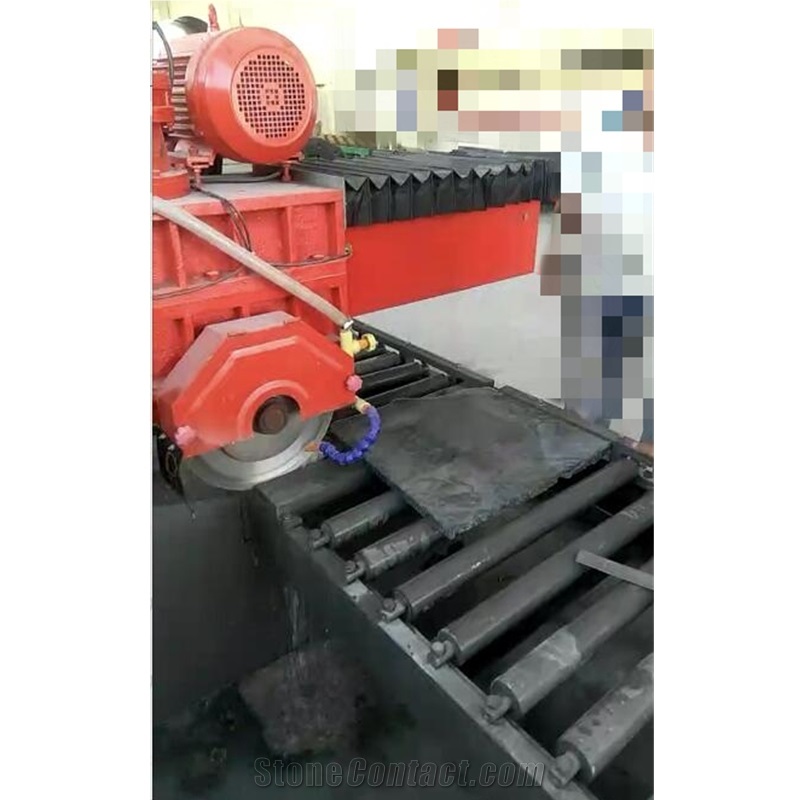

Processed Stone Photos
Components
-

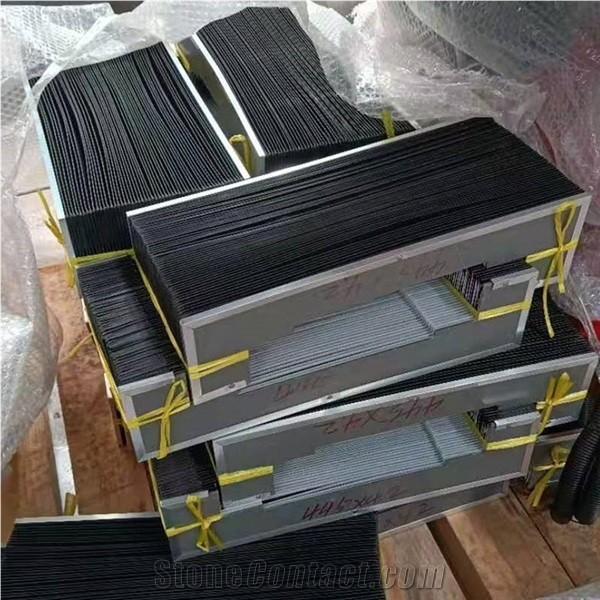

dust cover
¥Payment Required
Consumables
-
Saw blade
350mm
Video
Install Video

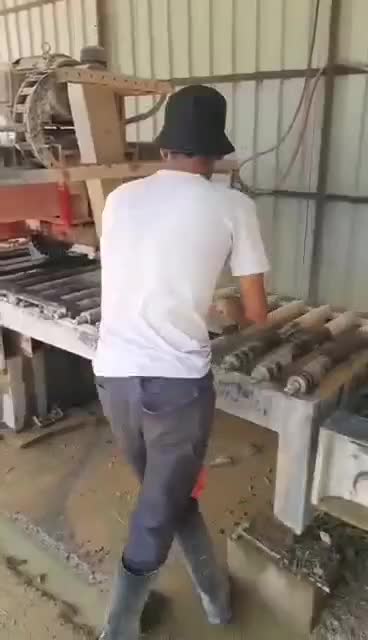

Operation Video
