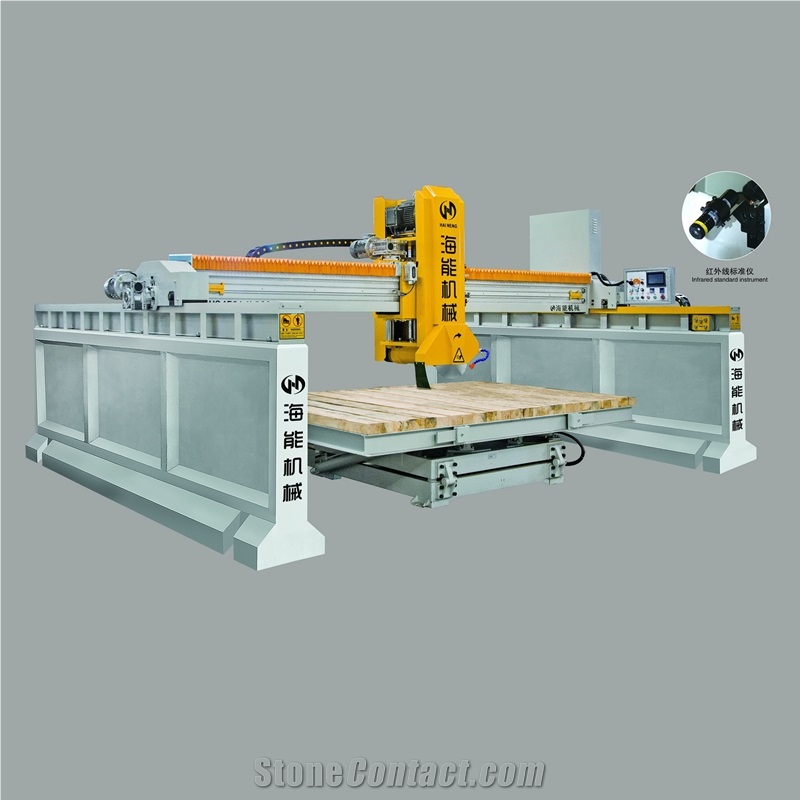

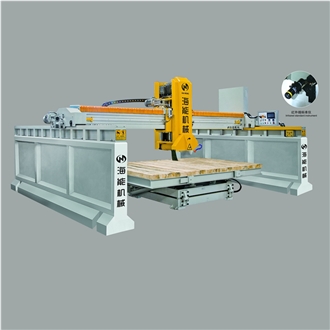

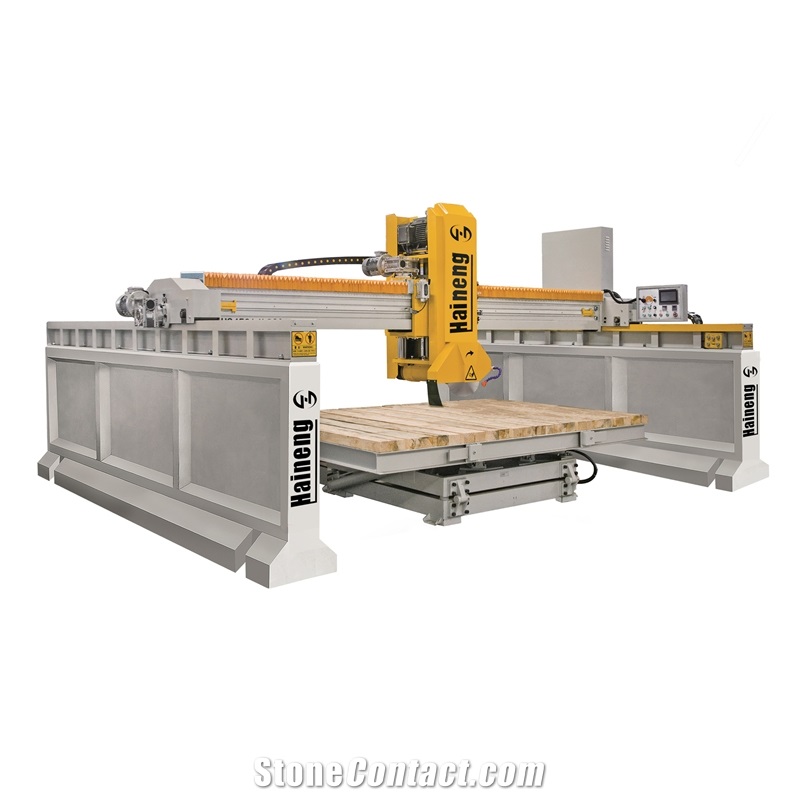

Infrared Servo High Efficiency Bridge Cutting Machine
FOB Price:$18000-21000
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
15 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
This machine adopts servo system control, touch operation interface and wireless remote control, which makes the man-machine dialogue flexible.
The main control components are all international brand-name components. The vertical segmentation mechanism adopts international famous brand linear guides and high-precision magnetic count to ensure the cutting precision of the machine.
The machine working fast and is especially suitable for cutting high-value, high-precision, medium and large-sized slabs, angles, octagons,arcs, and circles.
Technical Data
Parameters |
Unit |
HQ450AS |
HQ600AS |
HQ700AS |
HQ800AS |
Machine height |
mm |
3000 |
3200 |
3400 |
3600 |
Working table dimensions(L×W) |
mm |
3200×2000 |
3200×2000 |
3200×2000 |
3200×2000 |
Blade diameter |
mm |
350-450 |
350-600 |
350-700 |
500-800 |
Working table rotating angle |
° |
0-90/360 |
0-90/360 |
0-90/360 |
0-90/360 |
Machine length |
mm |
6000 |
6000 |
6000 |
6000 |
Total power |
kw |
21 |
24.5 |
24.5 |
24.5 |
Max. vertical stroke |
mm |
230 |
380 |
480 |
580 |
Machine weight |
kg |
5400 |
5600 |
5800 |
6000 |
Machine width |
mm |
4800 |
4800 |
5000 |
5000 |
Main motor power |
kw |
15 |
18.5 |
18.5 |
18.5 |
Water consumption |
m³/h |
4 |
4 |
4.5 |
4.5 |
Working table tilting angle |
° |
0-85 |
0-85 |
0-85 |
0-85 |

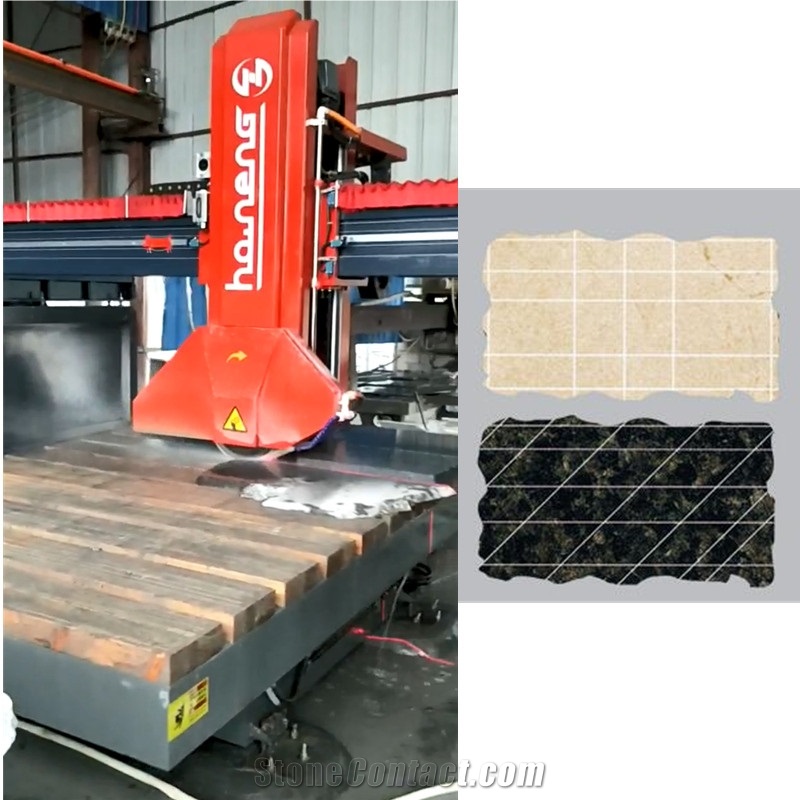

Processed Stone Photos

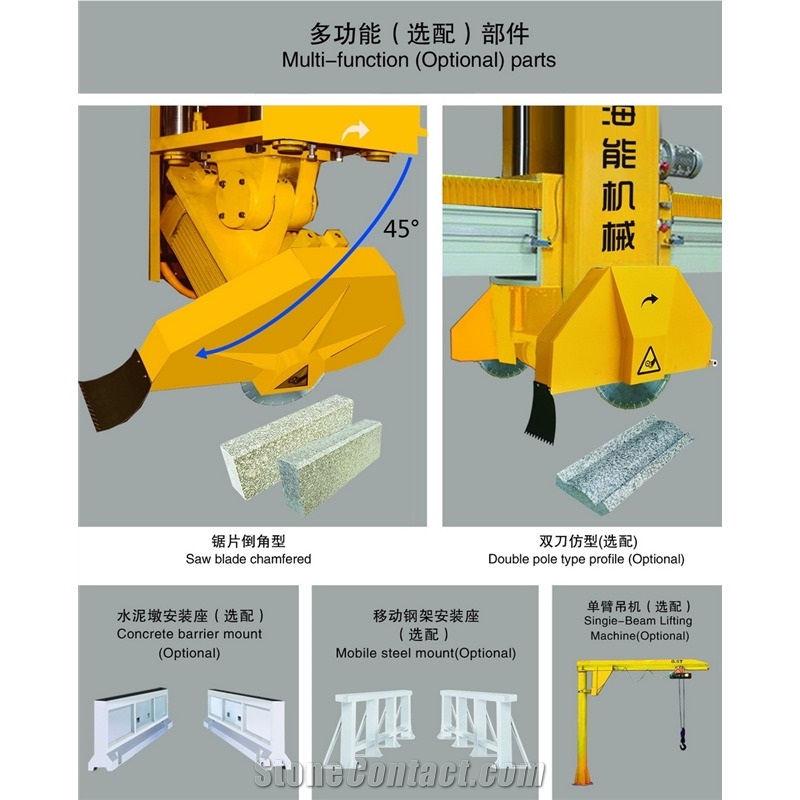

Components
-

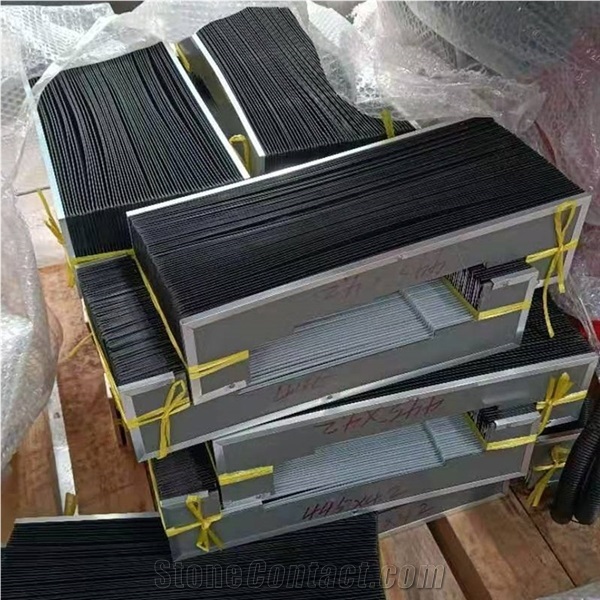

Crossbeam dust cover
¥Payment Required
Consumables
-

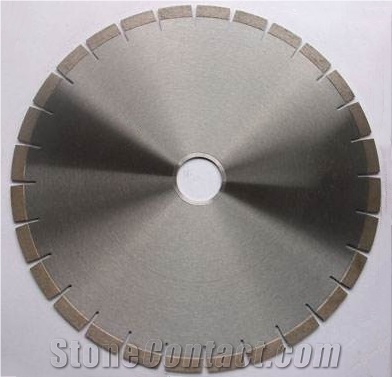

Saw blade
350-800mm
Video
Install Video
Operation Video
