Double Head Stone Bridge Cutting Machine

FOB Price:$24000-25500

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 30 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Eatablished :Apr 13,2017

Main Product:

Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features

This stone cutting machine adopts PLC microcomputer control, equipped with touch operation screen and manual operation panel and wireless remote control, you can choose to manually or automatically manipulate the machine according to the needs of man-machine dialogue flexible and comfortable. The machine body adopts bridge structure, equipped with double machine heads, each head hangs several saw blades of the same specification. The working table can be rotated from 0 to 90 degrees, and the working order of the machine heads can be flexibly selected according to the needs, so as to achieve the purpose of efficient production of specification boards.

Technical Data
Parameters
Unit
HSQ600-8
Number of aircraft heads
pcs
2
Saw blade shaft diameter
mm
80
Machine height
mm
7700
Working table rotating angle
°
90
Main motor power
kw
37*2=74
Total weight
kg
11000
Machine length
mm
5000
Quantity of saw blades
pcs
1-8
Maximum working size
mm
3000X2000X180
Water consumption
m³/h
6
Total power
kw
84.6
Blade diameter
mm
600
Machine width
mm
3700

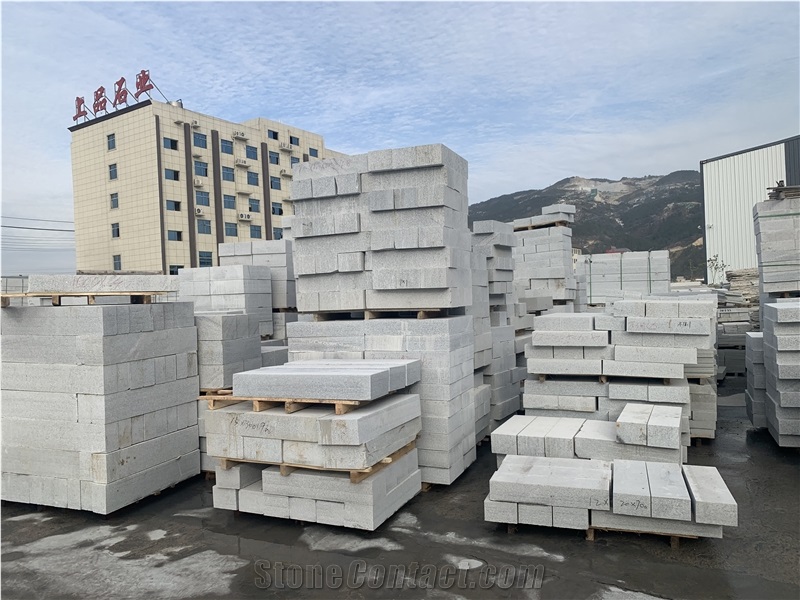

Processed Stone Photos
  • Processed Stone Photos
