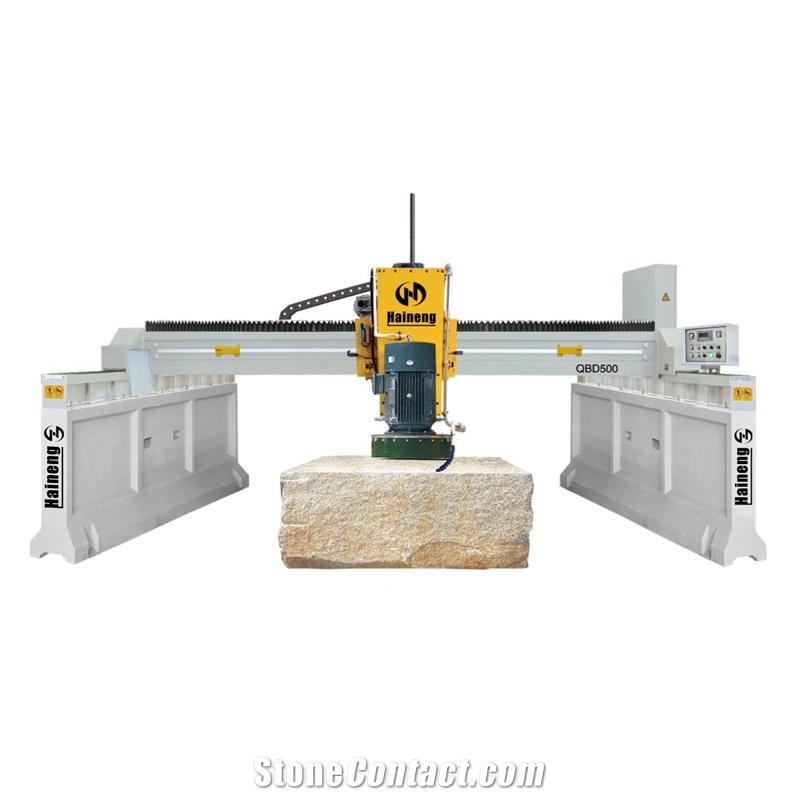

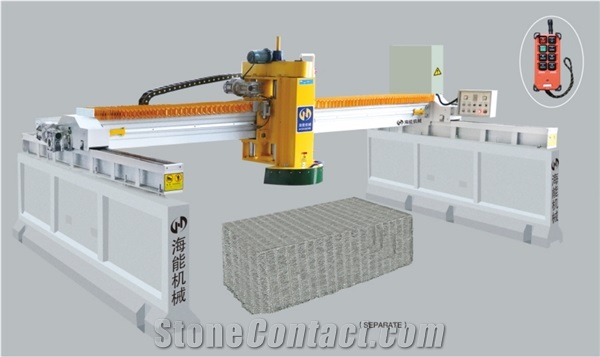

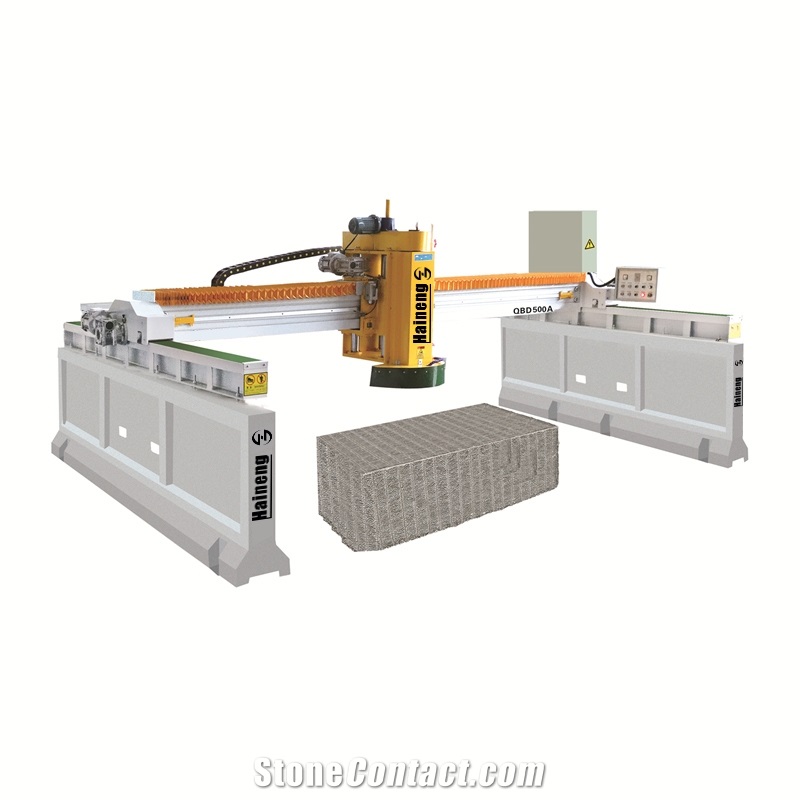

Integrated Bridge Bottom (Shaving) Machine
FOB Price:$9300-9700
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesLeveling Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
This machine is used for bottom shaving or thick stone shaping.
This machine adopts the bridge structure and the movement mode of the head movement to make the machine agile and the machine precision stable.
Since the advent of this machine, the waste material of the stone processing enterprise has been turned into wealth, which has greatly reduced the production cost of stone processing enterprises and improved the efficiency.
Technical Data
Parameters |
Unit |
QBD500A |
QBD500B |
Diameter of saw blade |
mm |
500 |
500 |
Max. working thickness |
mm |
250 |
250 |
Water Consumption |
m3/h |
4 |
4 |
Machine overall width |
mm |
4000 |
4000 |
Machine overall length |
mm |
5000 |
5000 |
Max. working length |
mm |
3000 |
3000 |
Max. working width |
mm |
2000 |
2000 |
Machine weight |
kg |
4500 |
5500 |
Total power |
kw |
26.5 |
26.5 |
Machine overall height |
mm |
2500 |
2500 |
Main motor power |
kw |
22 |
22 |

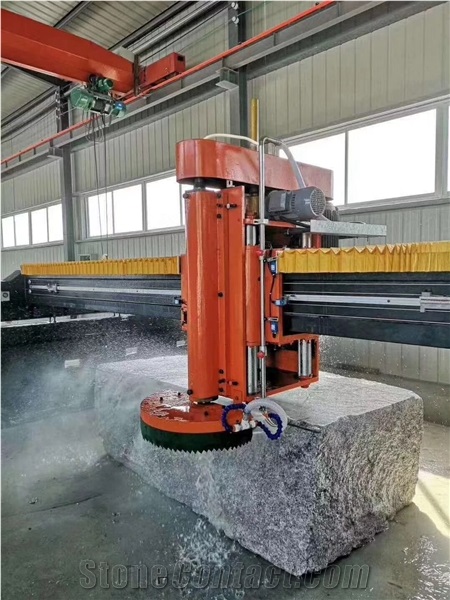

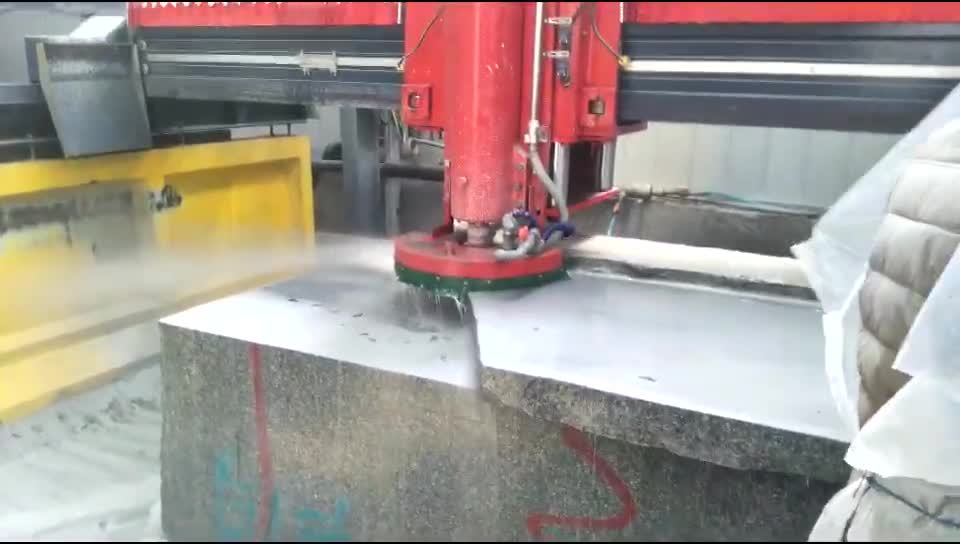

Processed Stone Photos
Components
-

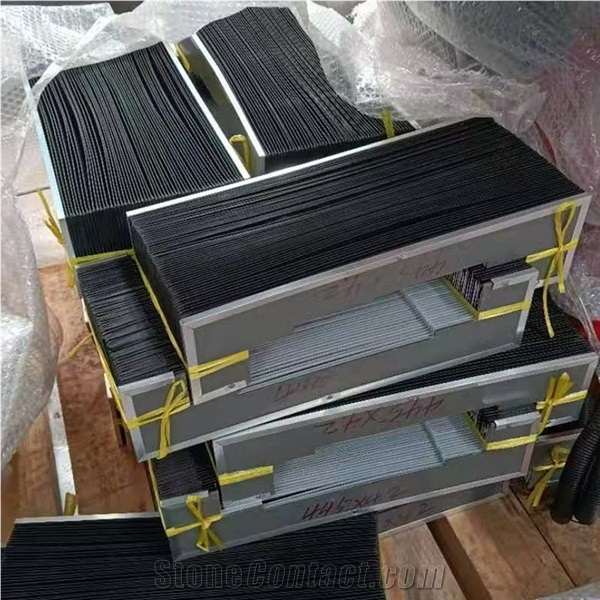

Dust cover
¥Payment Required
Consumables
-

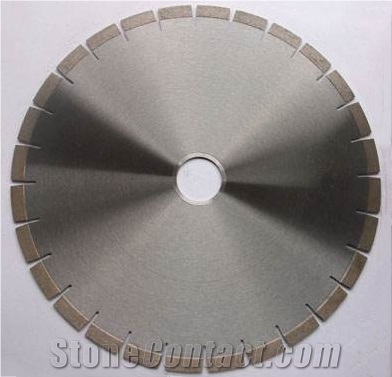

Saw blade
500mm
Video
Install Video
Operation Video
