5 Axis Bridge Integrated Cutting Machine

FOB Price:$37000-39500

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 35 days after deposits
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Remote troubleshooting
Trade Terms
Port: XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment : Payment Payment Payment

Supplier

XIAMEN SHUINAN MACHINE CO.,LTD.

XIAMEN SHUINAN MACHINE CO.,LTD.
SHUINAN MACHINE

ChinaChina level5YR idicon

Eatablished :Sep 10,2018

Main Product:

Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|

Contact supplier

Start Order

You may also like
5 Axis CNC Integrated Bridge Cutting Machine
5 Axis CNC Integrated Bridge Cutting Machine
5 Axis CNC Stone Cutting Bridge Saw For Granite
5 Axis CNC Stone Cutting Bridge Saw For Granite
K 725 5 Axis CNC Bridge Saw with tilting head and 5 interpolated axes
K 725 5 Axis CNC Bridge Saw with tilting head and 5 interpolated axes
The Latest 5+ 1 CNC Bridge Saw With Italy ESA System For Sale
The Latest 5+ 1 CNC Bridge Saw With Italy ESA System For Sale
4 Axis CNC Bridge Saw 4+1 Granite And Marble Stone Cutting Machine
4 Axis CNC Bridge Saw 4+1 Granite And Marble Stone Cutting Machine
  • Overview
  • Components
  • Video
  • Trade Terms
Machinery Function Features
Full-automatic touch-screen CNC machining center, multi-language conversion, complete processing in one machine, a wider range of applications. It can realize cutting, chamfering, edge grinding, slotting, drilling, circular arc and other special-shaped processing, simple operation, more practical.
Technical Data
Parameters
Unit
KDJQ-400
Head raising/lowering stroke(Z axis travel)
mm
220
Max diameter ot blade
mm
350-400
Head motor power
kw
11
Machine width
mm
3500
Rotate Speed
R/min
2880
Machine height
mm
2600
Worktable turn-over degree
°
85
Max. workable thickness
mm
80
Max. cutting depth
mm
80
Max.width of the cut slab
mm
2000
Z-axis working travel vertical cutting spindles
mm
220
Crossbeam motor power
kw
17
Machine length
mm
5000
Max.length of the cut slab
mm
3000
C axis blade rotation
°
45-90
Processed Stone Photos

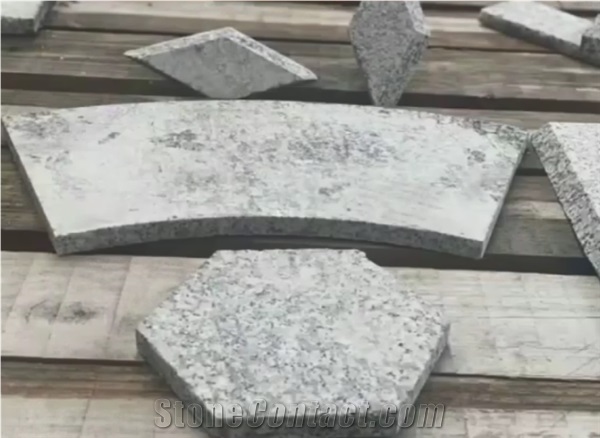

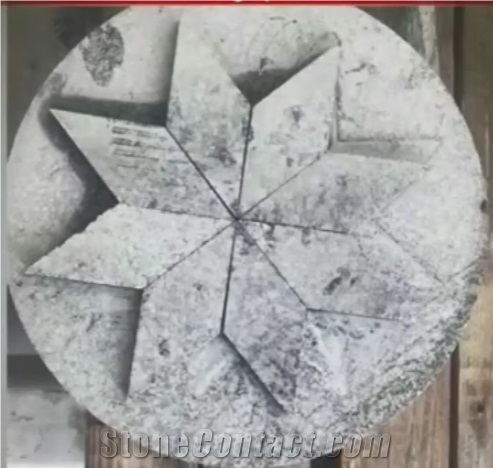

  • multiple shape

    multiple shape

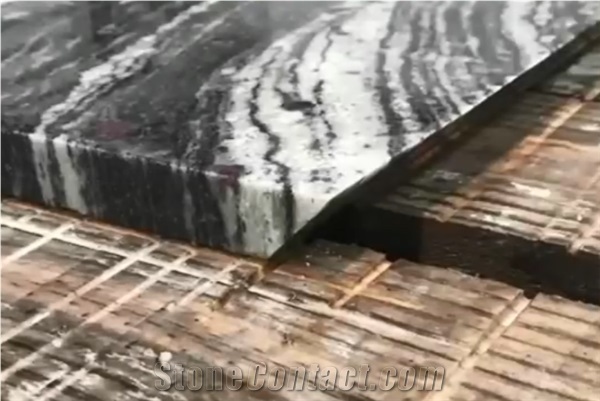

  • chamfer

    chamfer

  • Arc

    Arc

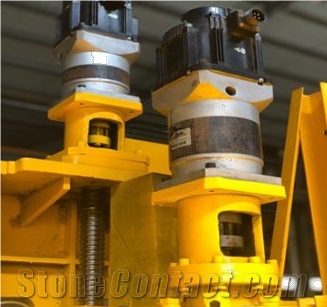

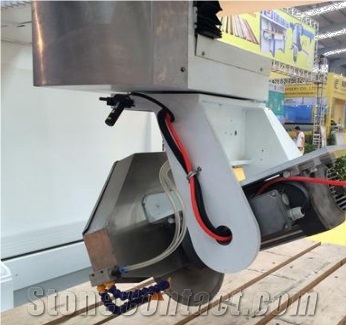

Components

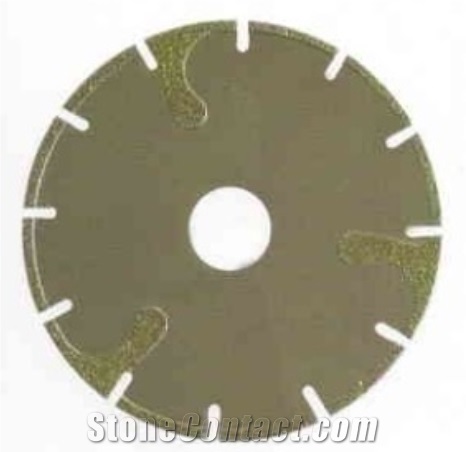

Consumables
Video
Operation Video Screen.PrimaryScreen.Bounds.Height
