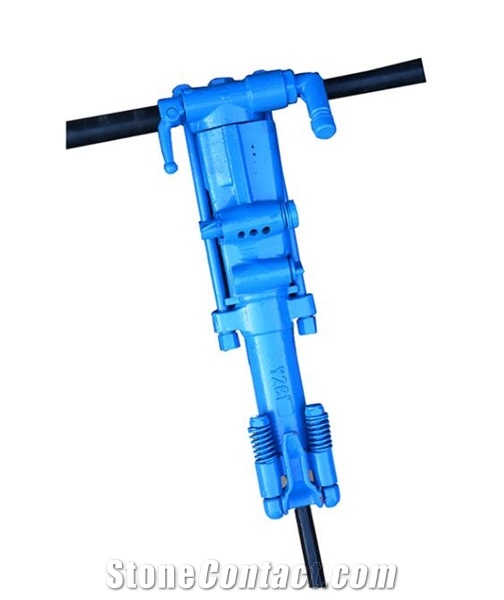

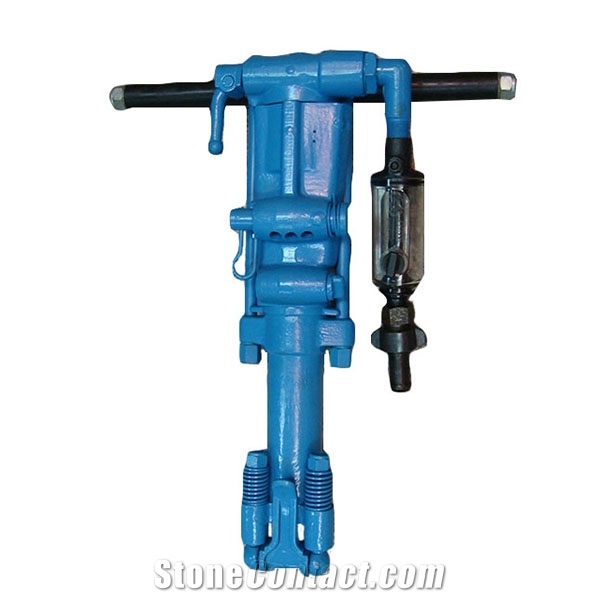

Y26 Jack Hammer Hand Held Rock Drill
FOB Price:$280-500
Supplier
Eatablished :May 03,2017
Main Product:
Rock Drilling Bits And Rods, Down The Hole Hammer And Bits, Diamond Wire And Drilling Machine, Hand Splitter / Shimes And Wedges, Rock Drill Machine, Forged Grinding Balls And Milling Rods, Splitter|
Parameters |
Unit |
y26 rock drill |
Overall Length |
mm |
650 |
Impact frequency |
HZ |
27 |
Cylinder Stroke |
mm |
64*70 |
Shank |
mm |
22*108 |
Air Consumption |
L/s |
50 |
Air Hose Size |
mm |
19 |
Total Weight |
Kg |
26 |
Water Hose Size |
mm |
13 |
Drilling Depth |
m |
5 |
Bore Diameter |
mm |
32-42mm |

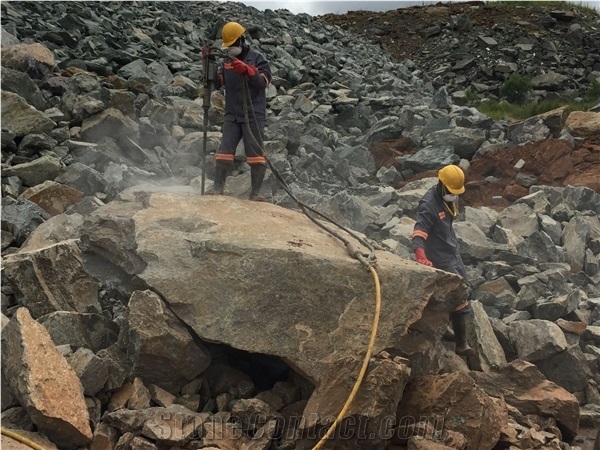

Y26 hand-held rock drill has the advantages of small size, light weight, low gas consumption and so on dry rock drilling, suitable for small mines, quarries, mountain roads, water conservancy construction and other projects a vertical downward or sloping blasting hole or secondary blasting hole is drilled in the surface layer. Y26 rock drill with independent strong air blowing system is suitable for drilling vertical downward blasting holes.
|
Air consumption
|
50 L/S
|
|
Impact frequency
|
27 Hz
|
|
Drilling diameter
|
32-42 mm
|
|
Piston diameter
|
65 mm
|
|
Piston stroke
|
70 mm
|
|
Number of revolutions
|
280 R/min
|
|
Total length
|
650 mm
|
|
N.W.
|
26 Kg
|
