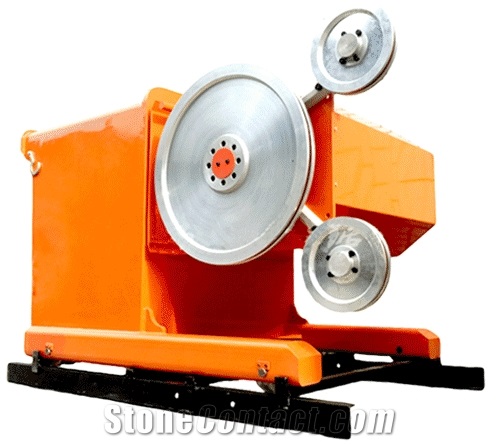

Quarry Wire Saw Machine For Granite And Marble Cutting
FOB Price:$4000-6000
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
7days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Trade Terms
Port:
Tianjin- China
Delivery Details: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES
Payment :
More
Supplier
Eatablished :May 03,2017
Main Product:
Rock Drilling Bits And Rods, Down The Hole Hammer And Bits, Diamond Wire And Drilling Machine, Hand Splitter / Shimes And Wedges, Rock Drill Machine, Forged Grinding Balls And Milling Rods, Splitter|
Machinery Function Features
Model 75HP
Total power 57.95kw
Main motor power 55kw
Travel motor power 0.75kw
Rotary cutting head motor power 1.1kw
Shifting cutting head motor power 1.1kw
Cutting head rotation 360°
Lateral movement of cutting head 2m
Main motor rotation speed 0~960 r/min
Liner wire speed 0~30m/s
Diameter drive wheel 800mm
Specification 180*137*130cm
Weight 2.8T
Power supply 380V/ 50HZ
Unit price/set by FOB China 16,500$/set
Technical Data
Parameters |
Unit |
75HP diamond wire saw machine |
Grace 55kw wire saw |
Dimension LxWxH |
mm |
2100*1550*1650 |
|
Motor Flywheel Unit Rotation |
° |
360 |
|
Main Motor Power |
kw |
55 |
|
Feed Motors Power |
kw |
58 |
|
Cutting Distance |
mm |
1950 |
|
Main Pulley Revolutions |
r/min |
0-40 |
|
Power Supply |
V/Hz |
380/50 |
|
Max. cutting width |
m |
10 |
|
Cutting Efficiency |
nr/hour |
0-30m |
|
Length of rails |
m |
2*5 |
|
Total Weight |
Kg |
3000 |
|
Max. Wire Length |
m |
20-120 |
|
Wire Saw Speed |
m/s |
30 |

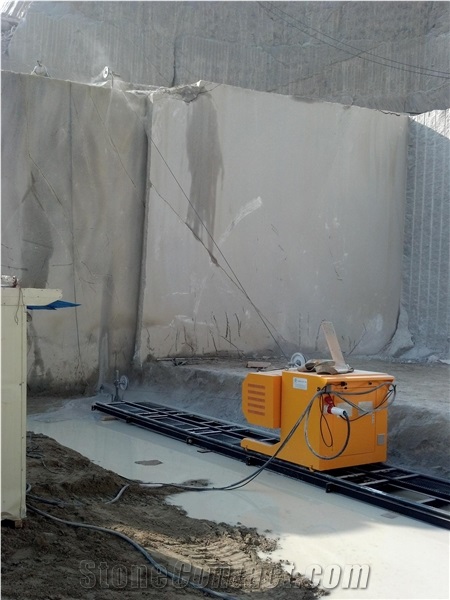

Processed Stone Photos
-
granite cutting
Components
-

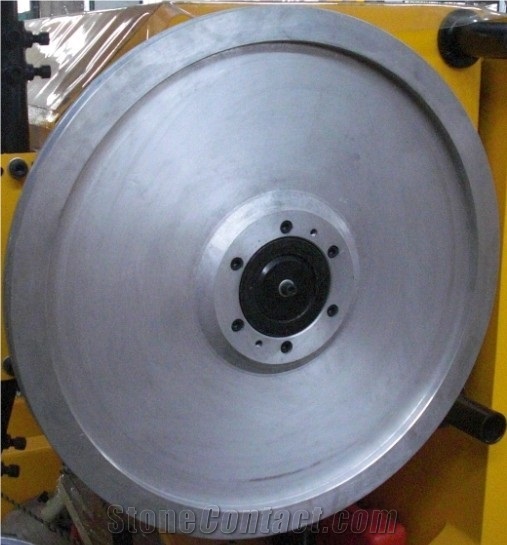

pulley
Consumables
-
pulley

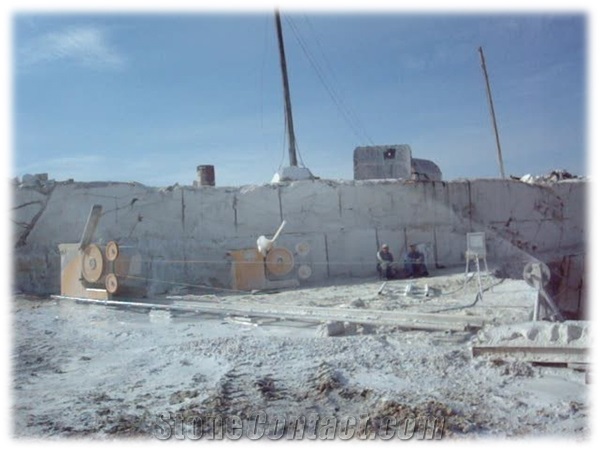

Customer Case
saudi granite and marble
Saudi Arabia
2006
Saudi Arabia
2006

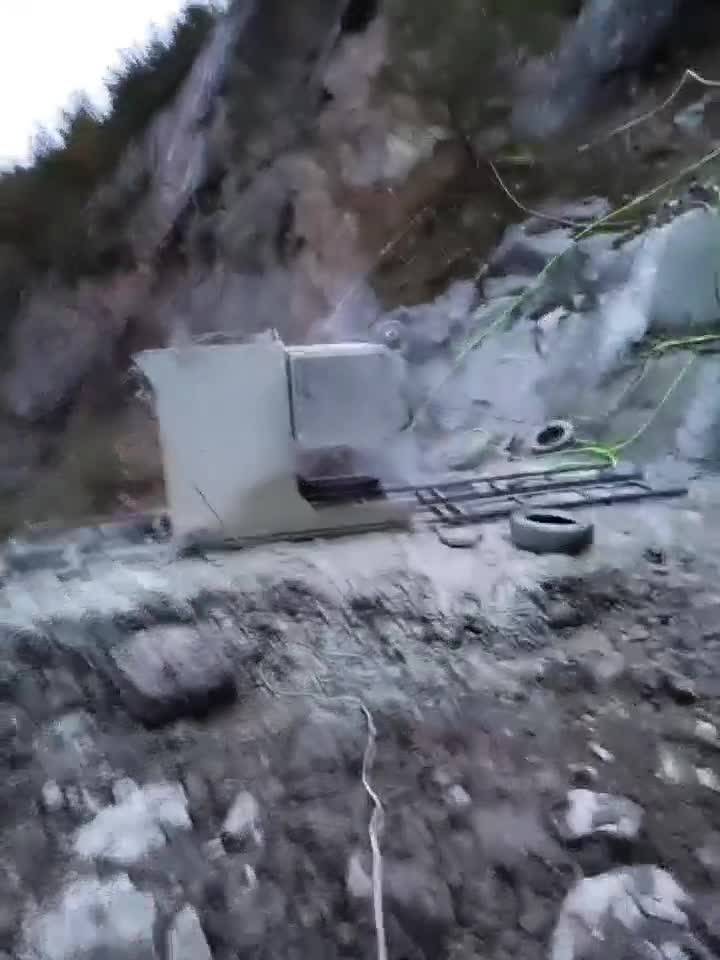

Video
Operation Video
