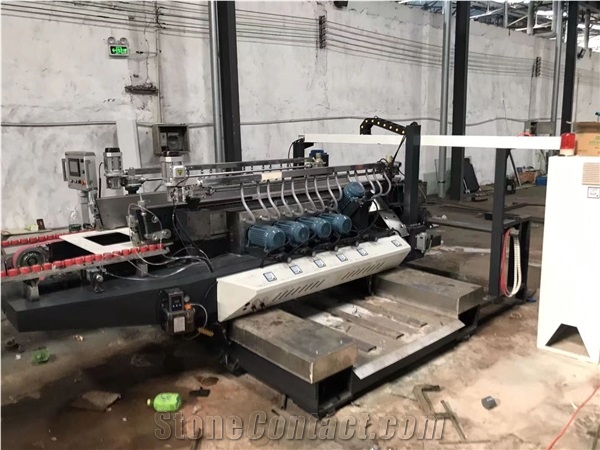

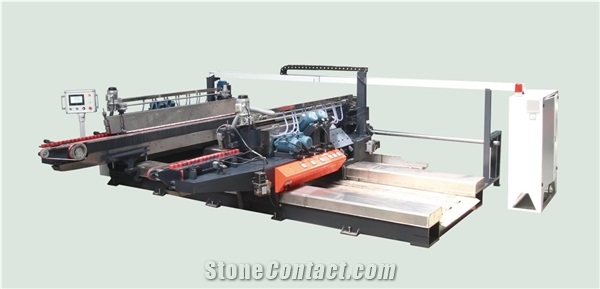

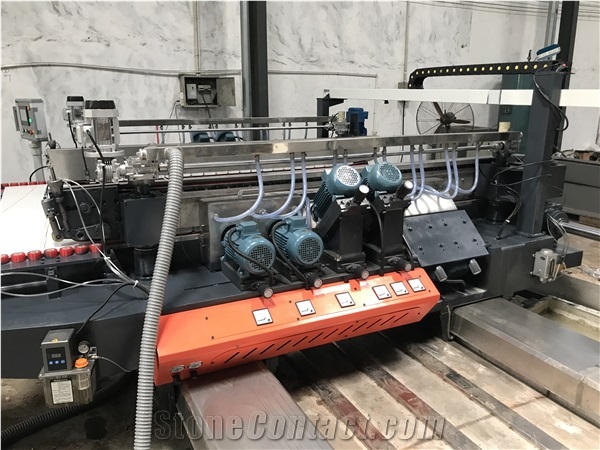

5+2 Head Slab Stone Bilateral-Edge Grinding Machine

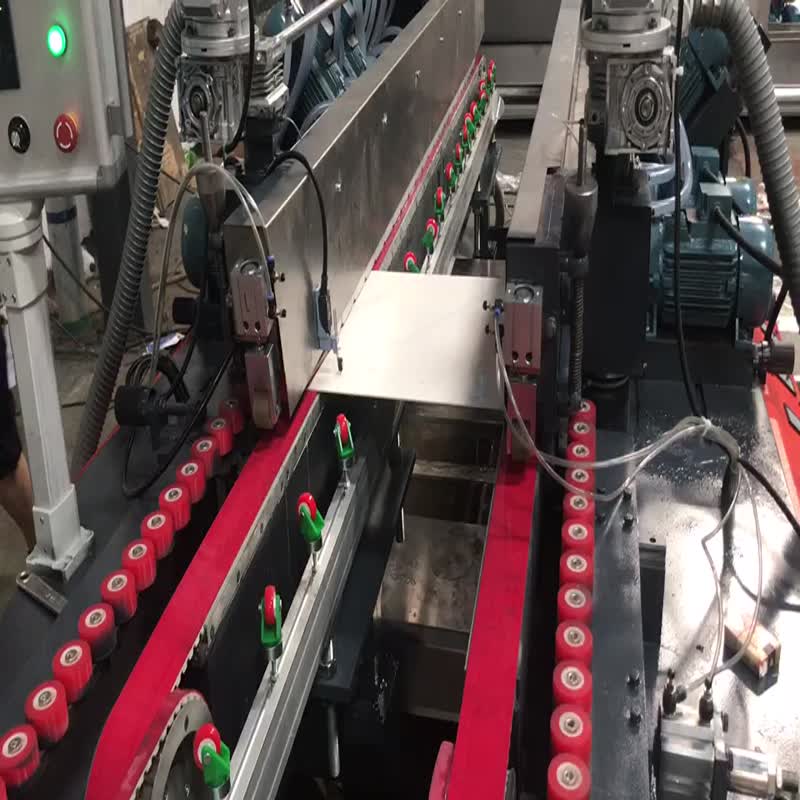

The bilateral straight edge grinding machine is an economical, efficient and practical stone deep processing equipment, suitable for grinding flat stone of different sizes and thicknesses, rough and fine grinding of the bottom edge of both sides of the flat stone and the upper and lower edges of each side can be completed in one process, which is suitable for mass production and large-scale production. It can be composed of two double linear edging machines and one L-shaped conversion table (straight-line conversion table), and the connection line can grind four sides at one time. The equipment adopts an advanced PLC control system, the processing parameters can be set from the man-machine interface, the operation is simple and convenient, and the degree of automation is high; the conveying of the stone uses an endless synchronous belt and a pneumatic positioning device to ensure the stable transmission of the stone and accurate positioning; The adjustment mechanism of the grinding stone width is composed of the linear guide rail, ball screw, frequency conversion speed regulation and encoder feedback, which ensures stable and reliable performance of the equipment, small error, and high processing precision.
