Portal Edge Grinder-Edge Profiling, Edge Polishing Machine
FOB Price:$7000-7500
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
This machine has the function of processing various linear edges and curved edges. The φ250 saw blade can be used for slotting. The machine adopts the immersion oil fully enclosed upper horizontal running track frequency conversion stepless speed regulation, the carriage lifting, the electric and the manual functions. It has strong load capacity and stability. Good character, long service life and low cost. The machining feed speed can be set arbitrarily to meet various processing needs. The machine is also designed with automatic and manual double action lifting, which greatly reduces labor intensity and improves production efficiency.
Technical Data
Parameters |
Unit |
LMM3500 |
Machine overall width |
mm |
960 |
Max. processing thickness |
mm |
150 |
Machine overall length |
mm |
4350 |
Machine overall height |
mm |
2300 |
Water consumption |
m3/h |
1.8 |
Grinding wheel diameter |
mm |
140-160 |
Max. cutting length |
mm |
3500 |
Blade diameter |
mm |
250 |
Approx. Weight |
Kg |
2600 |
Total power |
kw |
9.18 |
Main motor power |
kw |
7.5 |
Processed Stone Photos
Components
-

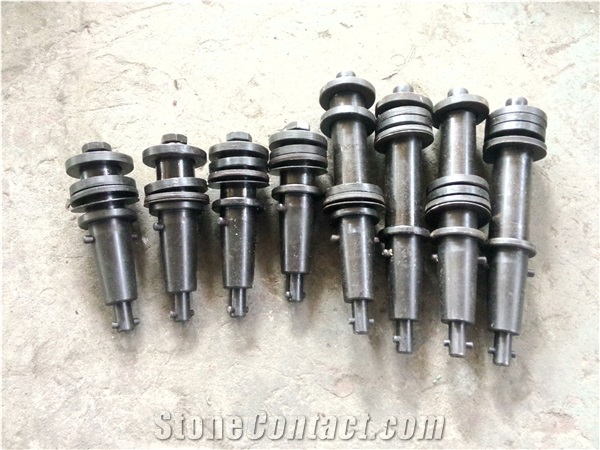

Grinding wheel loading and unloading shaft
¥Payment Required
Consumables
-

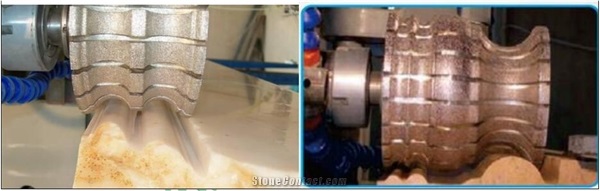

grinding wheel
-

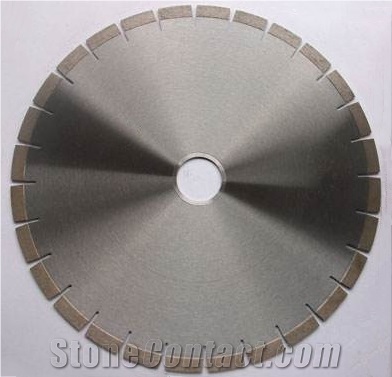

saw blade
250mm
Video
Install Video
Operation Video
Screen.PrimaryScreen.Bounds.Height
