  • ZT-600 Terrazzo Tile Pressing Machine- Terrazzo Tile Making Machine
  • ZT-600 Terrazzo Tile Pressing Machine- Terrazzo Tile Making Machine
Favorites

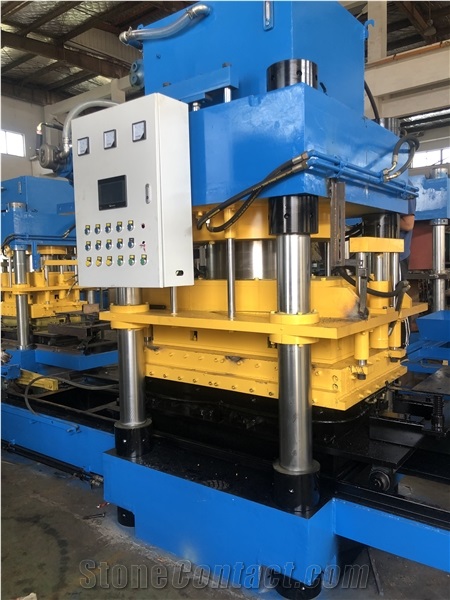

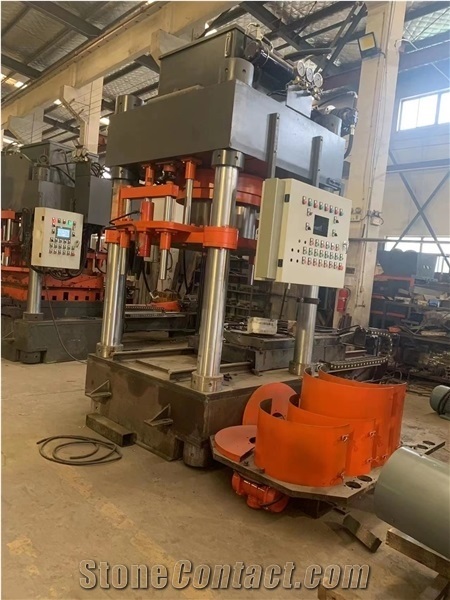

ZT-600 Terrazzo Tile Pressing Machine- Terrazzo Tile Making Machine

FOB Price:$40000-150000

Type: Artificial Stone MachinesPressing Machine
Usage: Artificial Stone
After-Sale
Lead Time: 30-60days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Dec 08,2011

Main Product:

Terrazzo Tile Machine, Terrazzo Tile Polishing Machine, Terrazzo Slab Making Machine, Cutting Machine, Bush Hammer Machine, Concrete Tile Machine|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features
ZT600 Terrazzo tile machine 1.Terrazzo tile making machine is suitable to produce terrazzo tiles from 300x300mm 400*400mm 600x600mm to 600*1200mm 900*1200mm size tiles. It adopts imported PLC to control automatically, only few 3-4 workers can operate this production line. 2. Good quality PLC and advanced design to assure the machine have very stable working performance. 3. This terrazzo tile press machine can be used in several ways by changing the mould. This machine can produce both different sizes terrazzo tiles and roof tiles, just by changing the mould. 4. If you can provide us your tile design, we can produce according to client's requirements. 5.The raw materials: cement, stone powder and stone chips 6.Terrazzo is widely demand in the terrazzo tile market: indoors,plaza, hotel,sidewalks, communities, hospitals, schools,subway.
Technical Data
Parameters
Unit
ZT600
Min. slab thickness
mm
20
Max. Production
m2/h
800
Max. slab width
mm
600
Machine overall height
mm
2200
Max. slab thickness
mm
50
Compressed air
NL/min
0.75
Max. slab length
mm
600
Max. loading
Kg
5000
Pressing cycle
minute/piece
10-20
Approx. Weight
Kg
60000
Machine overall length
mm
3250
Sound pressure level
dB
40
Machine overall width
mm
1800
Pressure
T
250
Total power
kw
7.5
Vibration in minute
nr
1.5
Production capacity
piece/hour
3-6
Minimum air pressure
Mpa
0.75
Vibration motor power
kw
1.5
Software

 It adopts imported PLC to control automatically

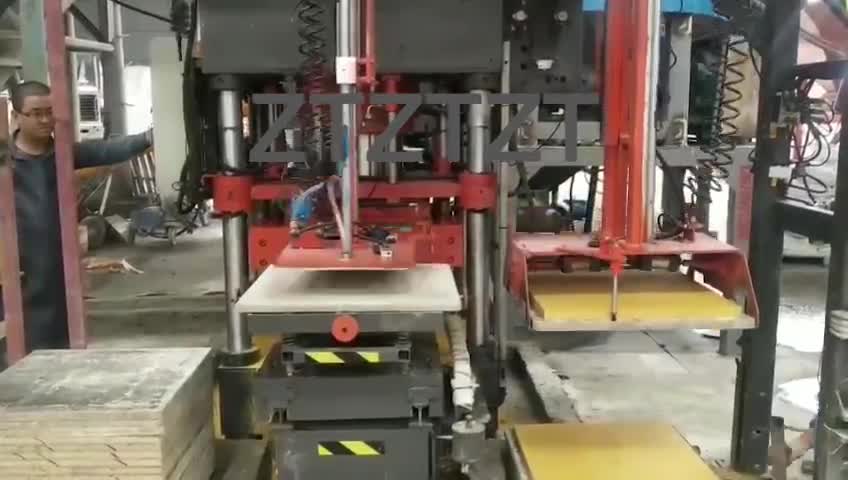

Work Example

ZT600 Terrazzo tile machine1.terrazzo tile making machine is suitable to produce terrazzo tiles from 300x300mm 400*400mm 600x600mm to 600*1200mm 900*1200mm size tiles. It adopts imported PLC to control automatically,only few 3-4 workers can operate this production line.2. Good quality PLC and advanced electrnic brand.

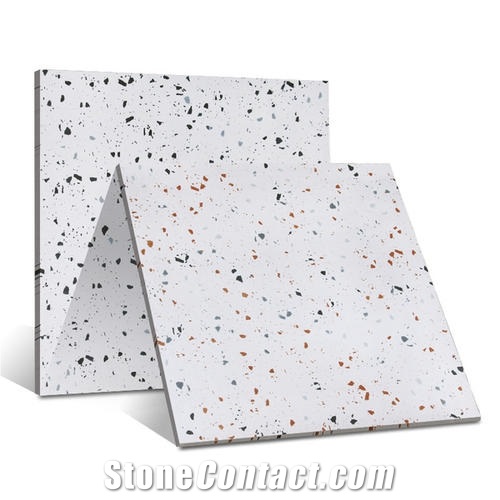

Processed Stone Photos
  • Processed Stone Photos

Components
Consumables
