Artificial Quartz Stone Machinery- Quartz Stone Press Equipment, Pressing Machine

FOB Price:$100000-1000000

Type: Artificial Stone MachinesPressing Machine
Usage: Artificial Stone
After-Sale
Lead Time: 30 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Jan 01,2008

Main Product:

Quartz Stone Production Line, Quartz Stone Machine, Engineer Quartz Stone Machine, Quartz Surface Machine, Stone Polishing Line, QUartz Slab Press Line|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
Machinery Function Features

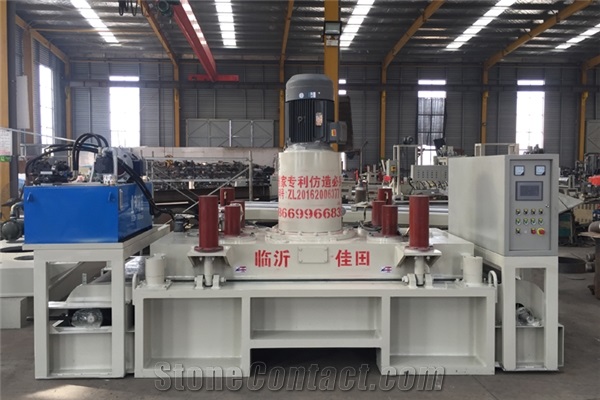

Artificial Quartz Stone Machine is with very simple and practical design. Advantages of simple design is that it can reduce the pollution of the material during production. JTM Quartz Slab Press machine is 2 times the speed of other press, save 50% Electricity,save 10% material, save 5-10% polyster resin JTM artificial quartz stone production line is customized designed according to the situation of the customers. Each lines are different. But mostly are include quartz slab batching system, quartz slab press machine, heating oven, stone polishing line etc. Since 2014, JTM invented the patent quartz stone press machine. It is the revolutional product of artificial quartz stone machine. The press machine is silent and intelligent product which is even more efficient than Italian Quartz Press machine.
Technical Data
Parameters
Unit
JTM1832
Machine overall length
mm
6000
Compressed air
NL/min
100
Minimum air pressure
bar
6
Machine overall width
mm
3000
Machine overall height
mm
2600
Pressure
T
1000
Vibration in minute
nr
1
Min. slab thickness
mm
15
Total power
kw
30
Max. slab thickness
mm
50
Max. loading
Kg
800
Vibration motor power
kw
30
Max. slab width
mm
2000
Production capacity
piece/hour
20-30
Sound pressure level
dB
60
Approx. Weight
Kg
36
Max. slab length
mm
3500
Max. Production
m2/h
200
Pressing cycle
minute/piece
2-3
Software

JTM artificial quartz stone production line is customized designed according to the situation of the customers. Each lines are different. But mostly are include quartz slab batching system, quartz slab press machine, heating oven, stone polishing line etc.

Since 2014, JTM invented the patent quartz stone press machine. It is the revolutional product of artificial quartz stone machine. The press machine is silent and intelligent product which is even more efficient than Italian Quartz Press machine.

Work Example

JTM artificial quartz stone machine mainly include two separate lines: Quartz slab line and Stone polishing line.

Quartz Slab line also known as Quartz Stone Press Line, main purpose of this line is to press the slab in mold and make it become hard after heating in the oven. Main machines of the quartz slab line are Artificial Stone MixerQuartz Slab Press MachineQuartz Slab Hardening Oven .

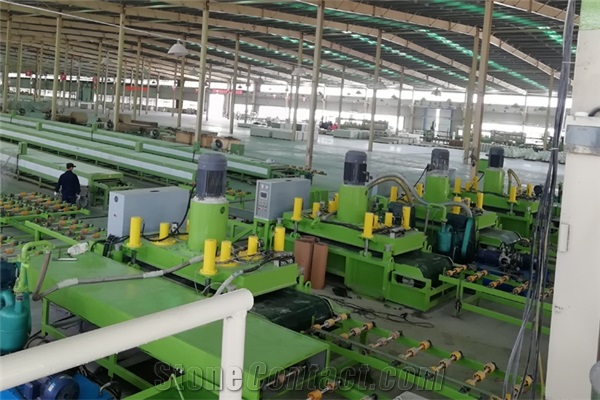

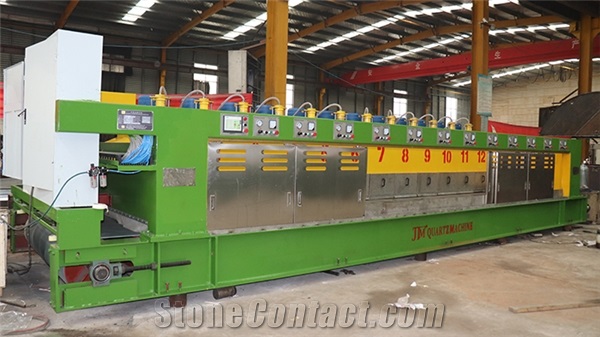

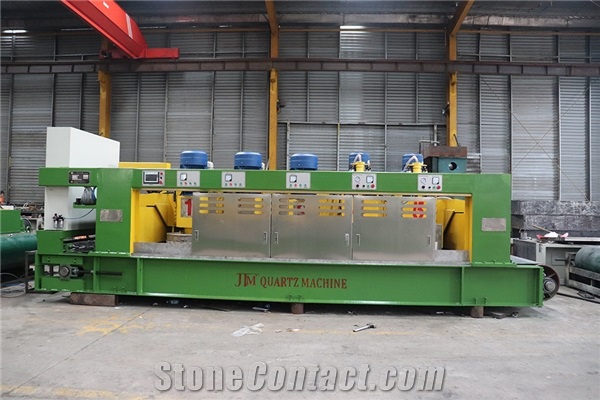

Stone Plishing line is mainly used to calibrate and polish the slab to get a high gloss. Main machines of the stone plishing line are  stone calibration machinestone polishing machinestone cutting machine and stone slab robot hand

Processed Stone Photos
  • quartz stone

    quartz stone

Components

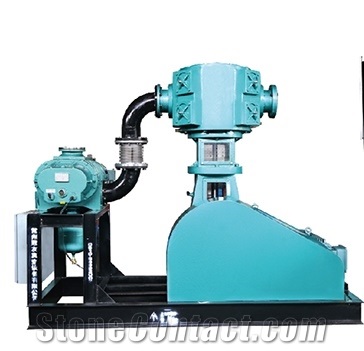

  • Vacuum Pump

    Vacuum Pump

    ¥Payment Required
Consumables

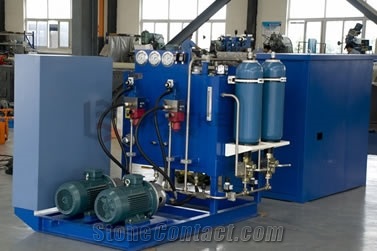

  • hydraulic station

    hydraulic station

    1

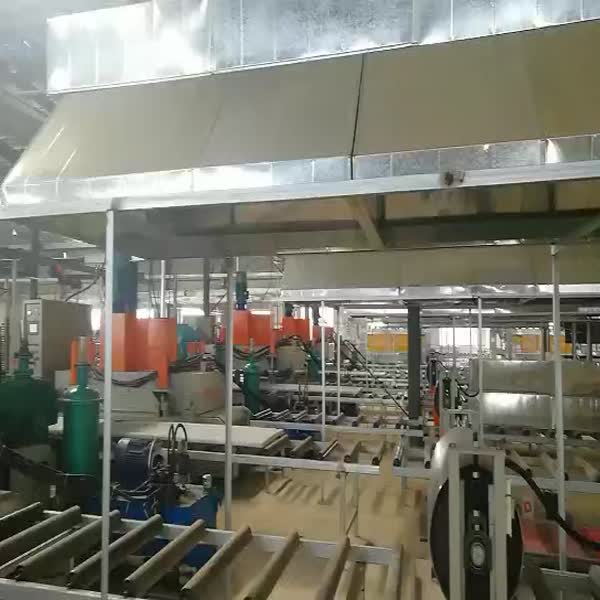

Video
