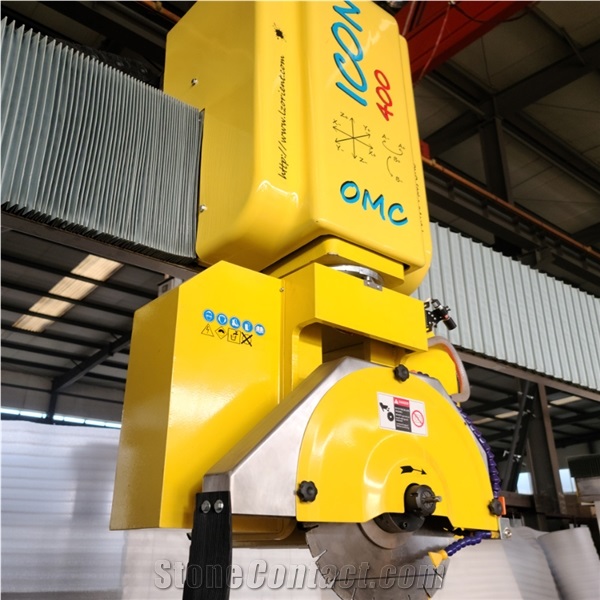

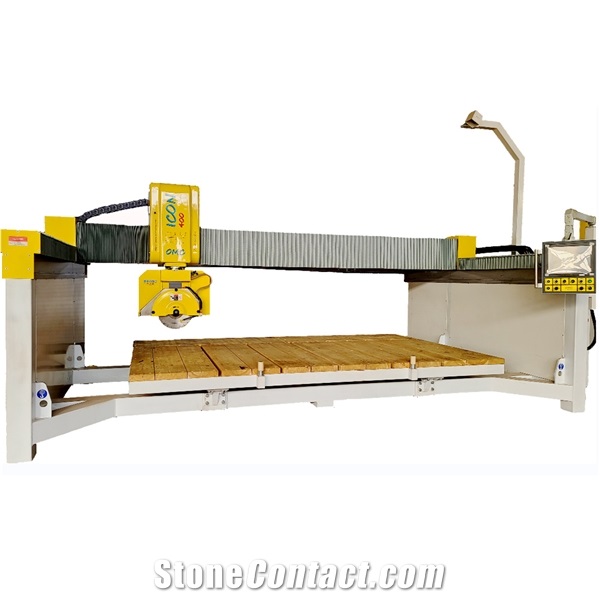

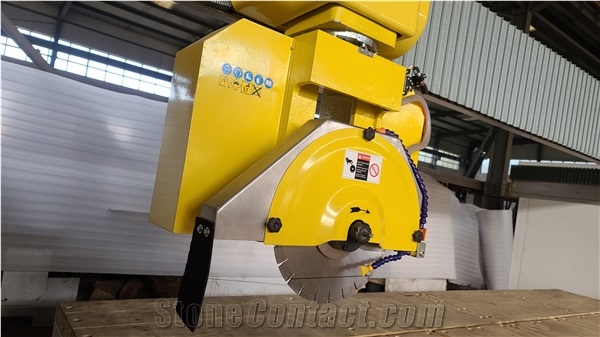

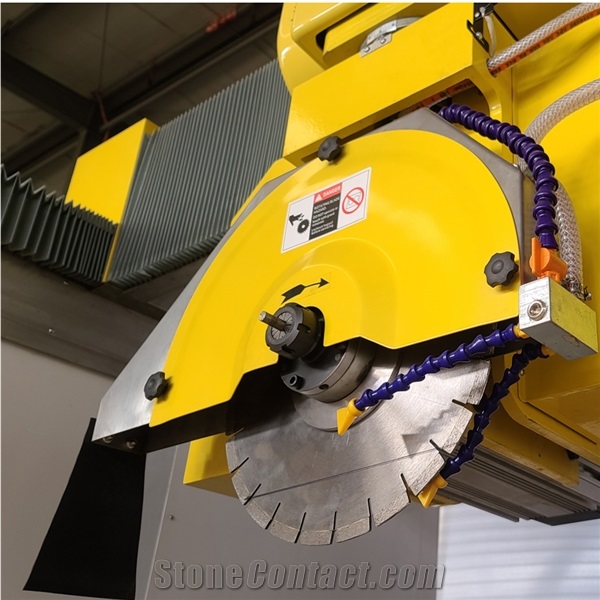

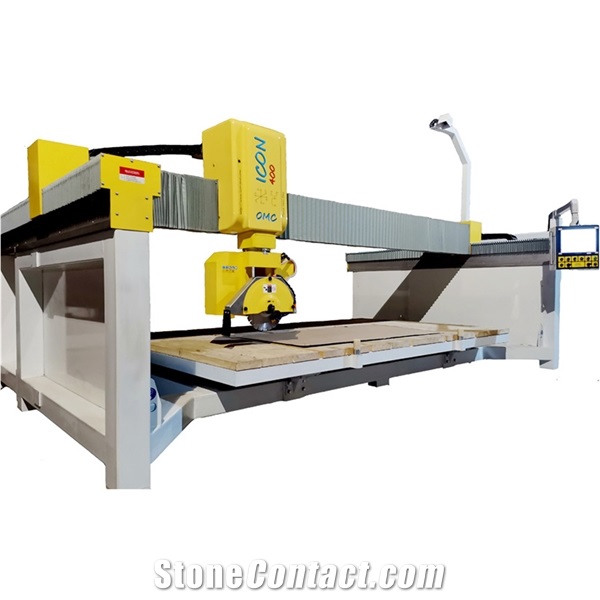

ICON400 CNC Bridge Saw Stone 5 Axis Sink Countertop Cutting Machine

Name: ICON400 CNC Bridge Saw Stone 5 Axis Sink Countertop Cutting Machine
Brand: Laizhou Oriental Machinery Co., Ltd.
SKU: 5792
Price: 32800 USD
Availability: InStock

FOB Price:$32800-38800

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Artificial Stone, Quartzite

After-Sale

Lead Time: 30

Warranty:12 Months

Install and Guarantee:Remote guidance installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

Laizhou Oriental Machinery Co., Ltd.

OMC

China

Eatablished :Feb 13,2009

Main Product:

Stone Cutting Machine, Stone Polishing Machine, CNC Bridge Saw, Wire Saw, Block Cutting Machine, Stone Processing Machine|

Contact supplier

Start Order

You may also like

High Efficiency CNC Multi Blade Stone Cutter

New Champion 5 - Cnc Bridge Saw, CNC Bridge Cutting Machine

4 Axis CNC Bridge Saw 4+1 Granite And Marble Stone Cutting Machine

CNC Stone Bridge Saw For Cutting Granite Marble Slabs

2025 Italian CNC 5 Axis Plus Router Bridge Saw Stone Cutting Machine

Product Detail
Company Profile

Overview
Components
Video
Trade Terms

Machinery Function Features

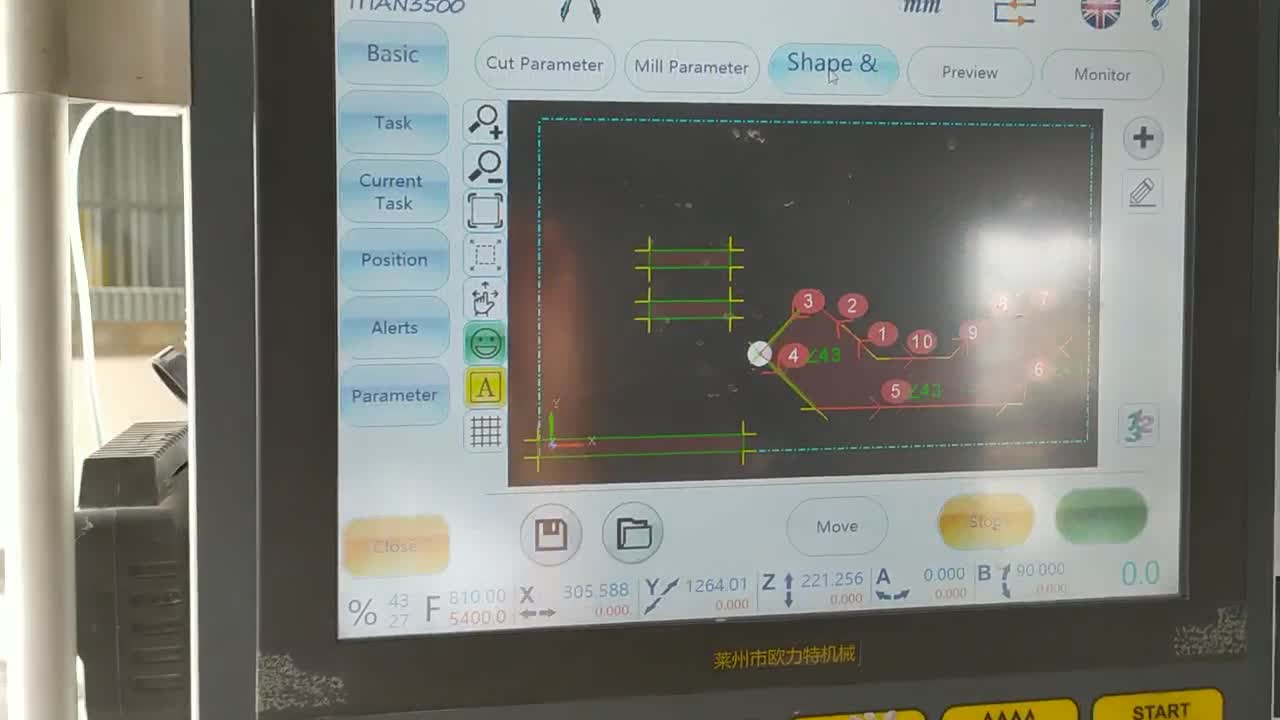

1. Compact size without needing the ground base. 2. With advanced CNC control system and all pattern operation, the machine can be operated without professional operators. 3. With powerful functions, the machine can work almost all the jobs of a small factory. 4. With less electricity and more efficiency, the cost is decreased much. 5. High quality accessories and electric parts are used to secure long service life and low cost.

Technical Data

Parameters	Unit	ICON
Worktable turn-over degree	°	87
Center-to-center distance vertical cutting spindles	mm	460
Max number of interpolated axes	nr	1
Max. dimensions of the piece for “rodding” application	mm	400
Average level of equivalent sound pressure	dB	20
Machine length	mm	3500
Tools holder head inclination(A axis blade rotation)	°	360
Center-to-center distance 5-axis head/vertical cutting spindles	mm	260
Vertical stroke speed (Z displacement speed)	m/min	2.5
Z-axis working travel vertical cutting spindles	mm	260
Machine height	mm	100
Crossbeam motor power	kw	2.2
Worktable Weight	Kg	300
Head raising/lowering stroke(Z axis travel)	mm	260
Vertical cutting spindles motor power	kw	2.2
Max. workable thickness	mm	100
Transversal stroke speed (Y displacement speed)	m/min	2.5
Disc diameter	mm	400
Machine width	mm	2000
Max. liftable weight with all the vacuum cups activated	Kg	20
Head motor power	kw	7.5
Dimensions of the work table(L×W)	mm	3500*2000
Air consumption	m3/h	0
Disc motor power	kw	7.5
Installed electrical power	kw	7.5
Max.width of the cut slab	mm	2000
Min.dimensions of the liftable piece	mm	300*300
Bridge transversal stroke(Y axis travel)	mm	2000
Horizontal stroke(X axis travel)	mm	3500
Cooling water requirement(1.5 bar min. pressure)	L/min	0
Horizontal stroke speed(X axis displacement speed)	m/min	2.5
Max. dimensions of the liftable piece	mm	3500*2000
Max. revolutions of the spindle unit	r/min	6000
Approximate weight without table	Kg	20
Number of vertical cutting spindles	nr	1
C axis blade rotation	°	360
Max. cutting depth	mm	100
Max.length of the cut slab	mm	3500
Hydraulic station motor power	kw	0

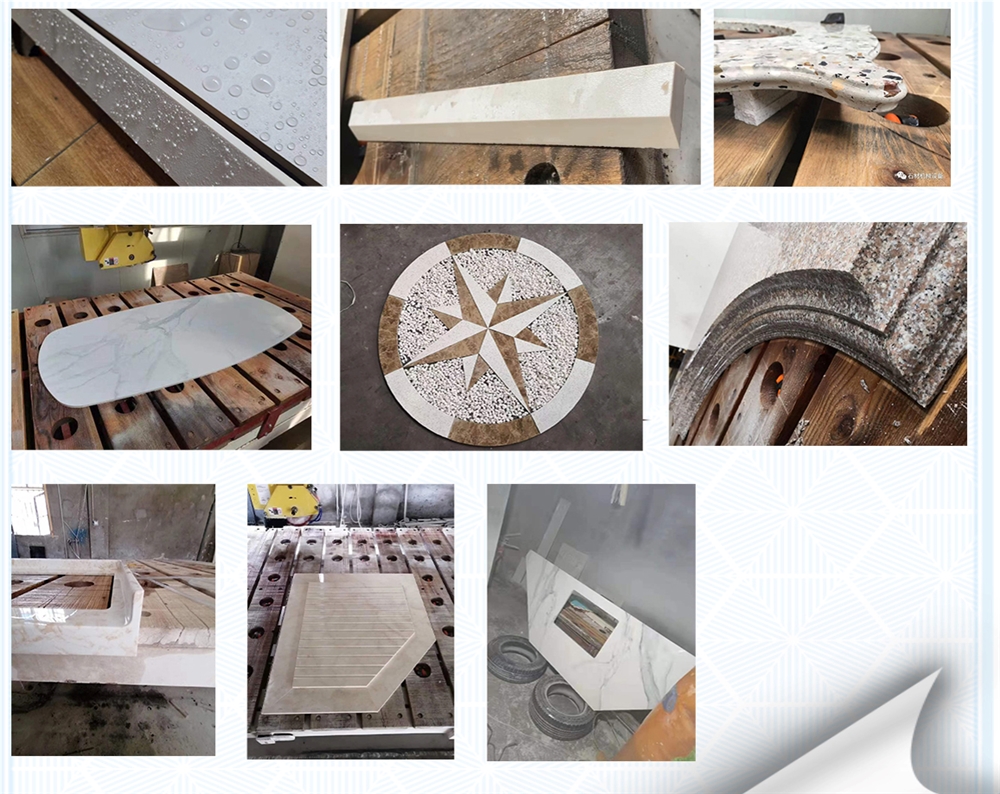

Work Example

This machine can be used to realize some advanced functions like : cutting line, chamfering, drilling, profiling, 3D profiling, and edge profiling, which can be used to small processing factory and countertop shops.
