2025 Italian CNC 5 Axis Plus Router Bridge Saw Stone Cutting Machine
FOB Price:$43000-64000
Supplier
Eatablished :Apr 17,1997
Main Product:
Stone Quarry Machine, Block Cutting Machine, Stone Polishing Machine, Slab Cutting Machine , Stone Engraving Machine, Stone Cnc Machine|

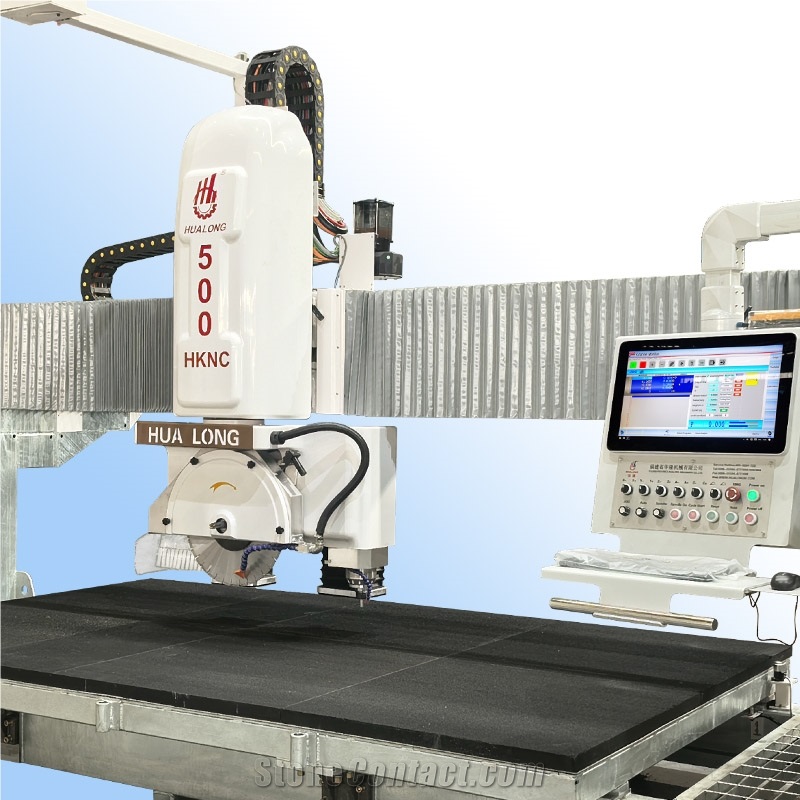

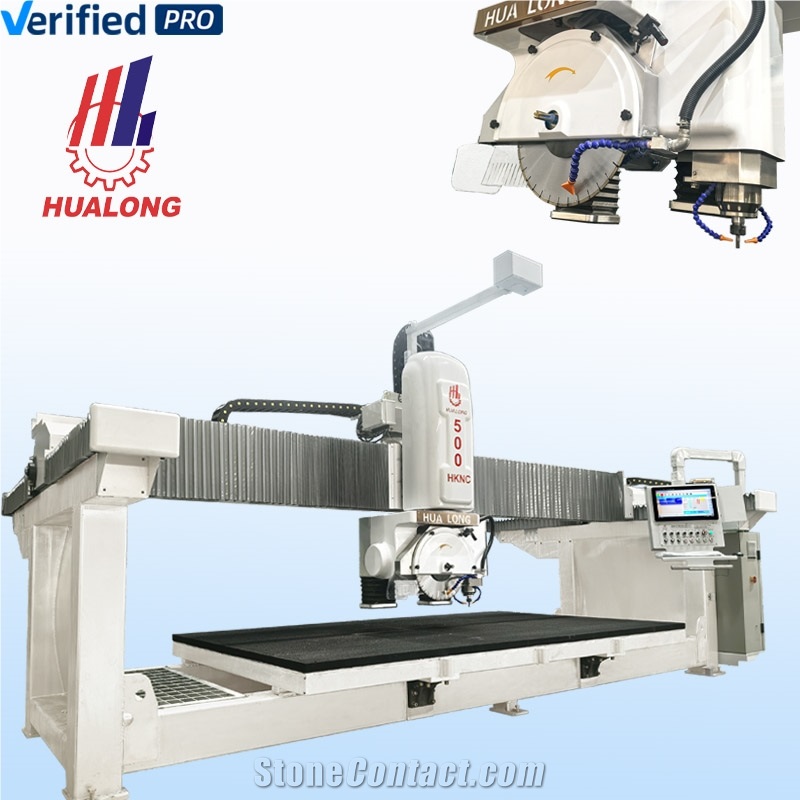

Hualong HKNC-500+ is a 5/6 axis interpolated cutting and milling machine with Italian ESA cnc system, the latest in top bridge saw design, reliable and verstile, specifically for processing marble, granite, artifical quartz, other natural stones and ceramic, with speed and accuracy automates cutting (straight or shaped, vertical or inclined), 3D profiling, milling and drilling as the tasks requirement.
This stone cnc machine can be very customized, it is the best solution for fabshop with high productivity of:
- kitchen countertops
- bath vanites
- shower trays
- wall panels for interiors and exteriors
- floor tiles
- doorsteps, staircases and thresholds
- bas-reliefs
- street furniture
Features:
- 5 axis lnterpolation control with Italian CNC Esa system.
- Easy to use interface with 21.5" color touch-screen.
- Blade can rotate 0°-360° and tilt 90° for any direction's and any angle's chamfering cutting.

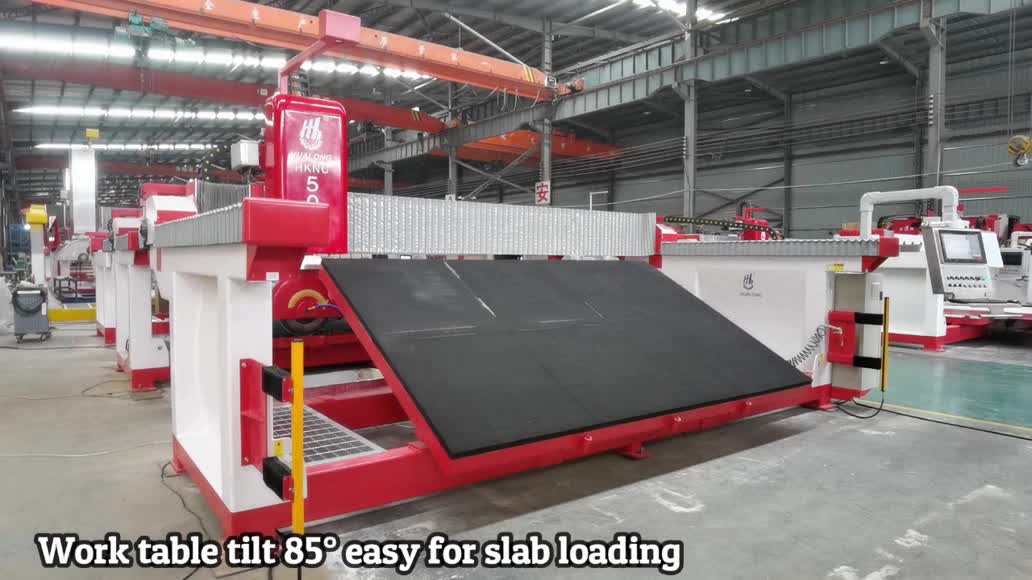

- Working platform can tilt 85 degrees, easy for slabs loading.
- Manual cuts available for simple machining.
- Nesting manual / automatic to optimize slab surface usage
- Optional - Sole engraving module with electric spindle exellent for faster milling & 2D carving.
- Optional - Vacumm manipulator for workpieces handling.
- Optional - Photo slab for nesting and avoiding defects.
- Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
- Optional - Slab thickness probe
- Optional - Tool measuring system
- Optional - Galvanized frame and work table to prevent rust
Parameters |
Unit |
HKNC-500 Plus |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
33 |
Hydraulic station motor power |
kw |
2.2 |
Crossbeam motor power |
kw |
1.1 |
Head raising/lowering stroke(Z axis travel) |
mm |
300 |
Dimensions of the work table(L×W) |
mm |
3500x2100 |
Max. revolutions of the spindle unit |
r/min |
6000 |
C axis blade rotation |
° |
360 |
Vertical cutting spindles motor power |
kw |
0.85 |
Retractable electro-spindle power |
kw |
5.5 |
Max. liftable weight with all the vacuum cups activated |
Kg |
200 |
Machine width |
mm |
3380 |
Max. cutting depth |
mm |
120 |
Tools holder head inclination(A axis blade rotation) |
° |
90 |
Max number of interpolated axes |
nr |
6 |
Worktable turn-over degree |
° |
85 |
Disc diameter |
mm |
400-500 |
Max. revolutions of retractable electro-spindle |
r/min |
24000 |
Machine length |
mm |
5900 |
Machine height |
mm |
3000 |
Disc motor power |
kw |
18.5 |
Cutting Version
- Slab cutting handling
- 2D CAD tools
- Import 2D CAD files in Dxf, DWG formats, etc.
- Geometric macros
- Automatic or manual nesting of shapes on slab
- Disk table management
- Calculation of optimized trajectories for the disk cutting
- Automatic rest machining to complete the cuts using a cut-drill/mill tool or waterjer tool
- Movement and correction of the slab image throught a camera
- Acquisition and correction of the slab image through a camera
- Solid simulation with material removal and collisions control
- Management of processing reports
Countertop Version
- 2D CAD tools
- Import 2D CAD files in DXF, DWG formats, etc.
- Geometric macros
- Perimeter definition bathroom/kitchen surface
- Geometrical division of parts (joint management)
- Insertion of accessories (sink holes, cooktops, etc.)
- Tool table management, tool holders, angular gearboxes, etc.
- Complete handling of countertops machining process: design, cutting, finishing and workbench positioning
- Automatic or manual handling of the machining process
- Optimized handling and arrangement of materials
- 2.5D free machinings
- Wireframe simulation with rendering of applied machining results
- Management of processing reports
-

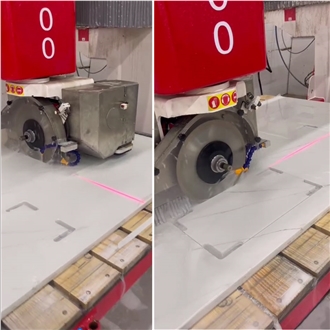

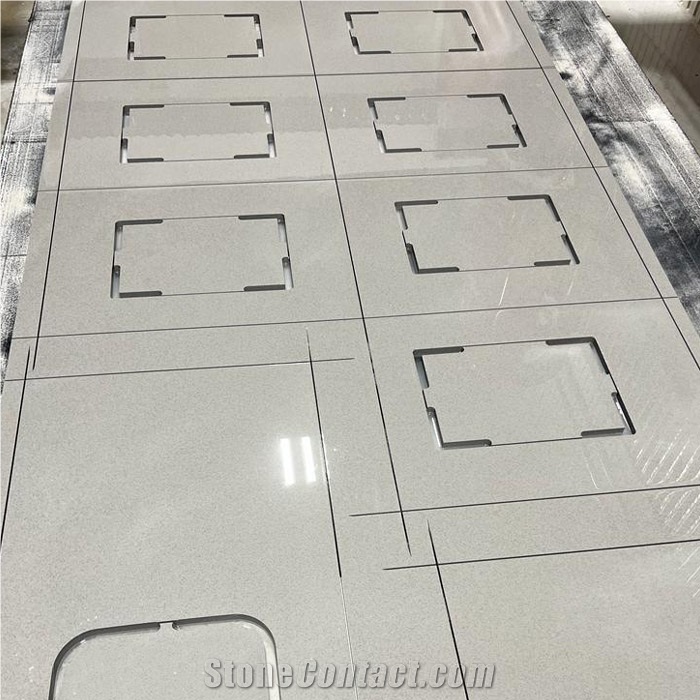

Sink Cutting
-
Cutting & Milling
-
Manipulator Movement
-

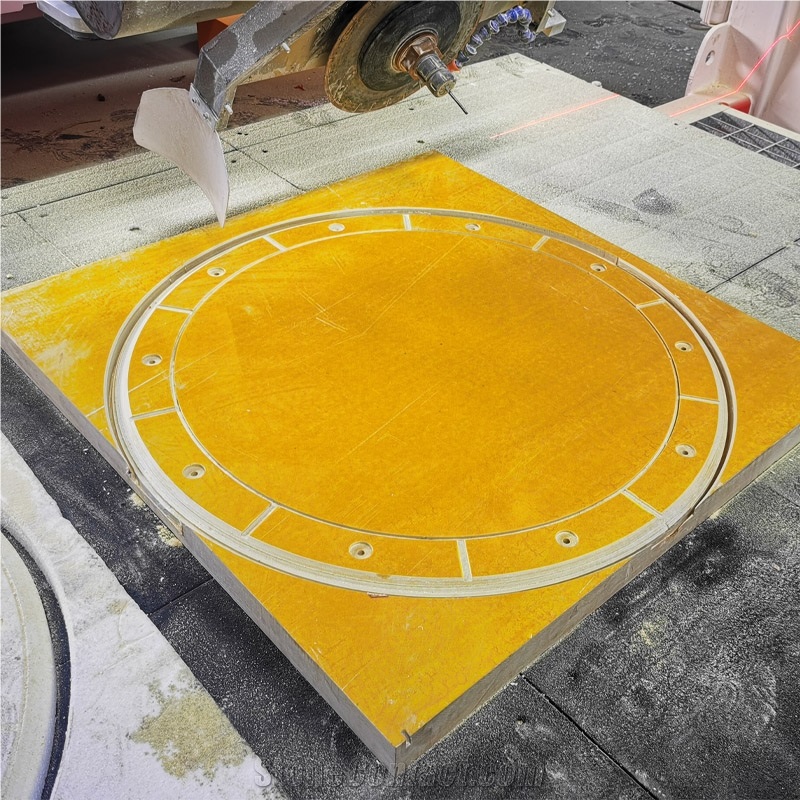

Round Cuts
-

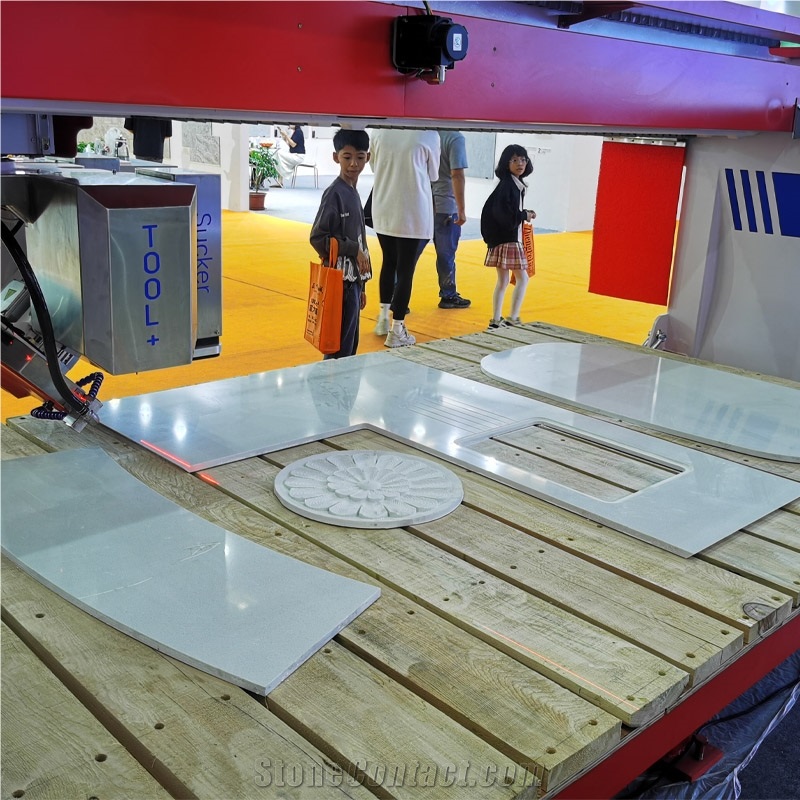

Countertop Processing
-
Profile cutting
-

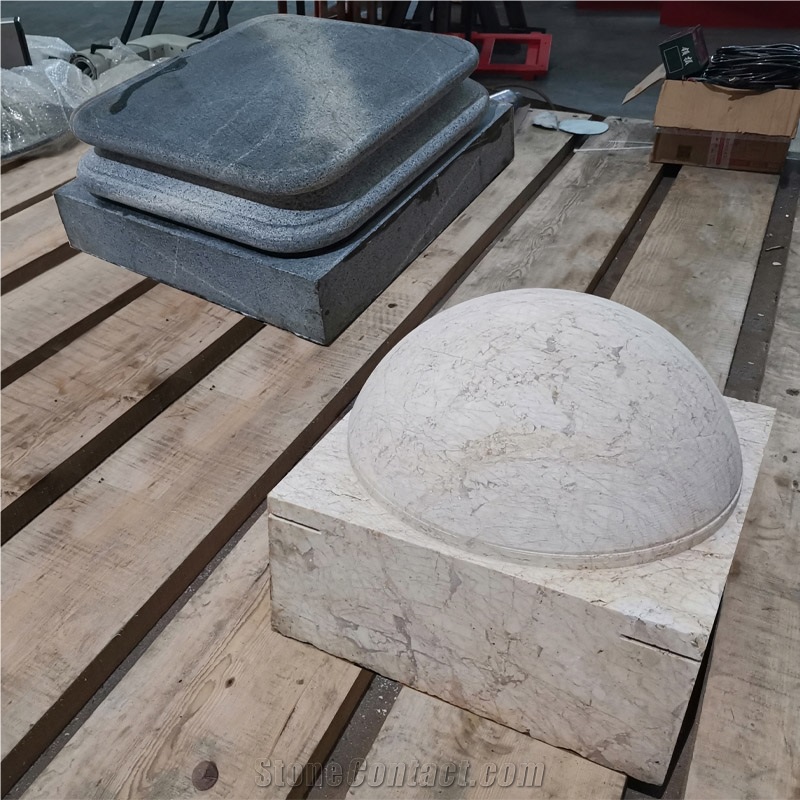

3D Profiling
-

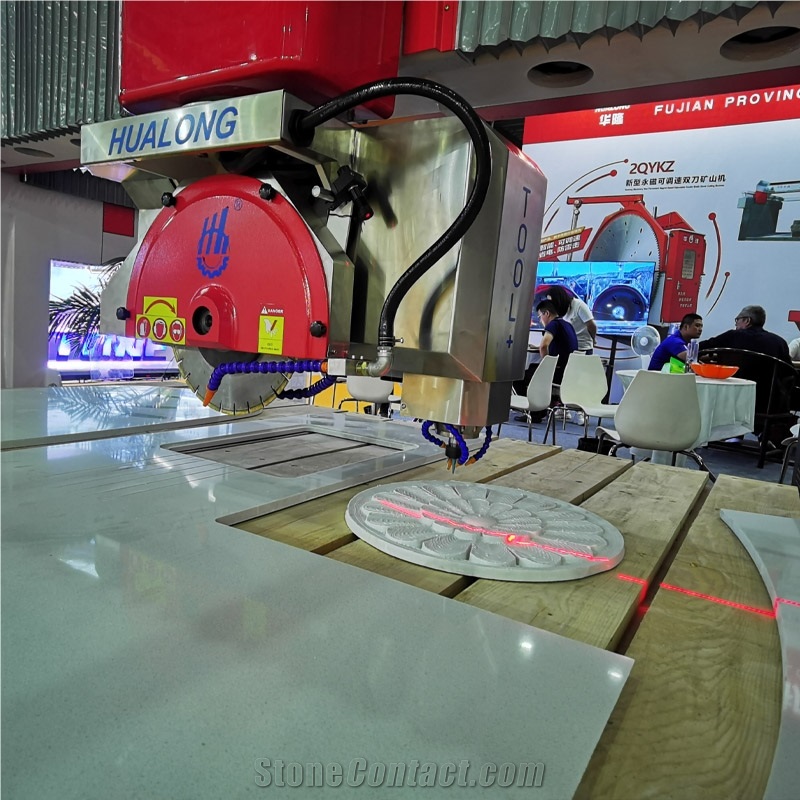

Bas-relief
-
Vanity Tops
-

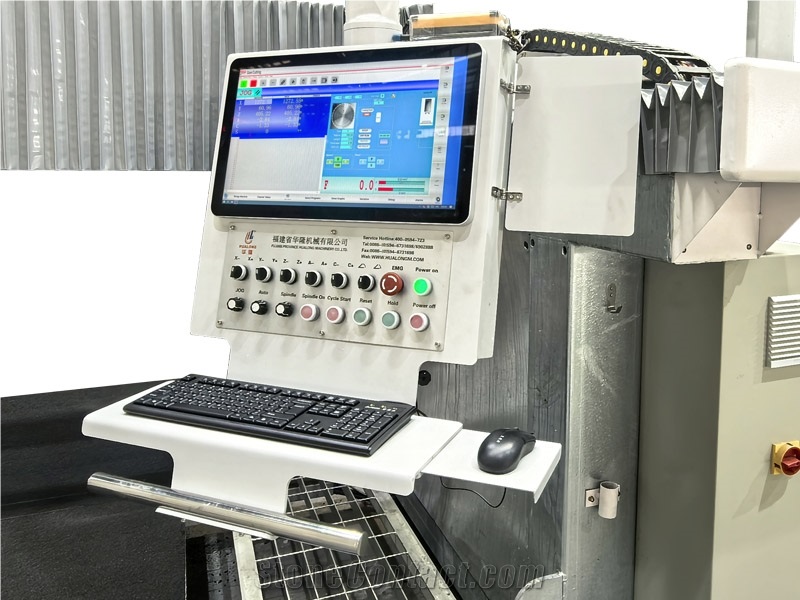

Italian ESA cnc with 21.5" touch screen
-

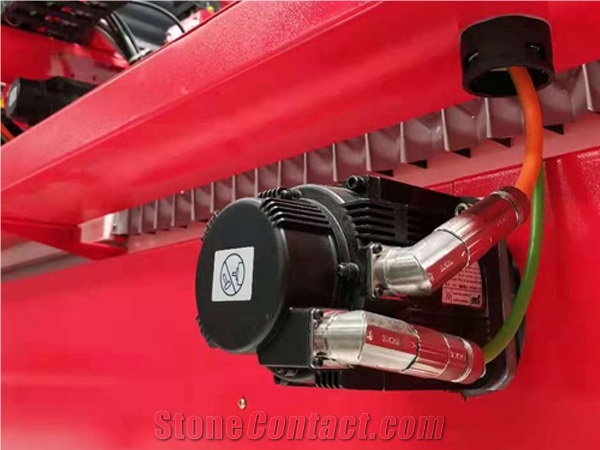

Itlian ESA digital brushless servomotor with
-

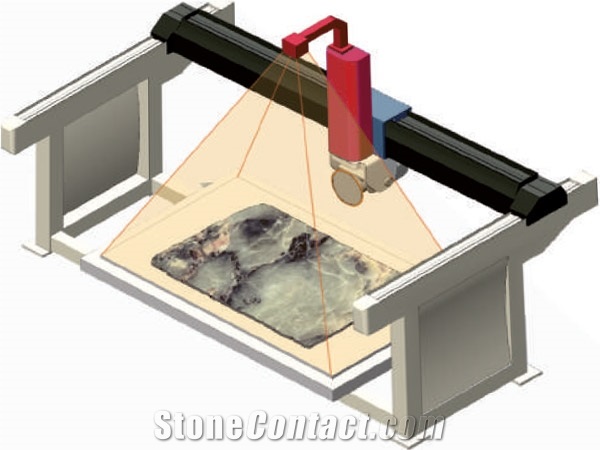

Slab image capture for templates positioning
-

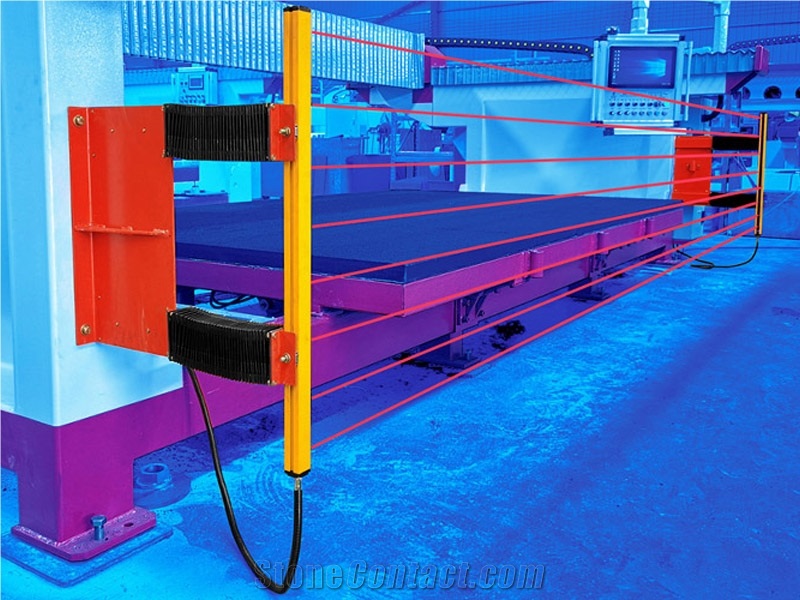

Safe light curtain for preventing work injuries
¥Payment Required -

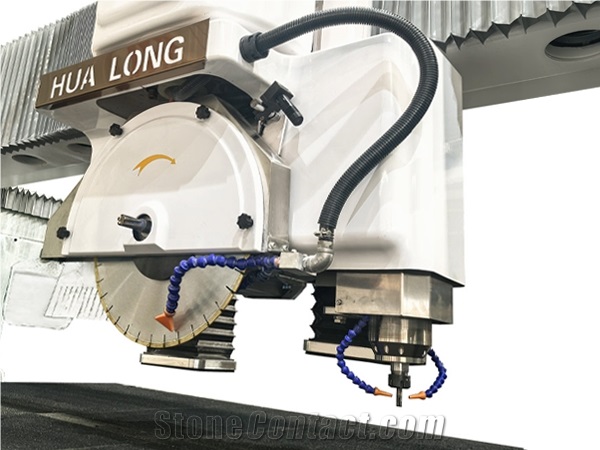

Electro-spindles with internal water passage
-

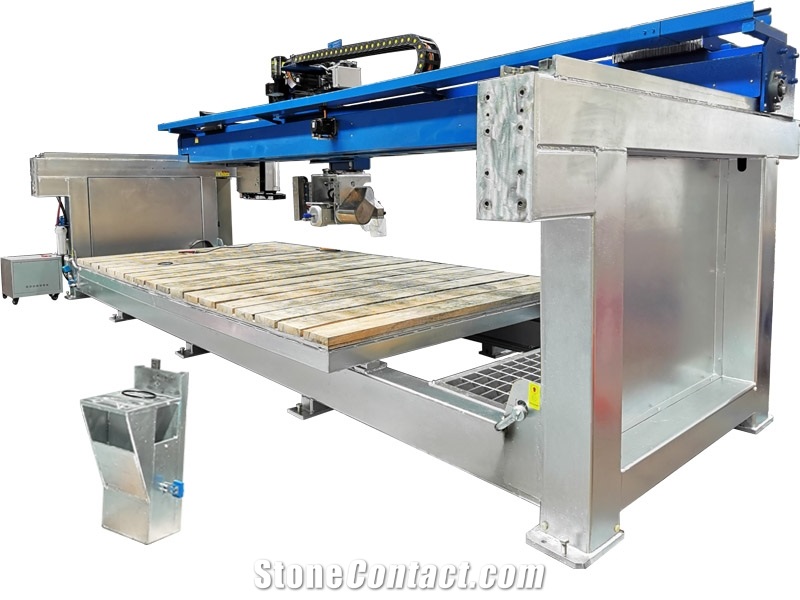

Hot galvanising for corrosion resistance
¥Payment Required -

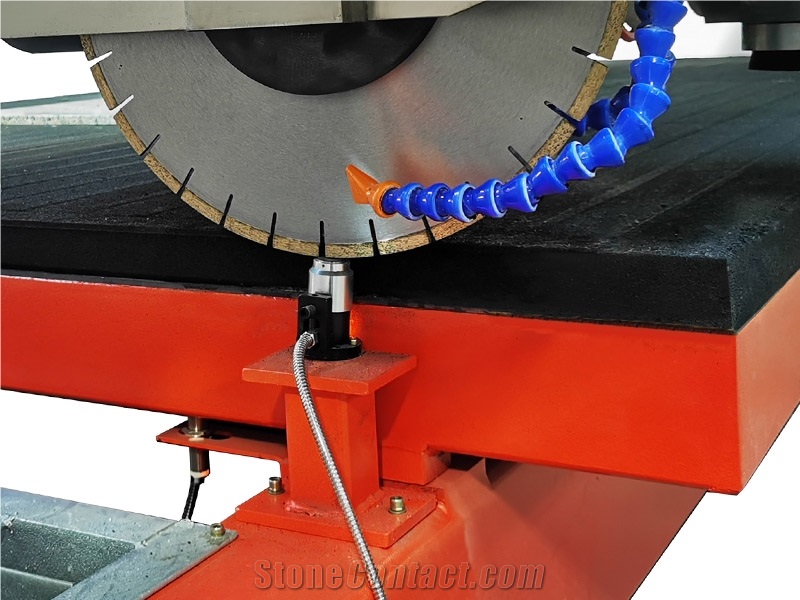

Blade and tool measurement system for presetting
¥Payment Required -

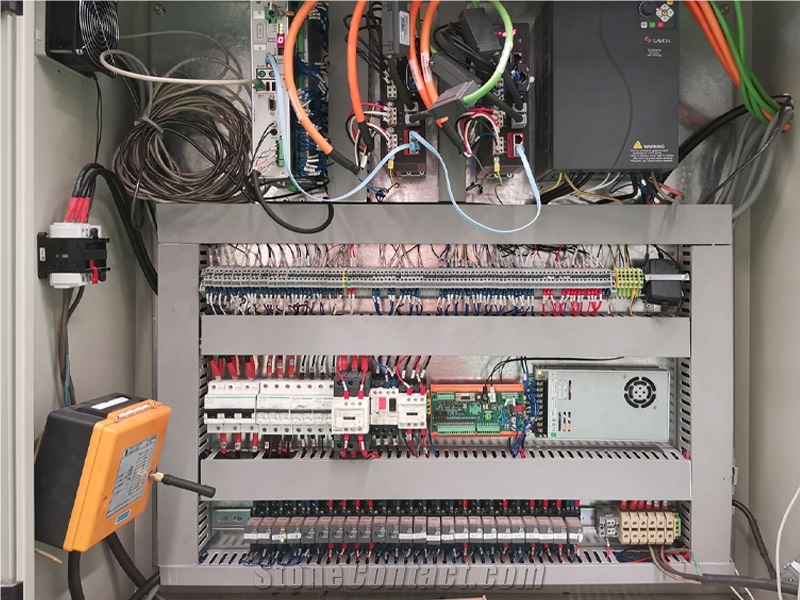

Electrical cabinet
-
Slab thickness probe for 45° cutting operations
¥Payment Required -

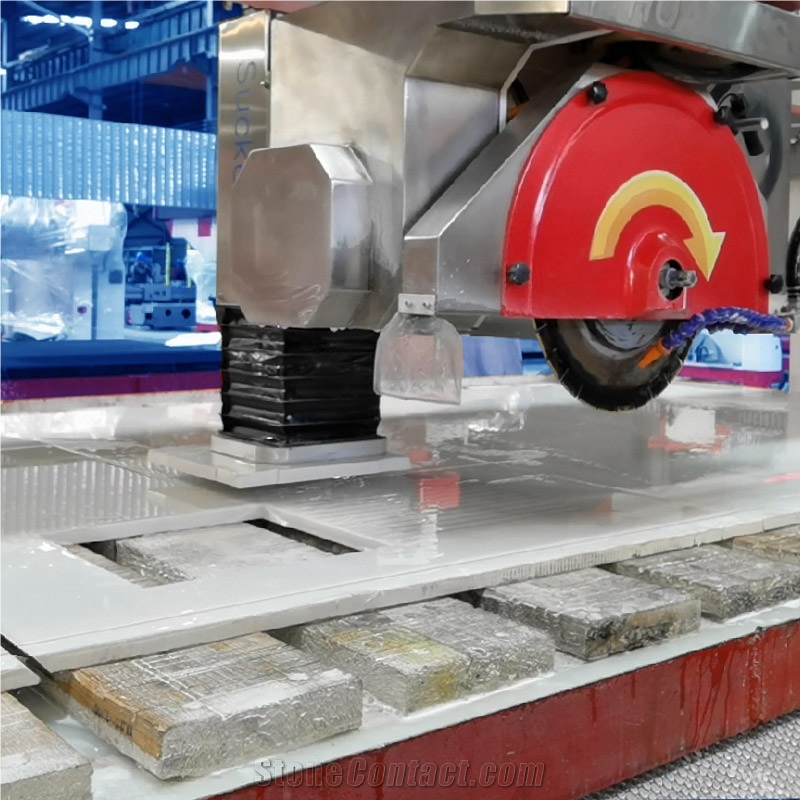

Pneumatic clamp for fixing slab
¥Payment Required -

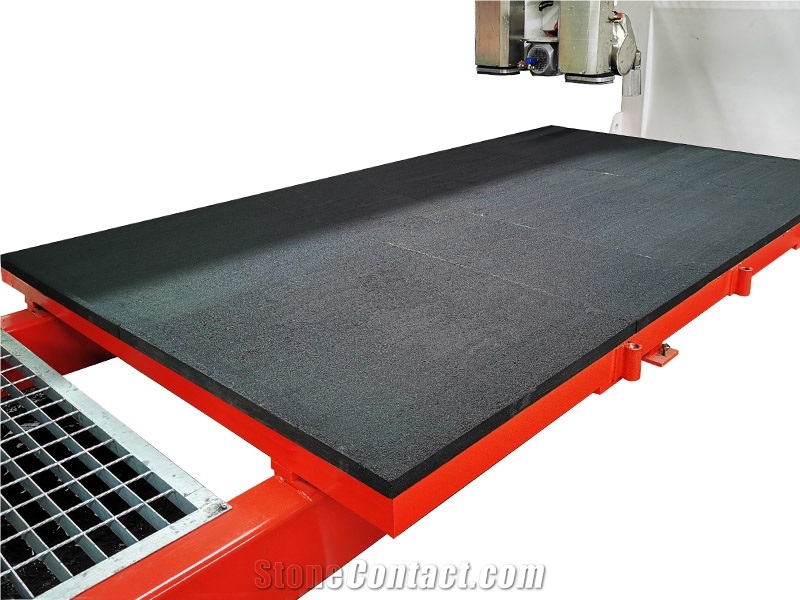

Rubber Platform for waterproof & no deformation
¥Payment Required -

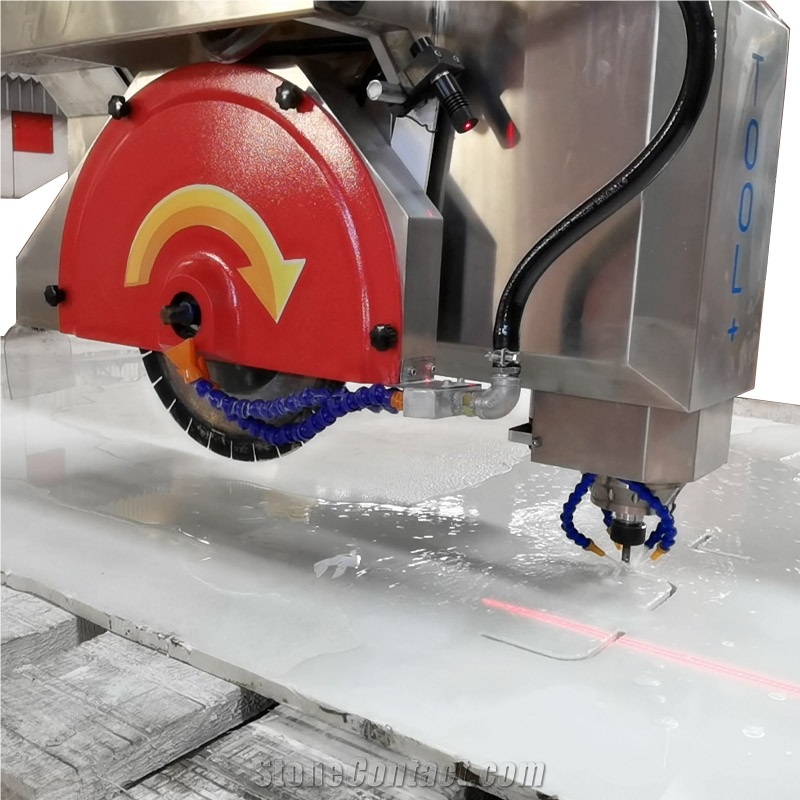

Retractable electro-spindle with 0-24000 rpm speed
¥Payment Required
-

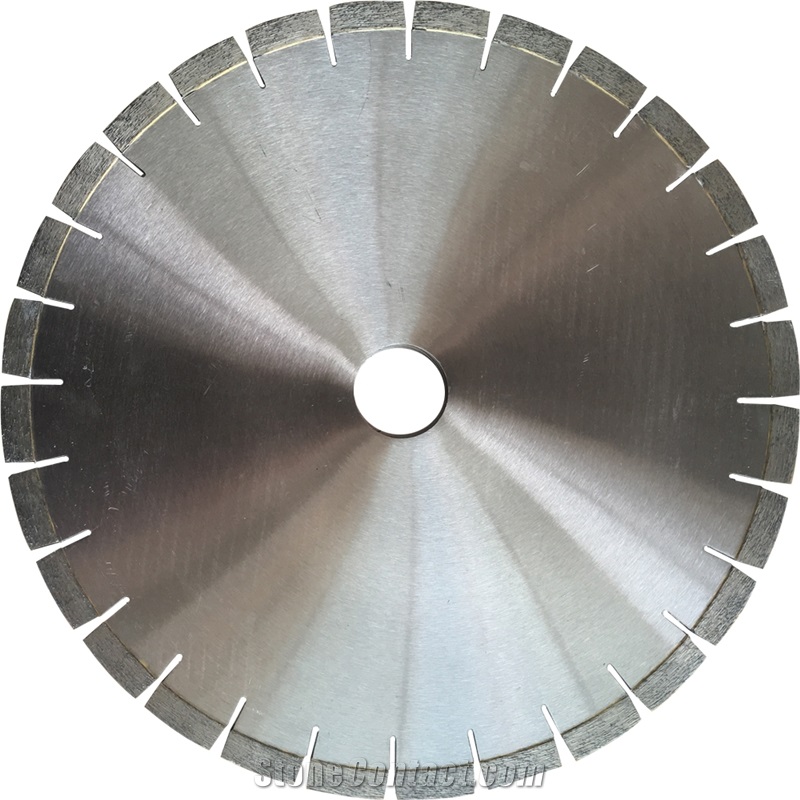

Saw Blade
optional
-

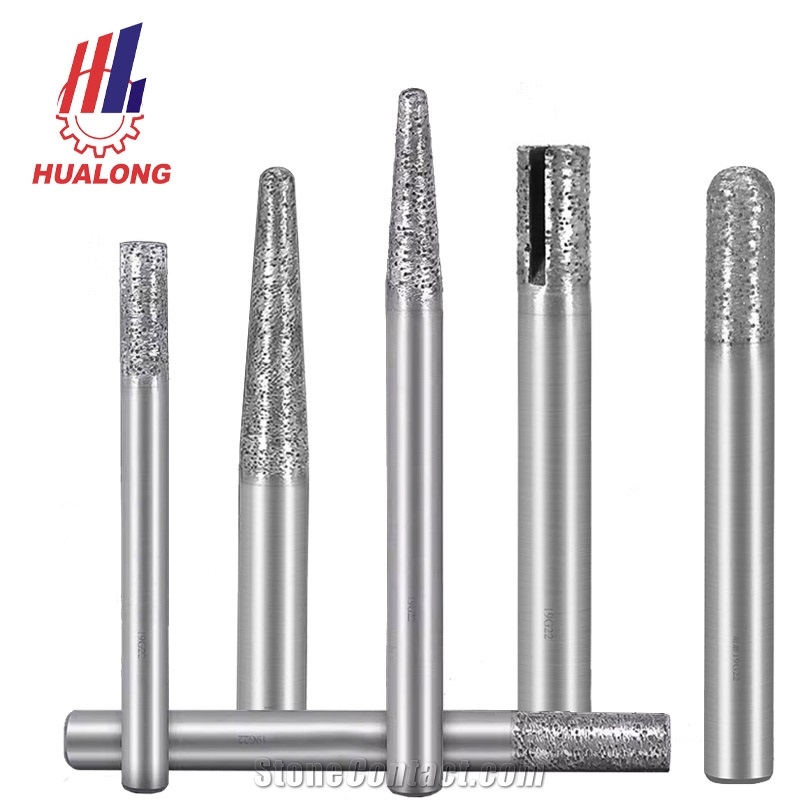

Milling Bits
optional
