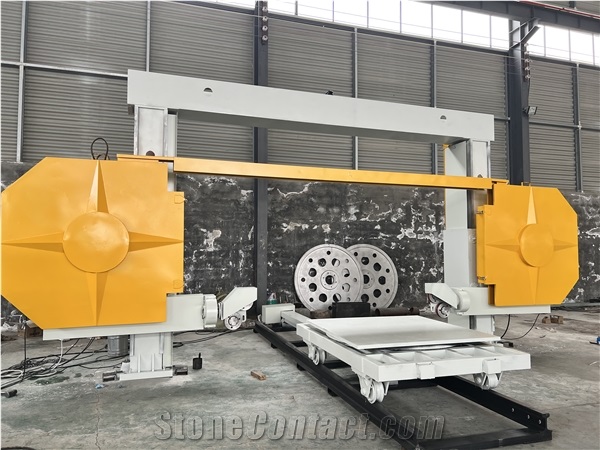

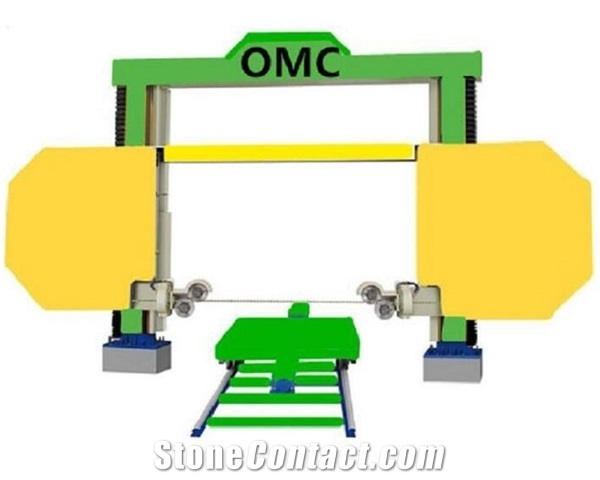

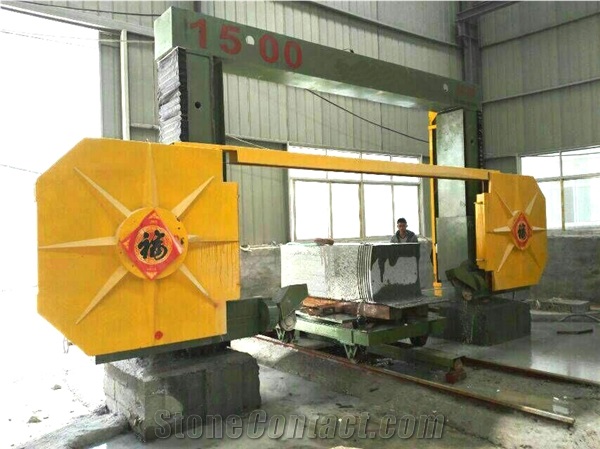

OMC-SJ1500 CNC 4 Axis Diamond Single Wire Saw Granite Cutting Machine- CNC Diamond Wire Shaping Machine
FOB Price:$25500-26500
Type:
Stone Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30day
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Feb 13,2009
Main Product:
Stone Cutting Machine, Stone Polishing Machine, CNC Bridge Saw, Wire Saw, Block Cutting Machine, Stone Processing Machine|
Machinery Function Features
1.Adopt imported “STARFIRE” CNC control system, the program is the most advanced, highly automation and sensitivity.
2.360 degree rotation is optional for the worktable,which makes the adjustment of angle easily.
3.Strong servo motor speeds up the lifting speed.
4.The cart moves through oil-immersed lead screw, high precision and long service life.
Technical Data
Parameters |
Unit |
SJ |
Main motor power |
7 |
15 |
Max. Cutting height |
4 |
1500 |
Slabs nominal thickness |
4 |
10 |
Max. individual diamond wire tension |
26 |
0 |
Machine height (H) |
4 |
3800 |
Machine width (W) |
4 |
6000 |
Cooling water(min. required pressure 3.5 bar) |
32 |
0 |
Dim. Trolley Size/Worktable size |
4 |
1500*1700 |
Production efficiency 20mm thick. |
70 |
2 |
Voltage/Frequency |
82 |
380/50 |
Installed electrical power |
7 |
15 |
Pitch groove wire driving |
4 |
0 |
Max. Number of wires for sawing 20mm thick. |
73 |
1 |
Max. Cutting width |
4 |
2000 |
Wires set width |
4 |
4 |
Worktable load capacity |
25 |
2 |
Worktable max. rotate angle |
64 |
360 |
Max. Cutting length |
4 |
3000 |
Diamond wires speed |
16 |
0-40 |
Output number of slabs 20mm per linear mt. |
73 |
0 |
Wire pitch for sawing 20mm thick. |
4 |
5 |
Approximative Weight |
Kg |
7500 |
Diamond bead diameter |
4 |
8 |
Machine length (L) |
4 |
7000 |
Wire pitch for sawing 30mm thick. |
4 |
5 |
Max. Number of wires for sawing 30mm thick. |
73 |
1 |
Output number of slabs 30mm per linear mt. |
73 |
0 |
Diamond wire length |
mm |
16000 |
Fast lowering unit power |
7 |
2 |
Work Example
1.Adopt imported “STARFIRE” CNC control system, the program is the most advanced, highly automation and sensitivity.
2.360 degree rotation is optional for the worktable,which makes the adjustment of angle easily.
3.Strong servo motor speeds up the lifting speed.
4.The cart moves through oil-immersed lead screw, high precision and long service life.
