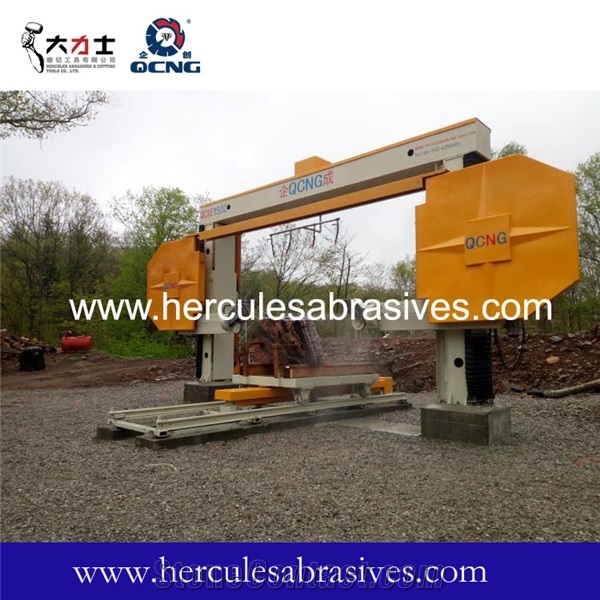

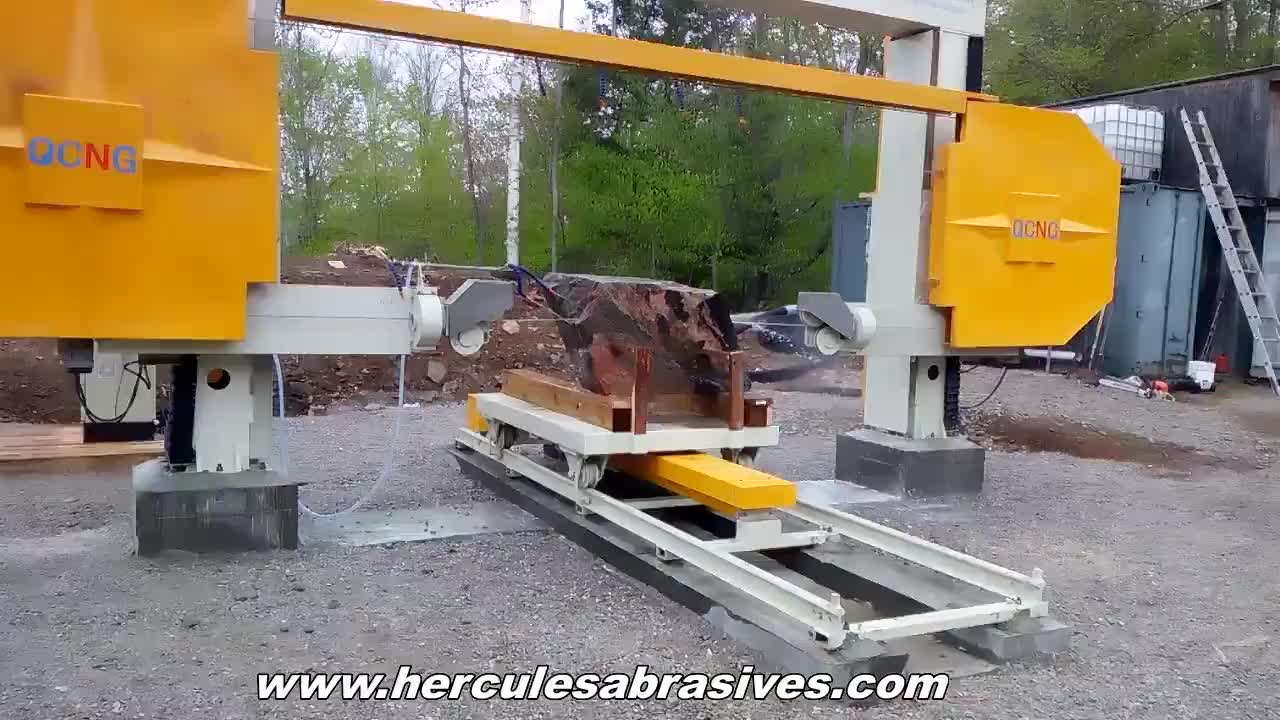

QCXE-1500 cnc wire saw machine
FOB Price:$27000-45000
Type:
Stone Factory MachinesStone Block Cutting MachinesCNC Diamond Wire Shaping Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
3 weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
Eatablished :Aug 03,2009
Main Product:
Diamond Wire, Diamond Segment, Diamond Saw Blade, Polishing Abrasives, Wire Saw Machine, Block Cutting Machine, Drill Bit Drill Rod Dth Hammer|
Machinery Function Features
This machine major in cutting slabs and profiling granite and marble. It can cut different sizes of straight slab, arc slab, solid columns and hollow columns and large-scale stone line, letter etc
Technical Data
Parameters |
Unit |
QCXE-1500 |
QCXE-1800 |
QCXE-2200 |
Min. water pressure required |
bar |
25 |
25 |
25 |
Diameter of new diamond wire |
mm |
7.3~11.0 |
7.3~11.0 |
7.3~11.0 |
Max. inclination of the wire-driving unit |
Gradi Degrees |
no |
no |
no |
Total installed power |
kW |
19.38 |
19.38 |
24.03 |
Block max. weight |
kg |
20000 |
30000 |
50000 |
Wire-driving unit rotation |
Gradi Degrees |
no |
no |
no |
Total water requirements |
l/min |
50 |
50 |
50 |
Diamond wire length |
mm |
18100 |
19300 |
21250 |
Block-holding trolley travel |
mm |
2300 |
3500 |
3500 |
Max. span for horizontal passage between the wire driving pulleys |
mm |
3300 |
3600 |
3600 |
Overall dimensions (without perimeter fencing) lenght |
mm |
7500 |
8800 |
9800 |
Block-holding trolley dimensions |
mm |
1360x2000 |
1800x2000 |
3000x2000 |
Horizontal travel of the wire-driving unit |
mm |
2300 |
3500 |
3500 |
Block max. widht |
mm |
3200 |
3500 |
3500 |
Block length |
mm |
2000 |
2000 |
2000 |
Overall height |
mm |
3800 |
4800 |
5200 |
Overall widht |
mm |
6000 |
6800 |
7000 |
Block max. height |
mm |
1500 |
1800 |
2100 |
Speed of wire lifting/lowering |
mm/h |
0-1800 |
0-1800 |
0-1800 |
Approximative Weight |
kg |
7000 |
10500 |
14000 |
Wire actuating motor power |
kW |
11 |
11 |
11 |

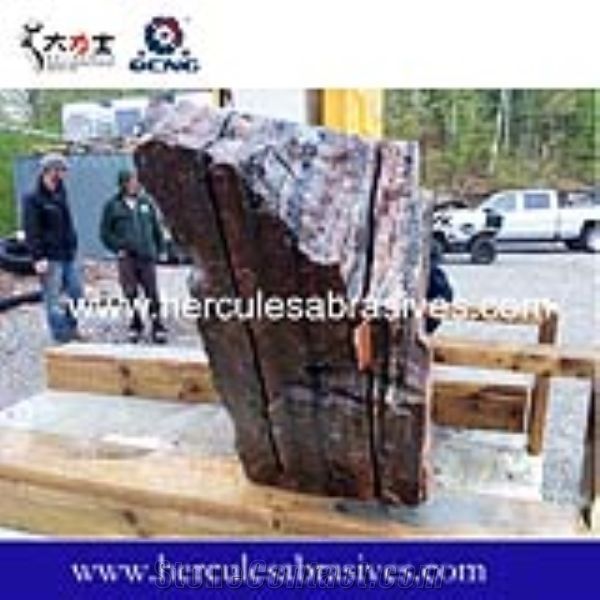

Processed Stone Photos
-
slab cutting
-

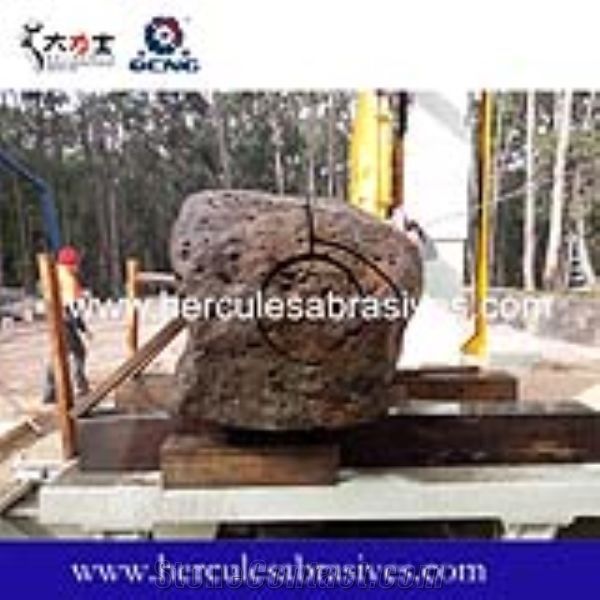

profiling
Components
-
main machine part
¥Payment Required -

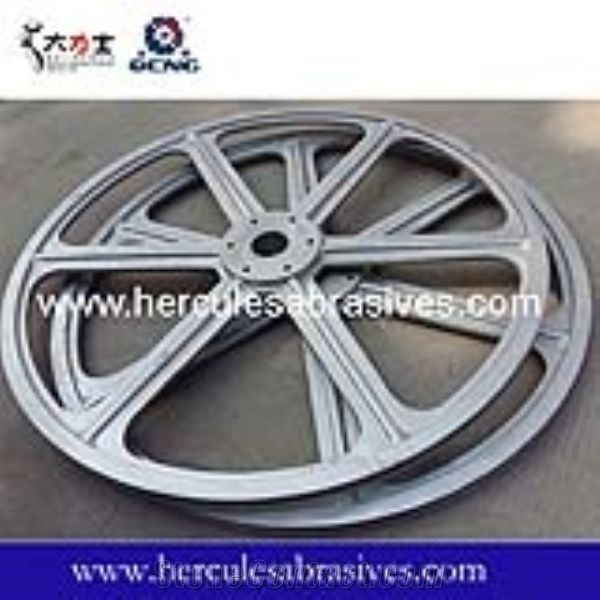

flywheel
¥Payment Required -
trolley
¥Payment Required
Consumables
-

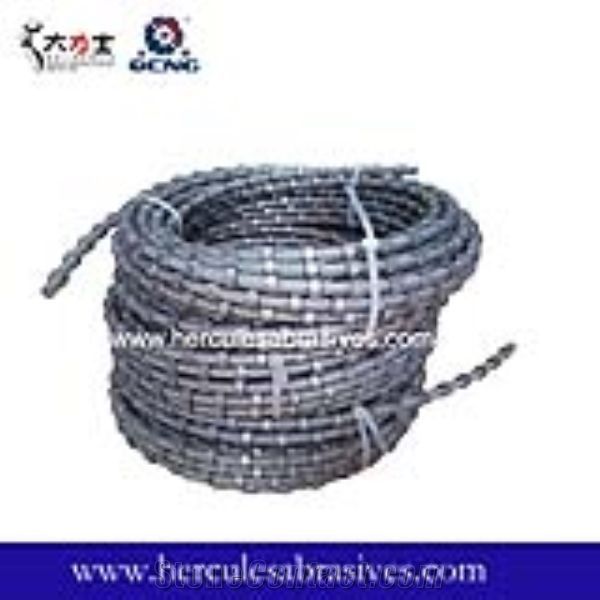

diamond wire
8.5/8.8/10.5/11.0mm
-

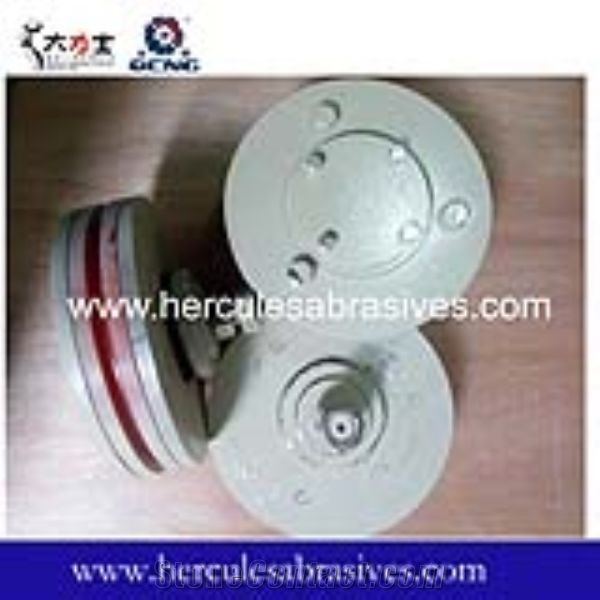

pulley
-

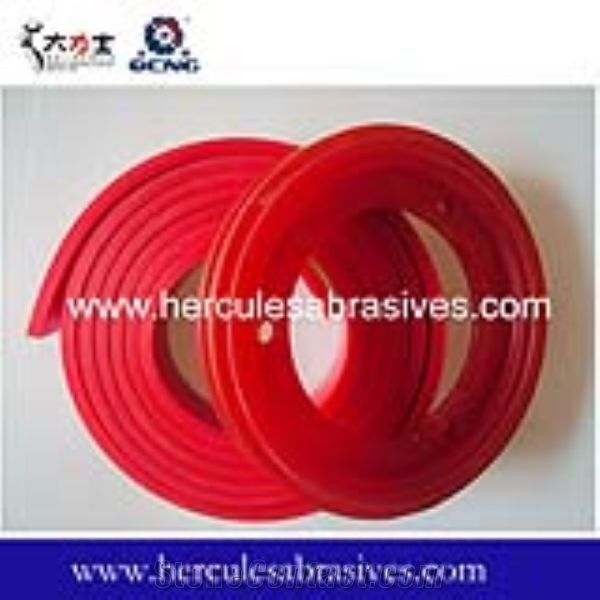

rubber belt/ring
