ICON400 CNC 5Axis Marble Granite Stone Bridge Saw Camera Layout

Name: ICON400 CNC 5Axis Marble Granite Stone Bridge Saw Camera Layout
Brand: Laizhou Oriental Machinery Co.,Ltd
SKU: 5798
Price: 27800 USD
Availability: InStock

FOB Price:$27800-33800

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Sandstone

After-Sale

Lead Time: 30 working days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

Laizhou Oriental Machinery Co.,Ltd

OMC

China

Eatablished :Aug 07,1996

Main Product:

OSC-H, OSC-SP, OSC-TITAN, OSC-Galaxy, OSC-Voyage, OMC-DTM|

Contact supplier

Start Order

You may also like

Tango - Cnc Bridge Saw with Two Heads

Kerb Stone Edge Cutting Machine With Two Worktables

CNC Bridge Cutter Machine For Cutting Granite DFQ-Z1200

Best 5 Axis Italian CNC Bridge Marble Cutting Machine For Countertops

5 Axis 4 Axis CNC Stone Marble Granite Tilting Head Cutting Machine

Product Detail
Company Profile

Overview

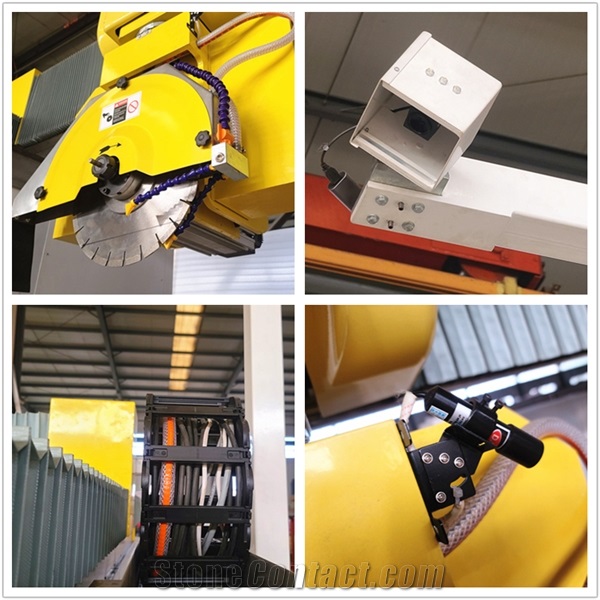

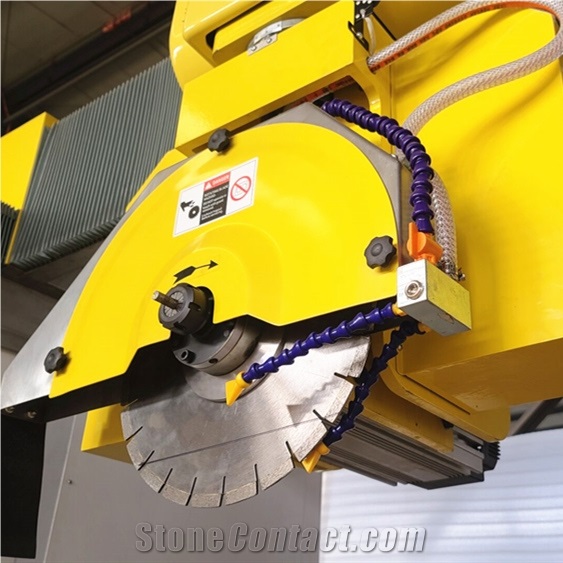

Components
Video

Machinery Function Features

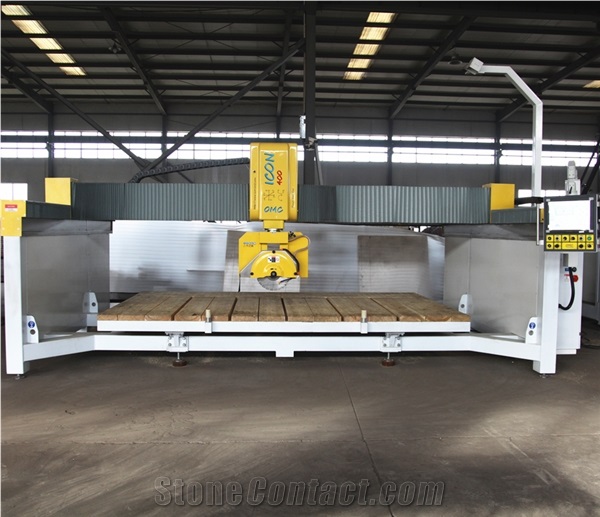

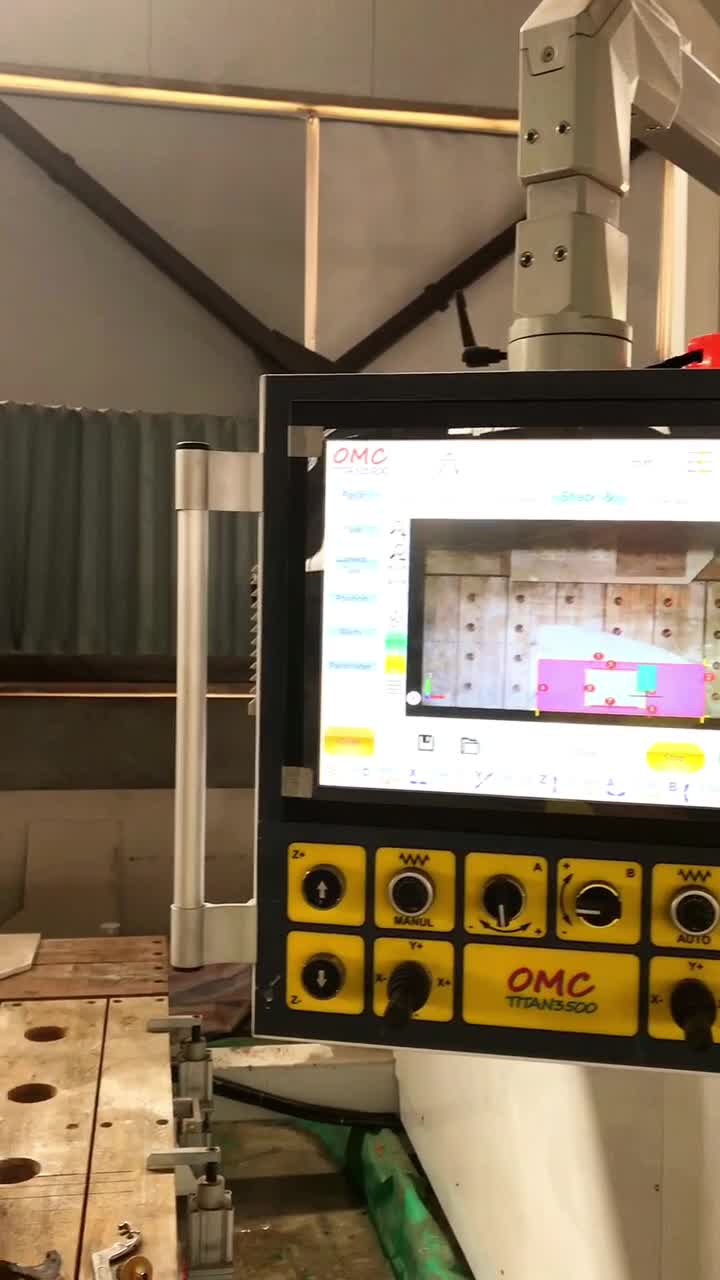

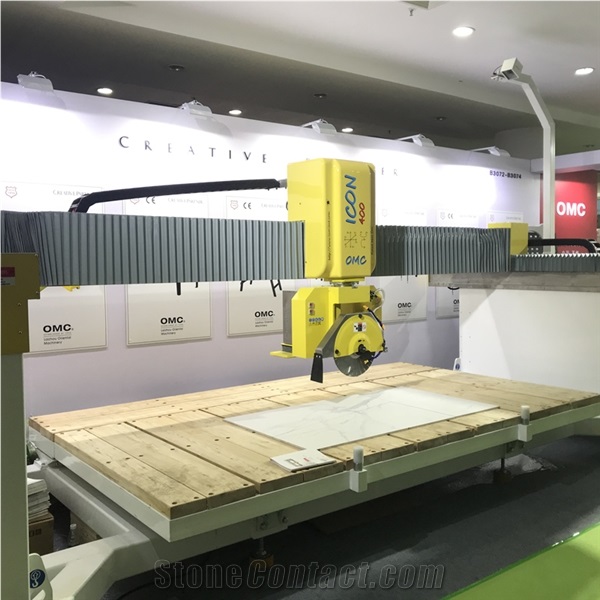

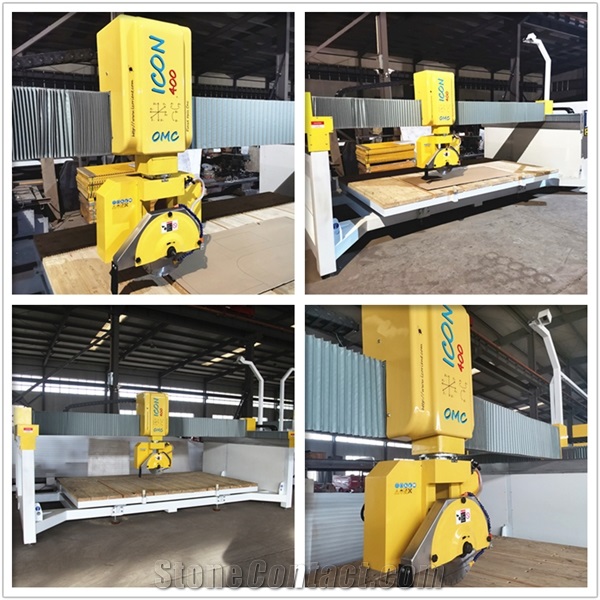

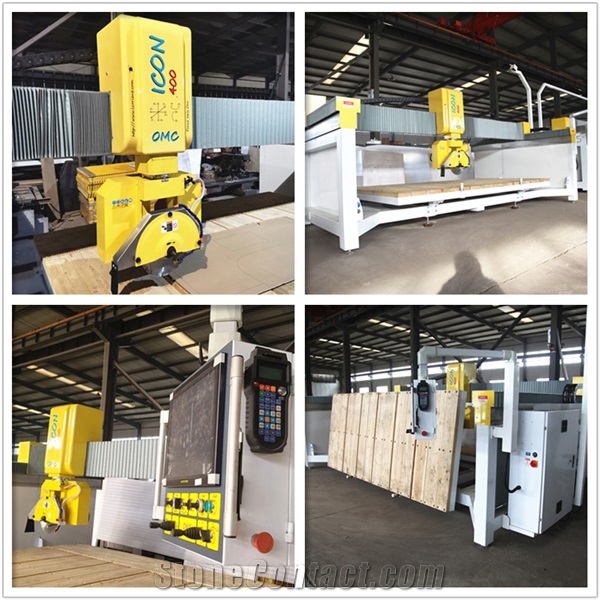

ICON400 CNC 5 Axis Stone Bridge Saw It is the new generation multi-function stone processing machine which is jointly developed by OMC and famous universities and research institutes. CNC control system synchronized with Italian technology system,pure touch screen operation which can be easily operated without knowing complicated CNC knowledge. This machine can realize many advanced functions:straight and arc chamfering, cutting, drilling, milling,profiling,3D profiling and edge profiling,which are widely used by small processing factory,kitchen countertop and home decoration shops. It is designed to realize X-Y-Z-A-B 5 axis linkage with more wider utilization.It adopts high quality servo motors and other electrical components,high precision linear guide rail,compact structure and small area coverage.

Technical Data

Parameters	Unit	ICON400
Number of vertical cutting spindles	nr	1
Vertical cutting spindles motor power	kw	7.5
Min.dimensions of the liftable piece	mm	100x100
Disc diameter	mm	400
Hydraulic station motor power	kw	2.2
Head motor power	kw	7.5
Max.length of the cut slab	mm	3500
Machine length	mm	5800
Worktable turn-over degree	°	80
Machine width	mm	3500
Max. dimensions of the liftable piece	mm	3500x2000
Max.width of the cut slab	mm	2000
Dimensions of the work table(L×W)	mm	3500x2000
Worktable Weight	Kg	4000
Machine height	mm	3300
Average level of equivalent sound pressure	dB	80
Center-to-center distance 5-axis head/vertical cutting spindles	mm	3500
Bridge transversal stroke(Y axis travel)	mm	1.8
Horizontal stroke speed(X axis displacement speed)	m/min	8000
Disc motor power	kw	7.5
Max. liftable weight with all the vacuum cups activated	Kg	1000
Crossbeam motor power	kw	1.8
Max. cutting depth	mm	80
Approximate weight without table	Kg	4000
Max. workable thickness	mm	80
Z-axis working travel vertical cutting spindles	mm	1.2
Tools holder head inclination(A axis blade rotation)	°	90
Center-to-center distance vertical cutting spindles	mm	2000
Head raising/lowering stroke(Z axis travel)	mm	1.2
Vertical stroke speed (Z displacement speed)	m/min	1000
Max. dimensions of the piece for “rodding” application	mm	3500x2000
Installed electrical power	kw	16
C axis blade rotation	°	90
Cooling water requirement(1.5 bar min. pressure)	L/min	15
Max number of interpolated axes	nr	5
Horizontal stroke(X axis travel)	mm	3500
Air consumption	m3/h	5
Transversal stroke speed (Y displacement speed)	m/min	8000
Max. revolutions of the spindle unit	r/min	6000
