KXJ1500A/1800A/2200A Block Trimming Mono Wire Saw Machine
FOB Price:$26000-38000
Type:
Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
60working days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 10,2011
Main Product:
Wire Saw Machine, Bridge Saw, Sink Hole Machine, Polishing Machine, Quartz Machine, Stone Tools|
Machinery Function Features
The machine is used for cutting slabs and squaring block.
Technical Data
Parameters |
Unit |
KXJ1500A |
KXJ1800A |
KXJ2200A |
Worktable load capacity |
T |
20 |
30 |
30 |
Cooling water requirements |
L/min |
30 |
30 |
30 |
Approximative Weight |
Kg |
7000 |
9000 |
10500 |
Diamond wire linear speed |
m/min |
30 |
30 |
30 |
Machine Width (W) |
mm |
5300 |
6500 |
6500 |
Diamond bead maximum diameter |
mm |
11 |
11 |
11 |
Block max. cutting width |
mm |
3500 |
3500 |
3500 |
Diamond wire length |
mm |
17300 |
19300 |
21250 |
Main motor power |
kw |
11 |
15 |
15 |
Maximum diamond wire tension |
Kg |
350 |
350 |
350 |
Machine height (H) |
mm |
3950 |
4750 |
5650 |
Machine length (L) |
mm |
8200 |
8800 |
9800 |
Installed/Fast lowering unit power |
kw |
19.94 |
23.94 |
23.94 |
Block max. cutting height |
mm |
1500 |
1800 |
2100 |
Length of rail coupling for trolley |
mm |
5000 |
6250 |
6250 |
Components

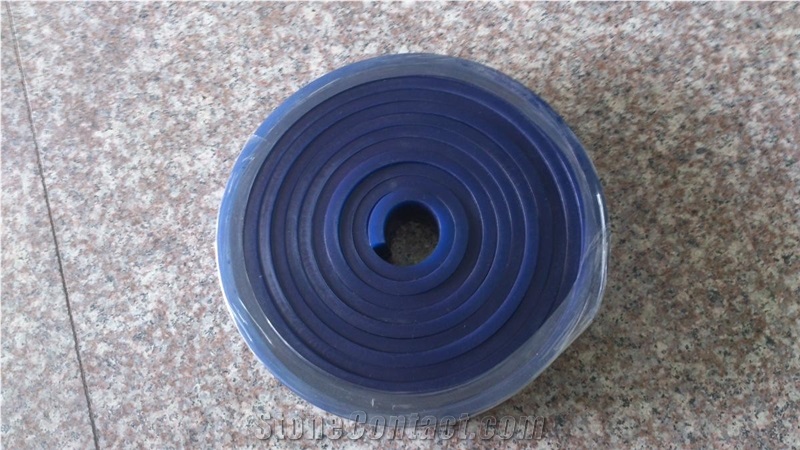

Consumables
-
rubber wheel
rubber of guide wheel
-
rubber insert
rubber of big flywheel

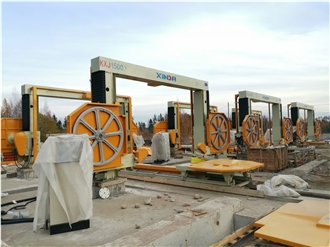

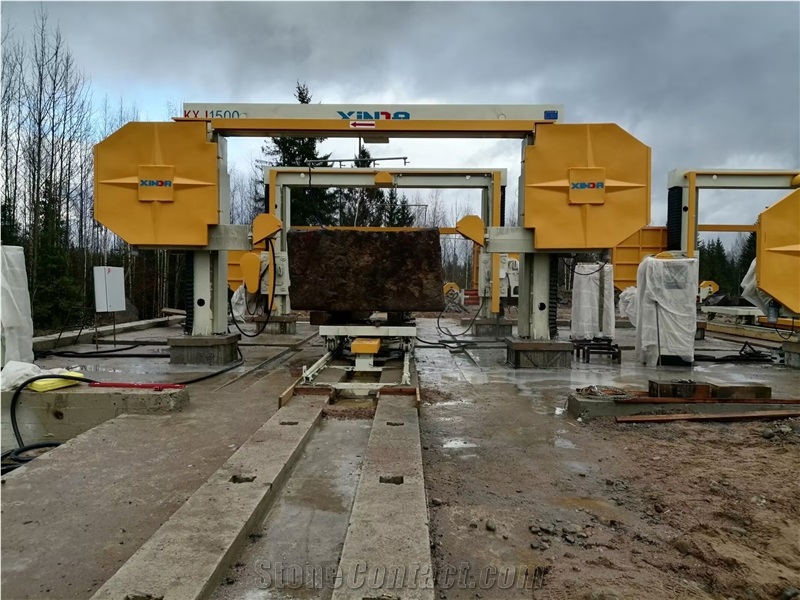

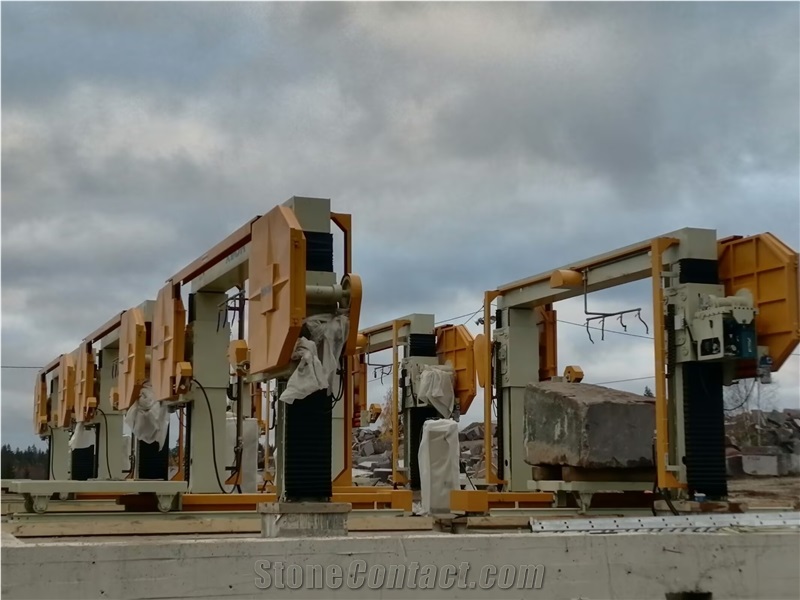

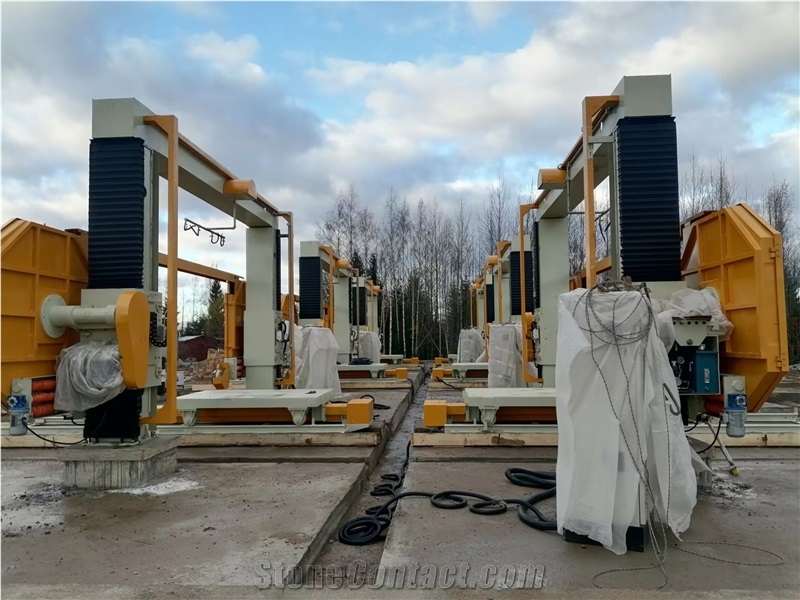

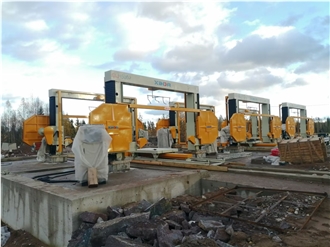

Customer Case
