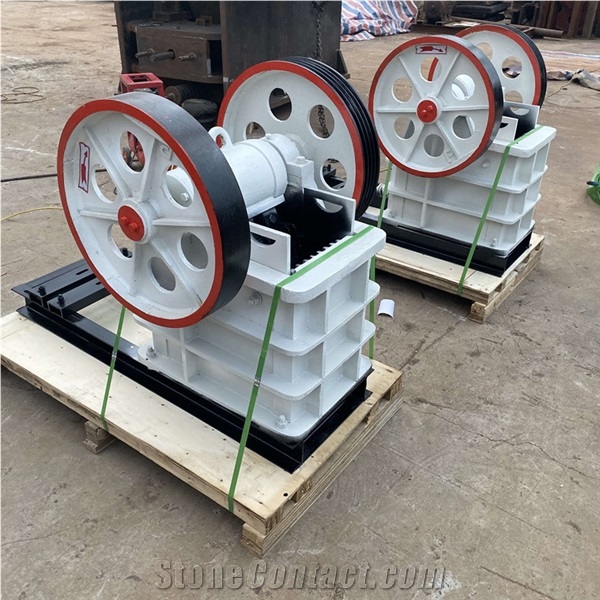

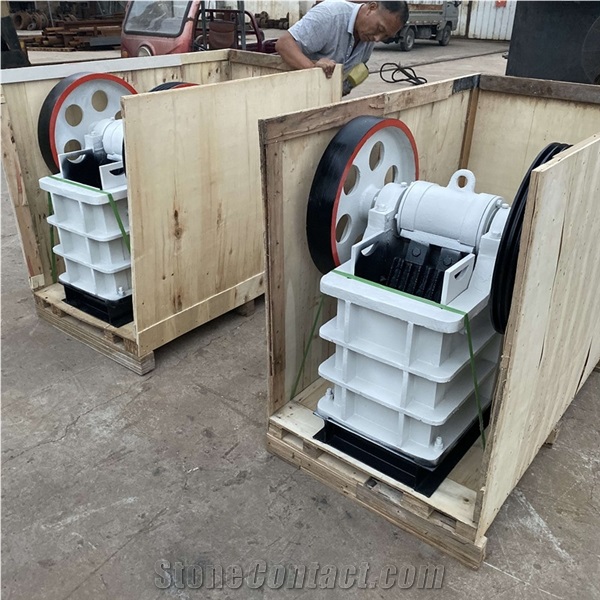

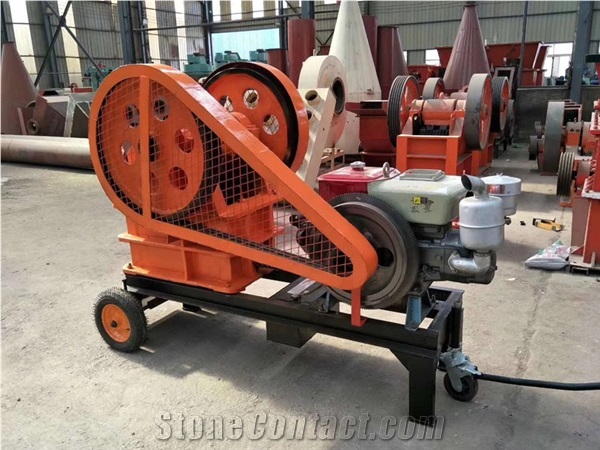

Diesel Engine Jaw Crusher

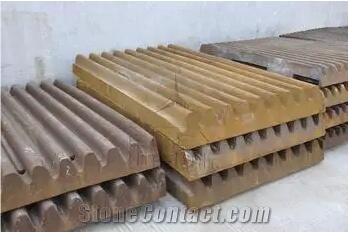

Jaw crusher is commonly known as jaw crusher, also known as tiger mouth. The crushing chamber is composed of two jaw plates, the movable jaw and the static jaw, and the crusher completes the material crushing operation by simulating the movement of the two jaws of animals. It is widely used in the crushing of various ores and bulk materials in mining and smelting, building materials, highways, railways, water conservancy and chemical industries. The maximum compressive strength of the crushed material is 320Mpa. During work, the motor rotates the eccentric axis through the belt wheel, so that the jaw cycle approaches and leaves the jaw, so that the materials are squeezed, rubbed, and crushed to make the materials from large to small, and gradually fall from the discharge until the discharge of the discharge. Model: PE-200*300 Feeding Inlet Size: 200*300mm Max.Feeding Size: 180mm Discharge Outlet Adjustment Range: 15-50mm Capacity: 2-6t/h Eccentric Shaft Speed: 260r/min Motor Power: 7.5kw Weight: 1.2t Dimensions: 910*750*990mm
