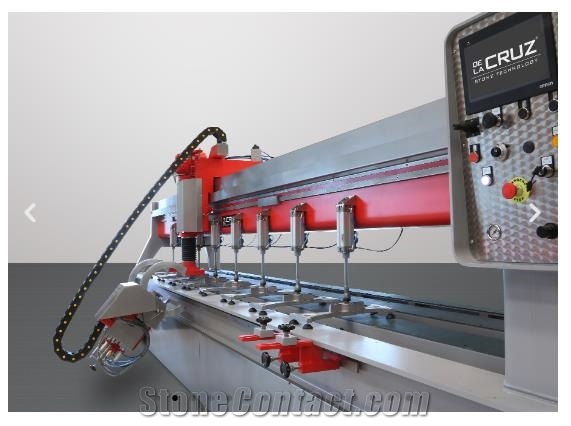

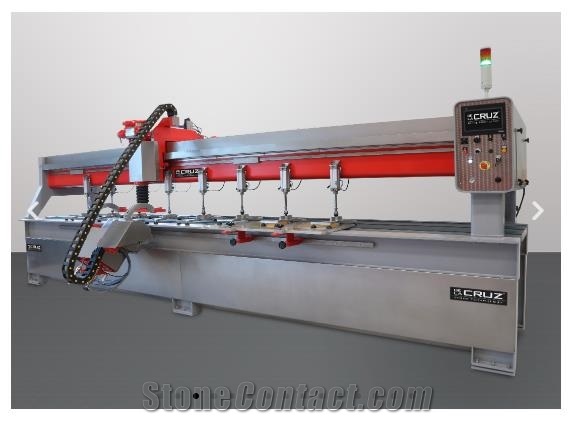

Double Head MILLENNIUM Edge Polisher Machine

Name: Double Head MILLENNIUM Edge Polisher Machine
Brand: Cruz CNC Technology S.A.
SKU: 5905
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine

Usage: Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Remote troubleshooting, Field troubleshooting

Supplier

Cruz CNC Technology S.A.

Cruz CNC

Spain

Eatablished :Jun 01,1970

Main Product:

CNC Machines, Bridge Cutting Machines, CNC Work Center|

Contact supplier

Start Order

You may also like

MILLENNIUM Double Head edge polisher

Bevel And Straight Side Stone Polishing Machine(Vertical Type)

CNC Gantry Edge Grinding Machine

Edge Grinding Polishing Machine

Auto-Follow Round Table Stone Shape Edge Grinding Polishing Machine

Product Detail
Company Profile

Overview

Machinery Function Features

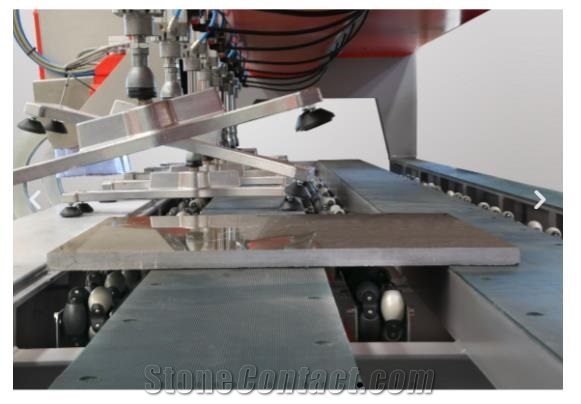

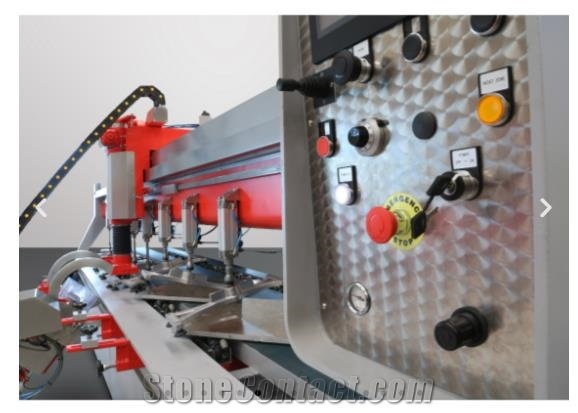

Double Head MILLENNIUM Edge Polisher performs a wide variety of edges at high speed, with low tool cost and minimal maintenance. Modern touch screen and EasyEdge software make the use of the Double Head MILLENNIUM easy and intuitive. The Double Head MILLENNIUM has a calibrating motor for automatic tool pressure adjustment and a polishing motor with automatic tool wear control. The machine's work table is equipped with a roller system that allows the material to rotate 360°, a pneumatic system for reliable material fixing, and an intelligent safety system.

Technical Data

Parameters	Unit	MILLENNIUM Edge Polisher 2HD
X Axis	mm	3600
Machine overall length	mm	6000
Min. Cooling water pressure	bar	6
Approx. Weight	Kg	4600
Rotation power	kW	0.2
Belt advancement speed	m/min	60
Total power	kw	7.2
Power of the disk for drip groove execution	kw	2.4
Grinding tool diameter	mm	100-130
Dressing/polishing spindle power	kw	2.2
Z Axis	mm	10mm (min) – 100mm (max)
Raise/lower power	kW	0.2
Number of dressing/polishing spindles	nr	2
Voltage / Frequency	V	400 V./ 50-60 Hz
Machine overall width	mm	2800
Y Axis	mm	1350
Machine overall height	mm	2600
Water consumption	L/min	10
Belt advancement power	kw	2.2
