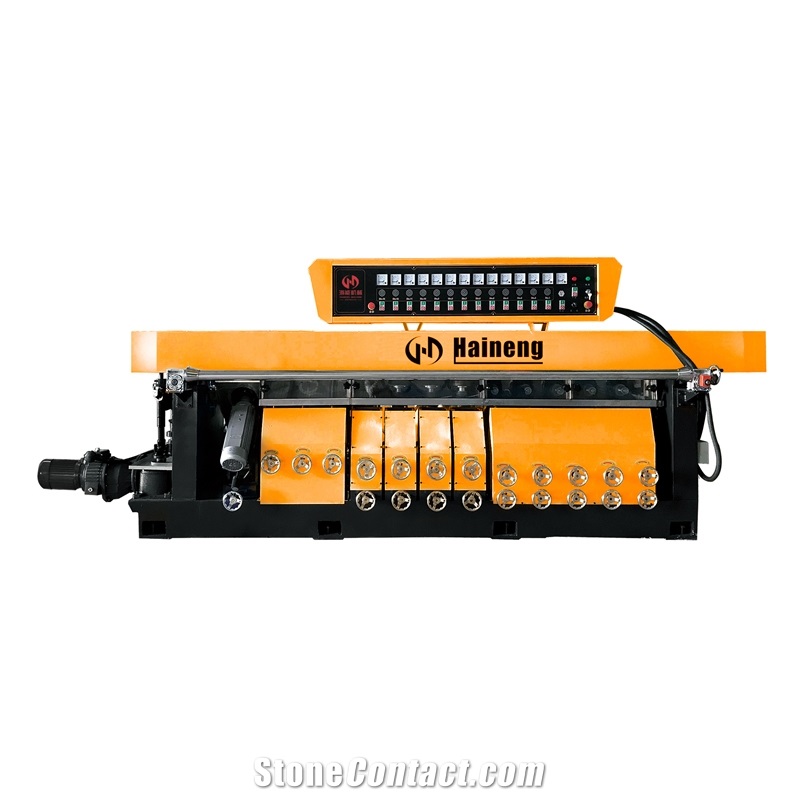

Bevel And Straight Side Stone Polishing Machine(Vertical Type)

FOB Price:$11500-12000

Type: Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 30 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

Eatablished :Apr 13,2017

Main Product:

Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

Contact supplier

Start Order

  • Overview
  • Components
  • Video
Machinery Function Features

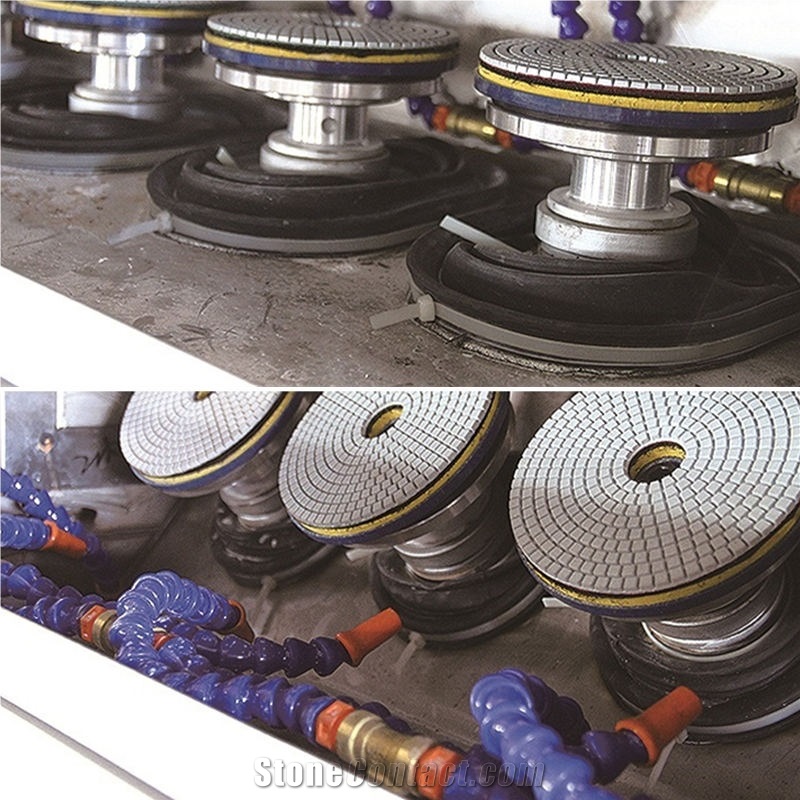

This machine is used to polish the straight edge and 45 ° bevel, slot and polish inside a slot of stones. Skirting,planning thickness and polishing for various irregular shaped edge (such as rounded edge, French edge, ogee, etc,) are also within the working range of this machine. The polishing wheel works in a way that interchanges snailed dish ( attached with fiber polishing disc with abnormality wheels(electroplate/sintering/ resin wheels), which is convenient for assembling/disassembling. Processed stones have high glossiness (lighter than the slab face)consistent angles and lines. The machine has a low rate of malfunction, and the operating of the machine is easy to learn, All of these makes it a second to none type of machine for a stone deep processing factory.
Technical Data
Parameters
Unit
DZP-9
DZP-11
Gross power
kw
30.7
36.7
Gross weight
kg
3000
3500
Working speed
m/min
0.8-5
0.8-5
Remark
5×Straight edge polishing; 4×Front bevel4. All manual
6×Straight edge polishing; 4×Front bevel +1×Back bevel All manual
Working width
mm
100-2000
100-2000
No.of polishing wheel
pcs
9
11
Overall size (L*W*H)
mm
6500×1300×2000
7500×1300×2000

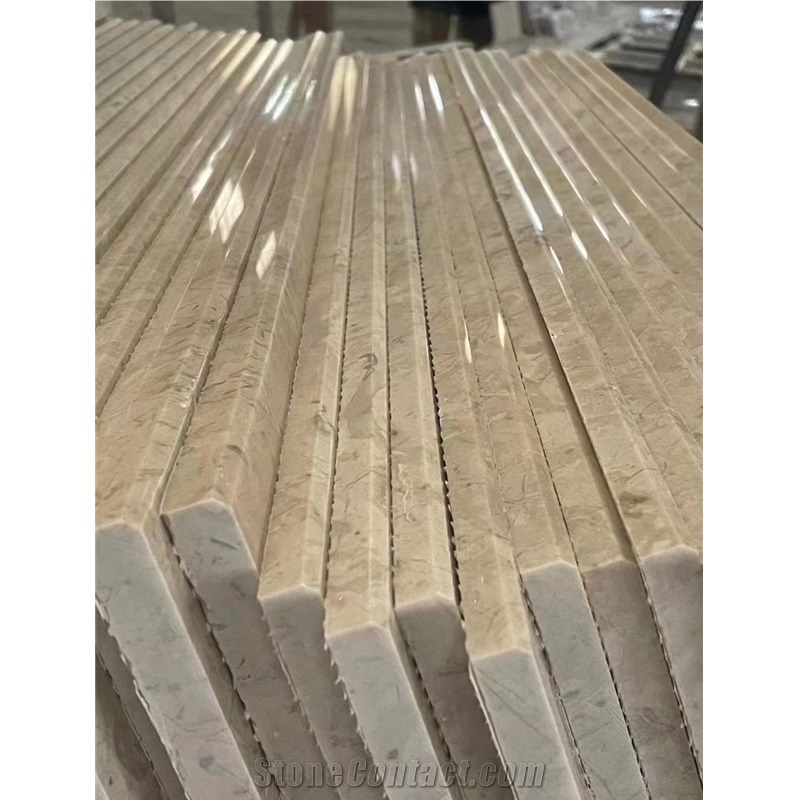

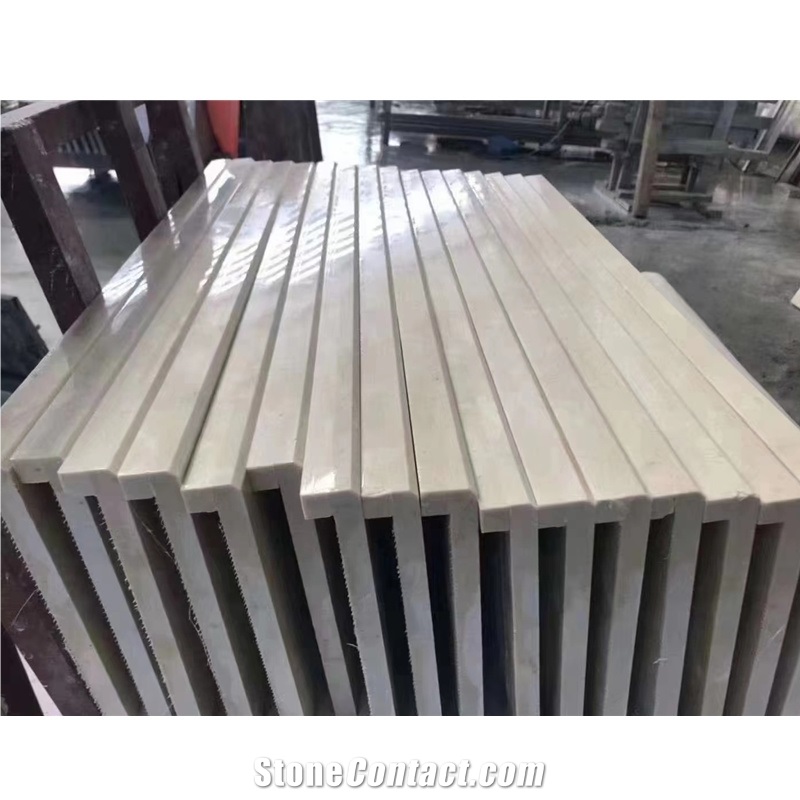

Processed Stone Photos
  • Processed Stone Photos

  • Processed Stone Photos

Components

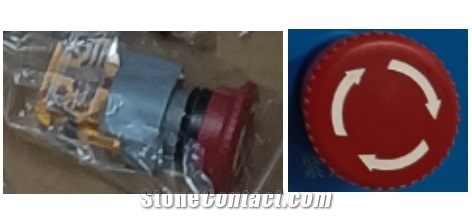

  • emergency stop switch

    emergency stop switch

    ¥Payment Required
Consumables

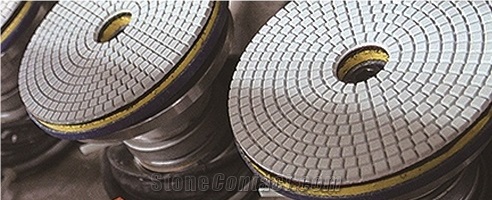

  • polishing pad

    polishing pad

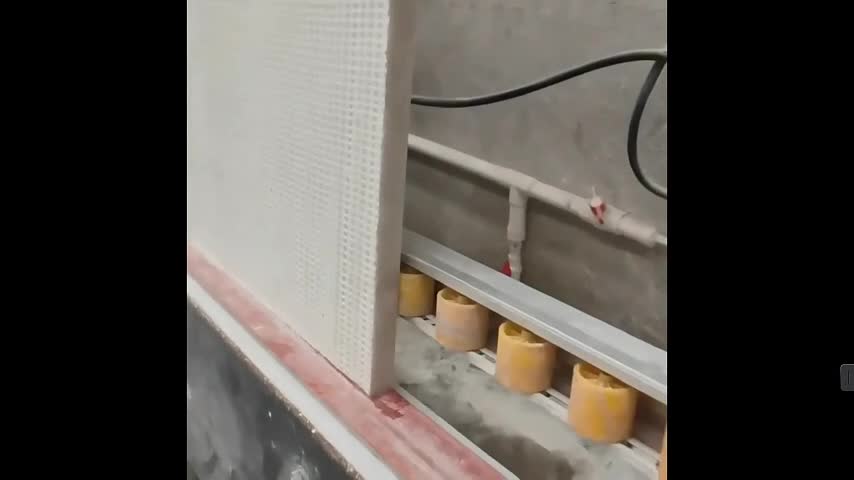

Video
Install Video
Operation Video Screen.PrimaryScreen.Bounds.Height
