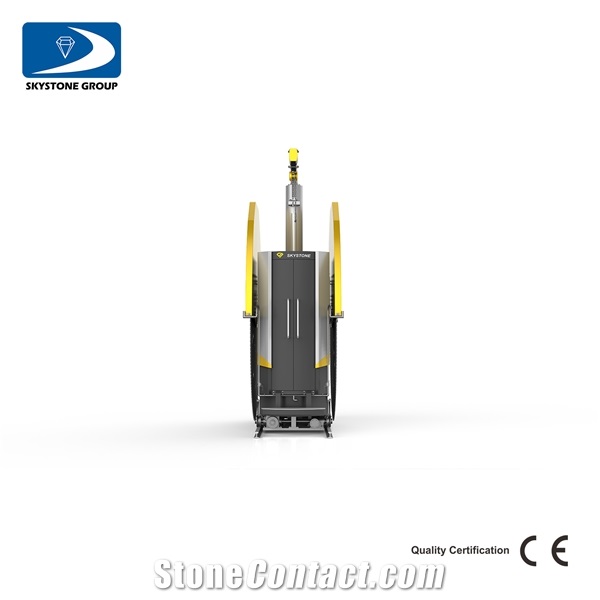

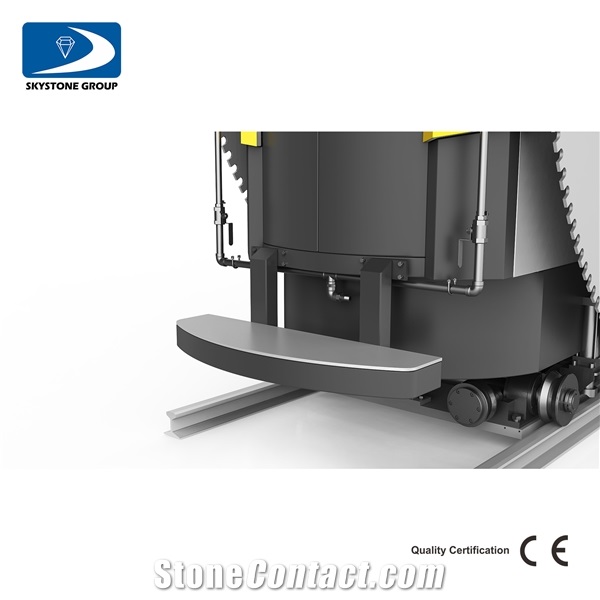

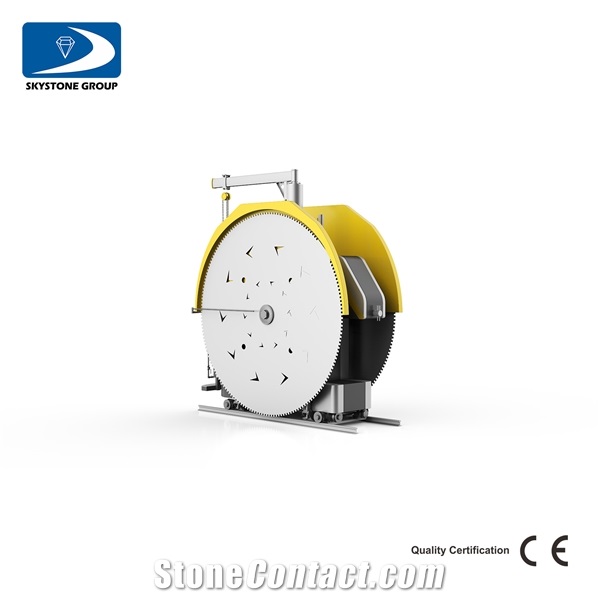

Skystone Double-Blade Mining Machine
FOB Price:
Type:
Usage:
Granite, Marble, Limestone, Quartzite, Sandstone
After-Sale
Lead Time:
2-3 month
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade
Trade Terms
Port:
Xiamen- China
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
Eatablished :Jan 01,2003
Main Product:
Stone Tool, Wire Saw Machine, Quarry Machine, Drilling Machine, Diamond Wire Saw, Wire Saw|
Machinery Function Features
Four-wheel drive:
The center of gravity of the whole machine is lowered. The structure is more stable, and the safety performance is higher.
Direct-connected spindle box, belt-free drive, efficient cutting.
The design of four-wheel drive and uniform speed travel reduce the loss of diamond segment.
Technical Data
Parameters |
Unit |
Parameter |
Remark |
Center Distance of Rail |
4 |
1140 |
|
Total Power |
7 |
150 |
|
Walking speed |
mm/min |
0-2072 |
Converter adjustment |
Saw blade speed |
r/min |
120 |
|
Rated speed of main motor |
r/min |
1200 |
|
Diameter of Blade |
4 |
φ2200*2-3500*2 |
|
Max. Cutting Depth |
4 |
1550 |
|
Lifting limitation |
mm |
1650 |
|
Power of Main Motor |
7 |
72*2 |
|
Dimension LxWxH |
4 |
4200*1550*2900 |
|
Main drive reduction ratio |
8 |
Three-stage deceleration |
|
Total weight |
t |
9 |
|
Cutting Width |
4 |
1360-1900 |
|
Water Consumption |
30 |
5 |
