SCY3600 Quarry/Mining Equipment/Skystone Double Blade Stone Cutting Machine
FOB Price:
Type:
Usage:
Granite, Marble, Limestone, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
Xiamen- China
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
Eatablished :Jan 01,2003
Main Product:
Stone Tool, Wire Saw Machine, Quarry Machine, Drilling Machine, Diamond Wire Saw, Wire Saw|
Machinery Function Features
Four-wheel drive:
1.The center of gravity of the whole machine is lowered.The structure is more stable,and the safety performance is higher
2.Direct-connected spindle box,belt-free drive,efficient cutting.
3.The design of four-wheel drive and uniform speed travel reduce the loss of diamond segment
4.High degree of automation,simple operation and convenient use,easy to install and maintain,automatic lubrication device,two large saw blades,adopt permanent magnet synchronous motor.
Technical Data
Parameters |
Unit |
SCY3600 |
Cooling water volume |
m³/h |
5 |
Rated speed of main motor |
r/min |
1200 |
Total weight |
t |
9 |
Ratio of travel mechanism reduction |
458 |
|
Equipment size |
m(l*w*h) |
5*1.5*4.55 |
Processing width range |
mm |
1360-1900 |
Max. Cutting Depth |
4 |
1550 |
Main drive reduction ratio |
8 |
|
Walking speed |
mm/min |
0-2072 |
Power of Main Motor |
7 |
150 |
Distance between rail center |
mm |
1140 |
Diameter of Blade |
4 |
Φ2200*2-3600*2 |
Lifting limitation |
mm |
1650 |
Saw blade speed |
r/min |
120 |
Processed Stone Photos
-
Cutting
Components
-
Body
Consumables
-

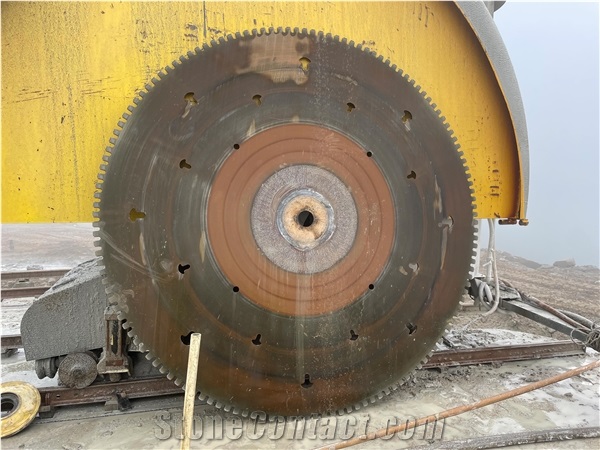

Saw blade
