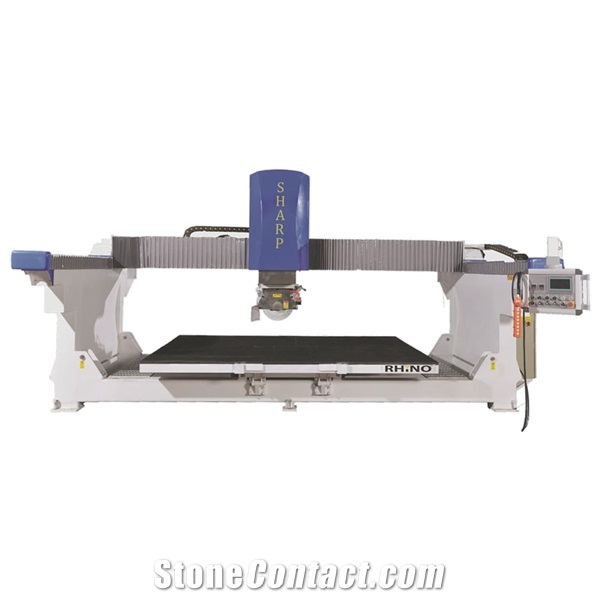

Sharp- RHINO Designed Bridge Saw Machine- Bridge Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 14,2013
Main Product:
Sink Cutting Machine, Mitre Saw, Stone Polisher, Dust Extractor|
Machinery Function Features
Automatic mitre strip cutting / 90 degree cutting head rotation / 360 degree work table rotation / 85 degree tilt table
Features – Precise cuts – Our RHINO designed Bridge Saw also comes with Mitre-Cut for when you require 45 degree cuts – X and Y axis 90 degree rotation – Features a turntable work table that can also tilt up to 85 degrees
Technical Data
Parameters |
Unit |
Sharp |
Machine length |
mm |
5800 |
Cooling water requirement(1.5 bar min. pressure) |
m3/h |
2 |
Working table dimensions(L×W) |
mm |
3200 x 2000 |
Machine height |
mm |
2565 |
Compressed air pressure |
Mpa |
>0.02 |
Total power |
kw |
24.5 |
Approximate weight without table |
Kg |
6000 |
Head motor power |
kw |
15 |
Mitre Cutting Depth |
mm |
60 |
Machine width |
mm |
3260 |
Blade diameter |
mm |
300 to 450 |
Cutting Depth |
mm |
100 |
