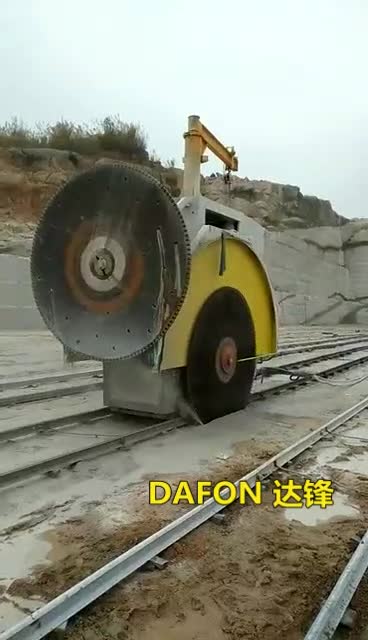

Double Blade Quarry Stone Machine For Granite Quarry Mining Equipment

The quarry surface mining equipment is the transformation of the original two-blade mining machine and suitable for marble and granite quarries. The stone quarry machine is widely used in domestic and aboard, the speed is faster than diamond wire saws. The completed sealed cylindrical guide rail ensure that the guide rail is free from contamination. The machine uses the original lubrication system to effectively improve the service life and utilization rate, and reduce the number of maintenance and cost. It is a significant improvement in the overall efficiency of a mining machine. The main advantages are easy operation and low investment, small clearance, low wear, no vibration, stable structure, high cutting precision and improved service life of the cutter head. Technical data Model DFKSQ-1900 DFKSQ-2450 diameter of driving wheel Ø3500*2 mm Ø4800*2 cutting width 1900 mm 2450 mm max cutting height 1500 mm 2150 mm main motor power 55kw *2 65 kw*2 water comsumption 5 m³/h 5 m³/h total power 117.7 kw 139.2 kw dimension 3540*1600*2710 mm 5210*2150*3600 mm total weight 8000 kg 11500 kg
