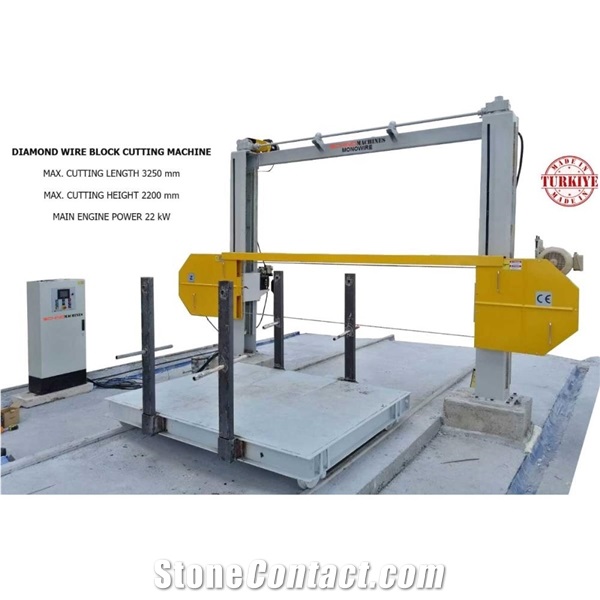

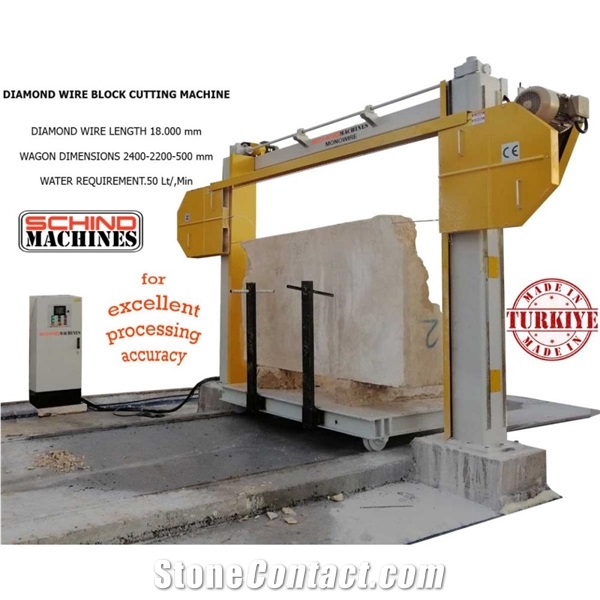

SCHIND 16100 Monowire Block Cutting Machine

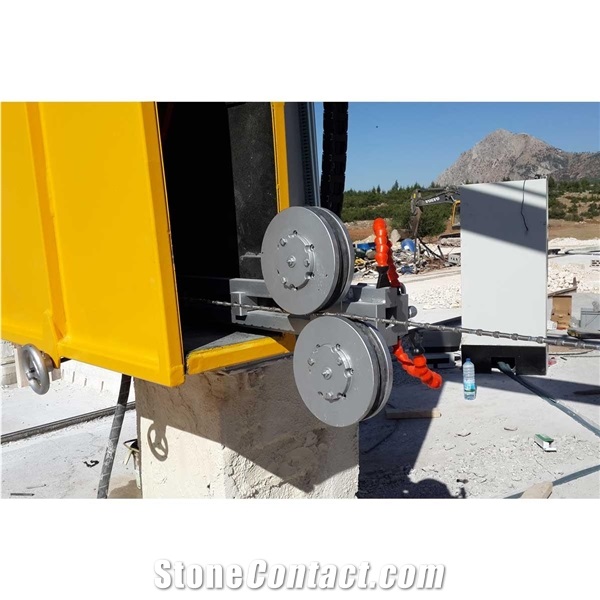

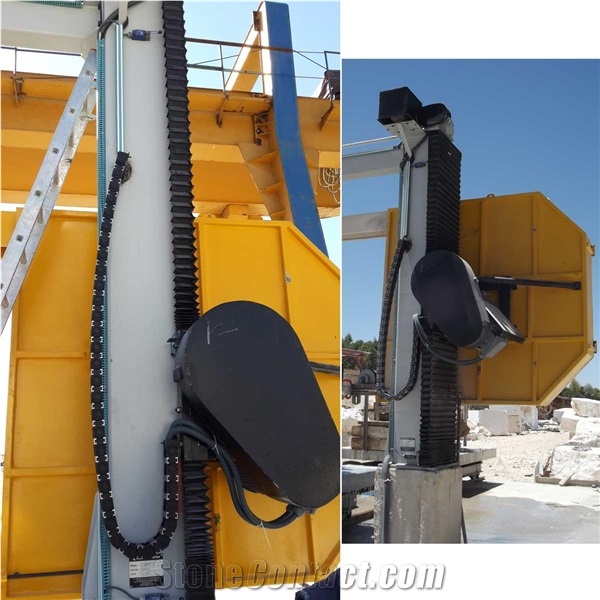

It use to obtain marble in special shapes such as pillars base, columns, canvas marble sheets or to straighten shapeless blocks in quarry. Constant cutting speed is obtained by keeping the wire at ideal tension by the help of hydraulic cylinder and sensor, The up and down movements of the cutting system moving on the columns can be adjusted via the inverter. Our machine with PLC module has 3 axes, CNC module machine has 4 axes. Stress relieved strong chassis and 4 wheels with servo-controlled wagon movements allow us best cutting accuracy. Programming can be done to get slices of different thicknesses from the same stone. Since the positioning of the wagon & diamond wire is done electronically by laser, there will not be angular defect at the final product. 99 different cutting recipes can be saved in the program. Simple user-friendly automation software is used. The screen is touch-screen and shows the cutting axis and level to assists the operator. It is painted with epoxy paint after sandblasting to prolong the life of our machine, which is exposed to high amount of corrosion. Chain rotation is provided on special alloy 7000 series aluminum pulleys. As a security measure; if the wire breaks, a special sensor connected to the tension roller will stop the machine immediately.
