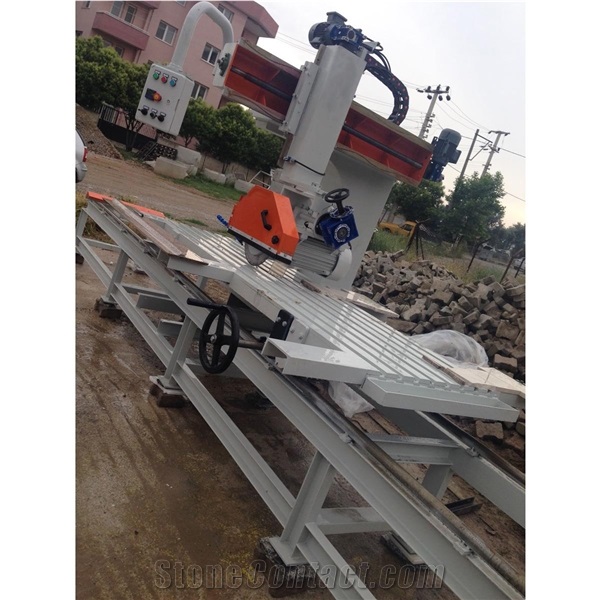

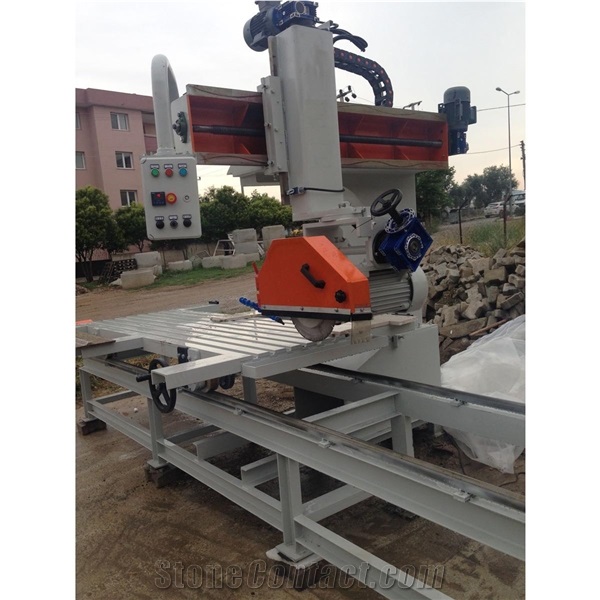

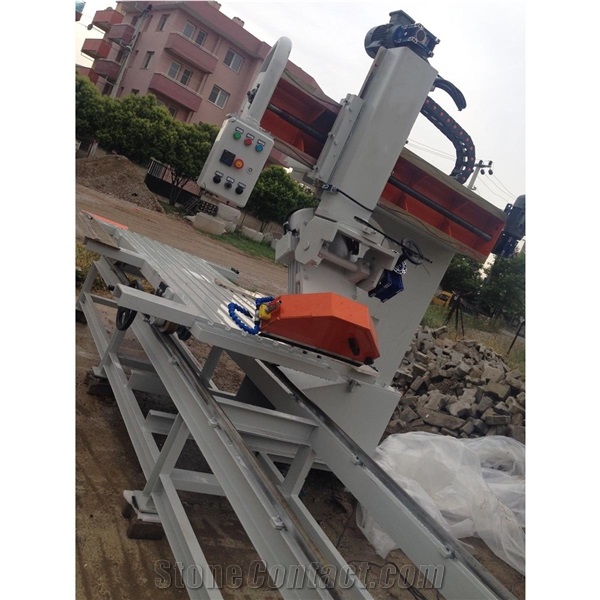

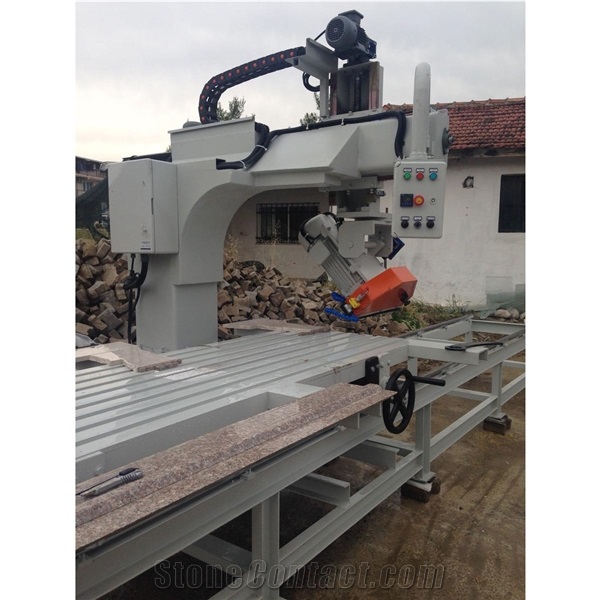

SCHIND 16401-1 NPU - Manual Cutting Angled - Marble, Natural Stone And Granite Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Usage:
Marble, Limestone, Onyx, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 05,2002
Main Product:
Marble Cutting, Polishing Machine, Multi Wire Gangsaw, Block Cutting, Marble Block, Diamond Tool|
Machinery Function Features
Longitudinal, transverse and 45 ° cutting machine,
Cuts on X and Y axis,
Head, left and right movements are managed from the control panel,
The rotation angles are fully manual,
Forward and backward movement of the wagon is done manually.
Made from 240 NPU chassis.
Technical Data
Parameters |
Unit |
SK16-0102-1 |
Max Cutting Length |
mm |
3500 |
Disc-holder head motor pover |
kw |
9.0 - 13 |
Workbench Width |
mm |
1500 |
Machinable width |
mm |
1300 |
Slide Length |
mm |
6000 |
Saw Speed |
rpm |
1400 / 2800 |
Workbench Length |
mm |
2500 |
Voltage |
V |
380V |
Disc diameter |
mm |
350 - 500 |
