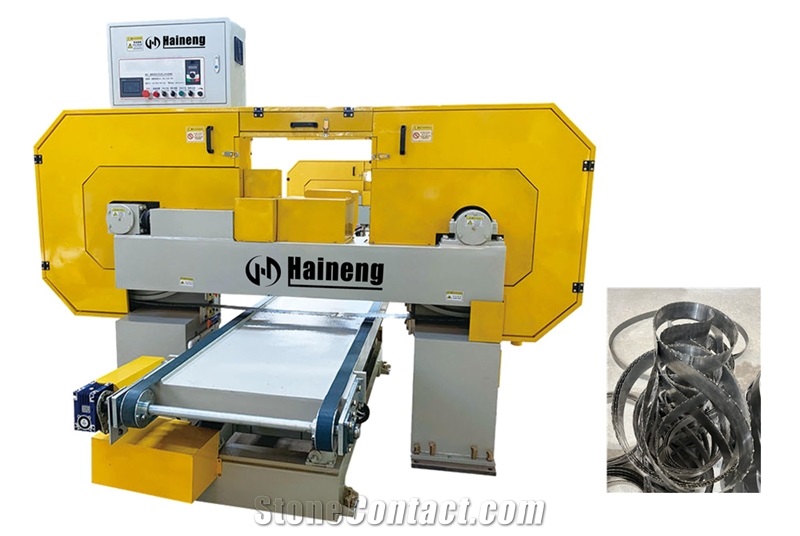

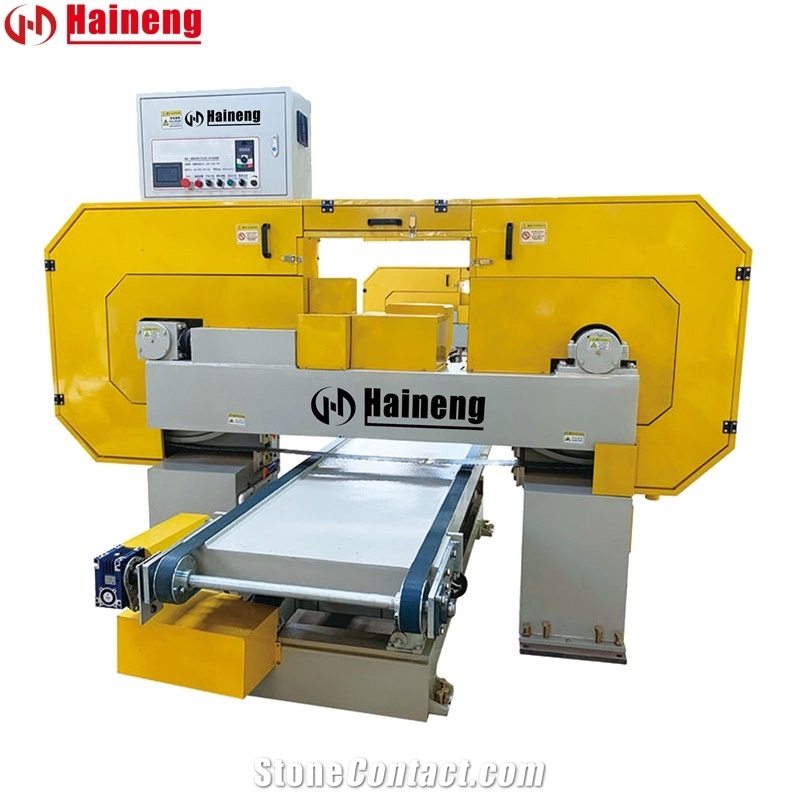

Horizontal Composite Slab Bandsaw Splitting Machine
FOB Price:$6650-6950
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

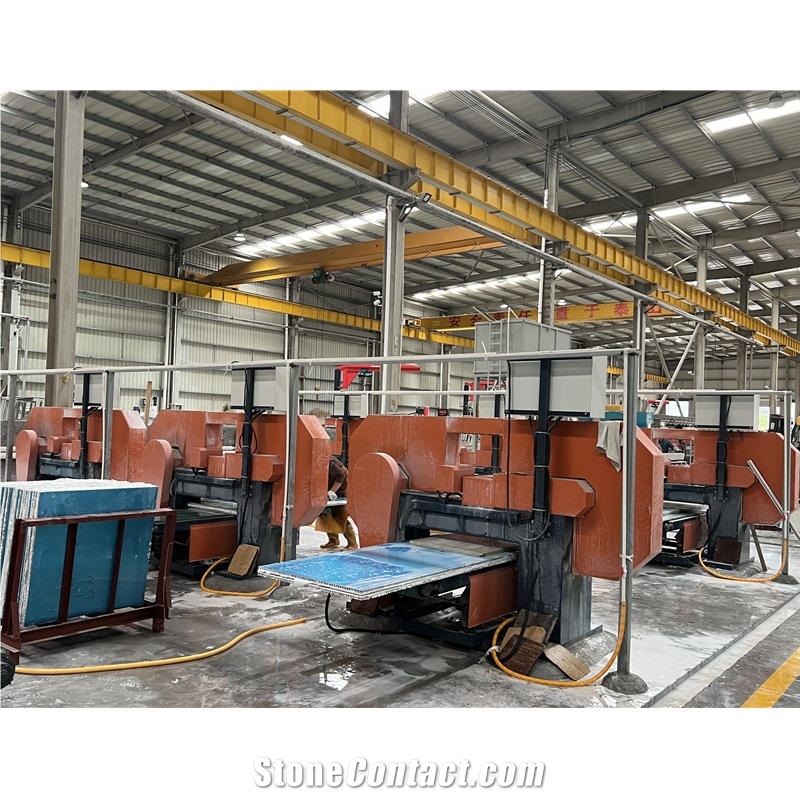

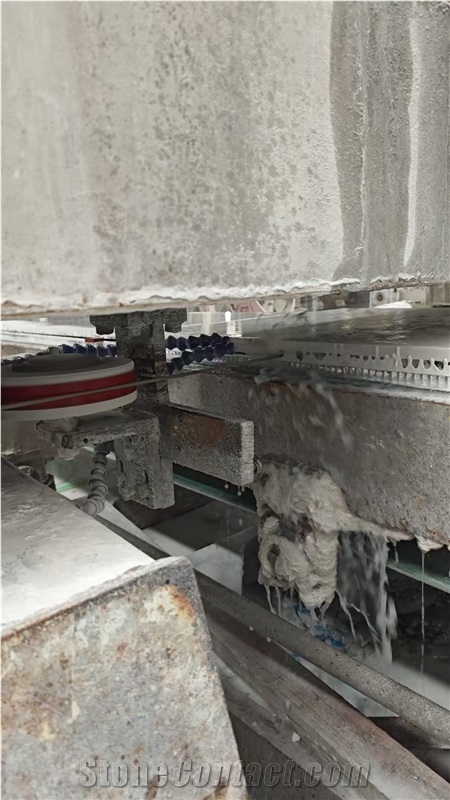

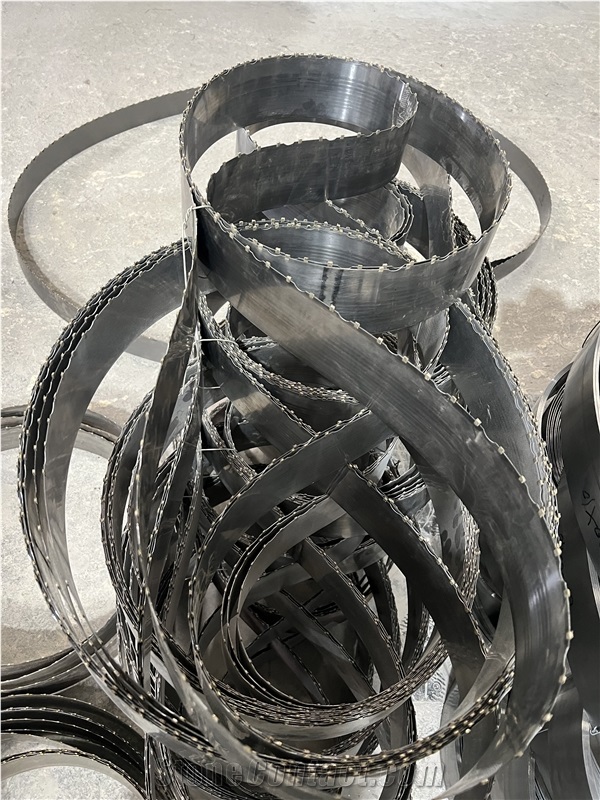

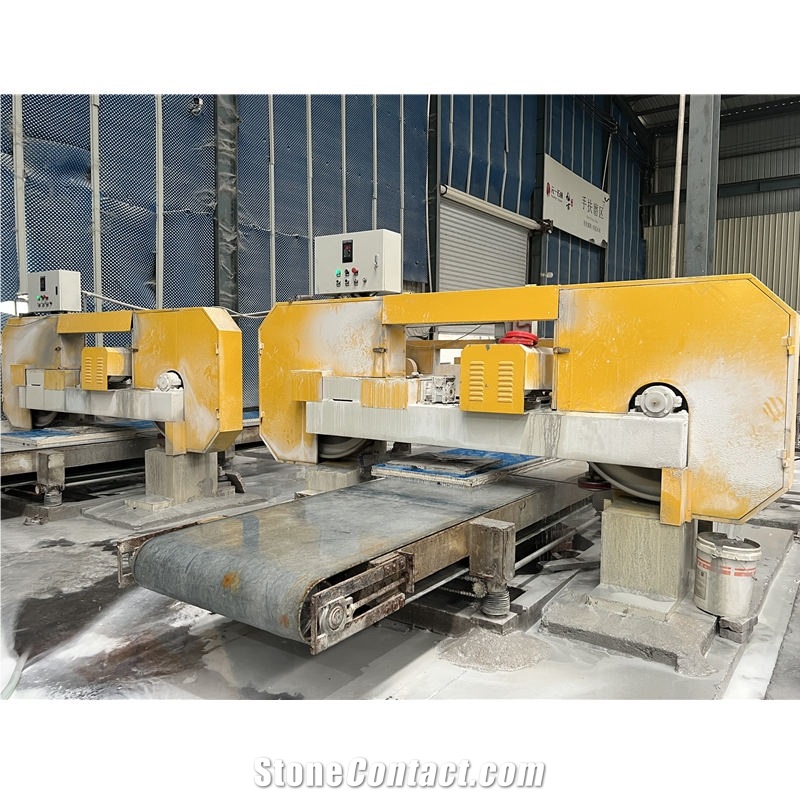

This is a basic and efficient machine for producing thin marble or granite or other composite slabs. The band saw blades or diamond wire is used in conjunction with the automatic convey feeding belt to make the horizontally slicing of the slab, with easy, smoothly and high efficiency.

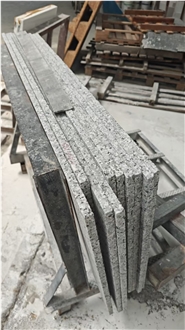

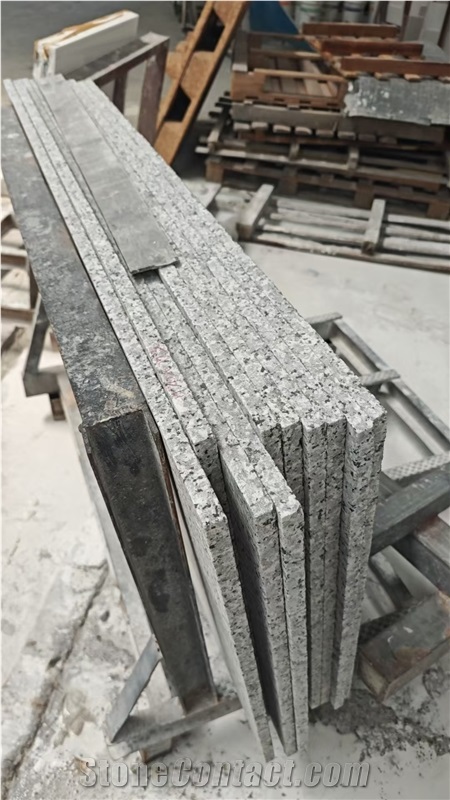

This machine is designed to split the slab into thin tiles, and widely used to produce ultra-thin marble composited tiles. The worktable can feed automatically and its speed can be adjustable and flexible.
Parameters |
Unit |
WBD-800 |
WBD-1200 |
Max processing length |
mm |
1000 |
2000 |
Diamond wire thickness |
mm |
5.2-7.3 |
5.2-7.3 |
Fly wheel dia. |
mm |
1000 |
1000 |
Cutting speed |
m/min |
0-100 |
0-100 |
Weight |
kg |
2200 |
3000 |
Work thickness |
mm |
60 |
80 |
Gross power |
kw |
8.97 |
8.97 |
Bandsaw thickness |
mm |
0.9 |
0.9 |
Water consumption |
m³/h |
1 |
1 |
Work width |
mm |
850 |
1250 |
Bandsaw&Diamond wire length |
mm |
7220/7120 |
8050/7970 |
Bandsaw length |
mm |
6280 |
7060 |
Overall dimensions |
mm |
3000×2500×2200 |
3400×4000×2200 |
-
