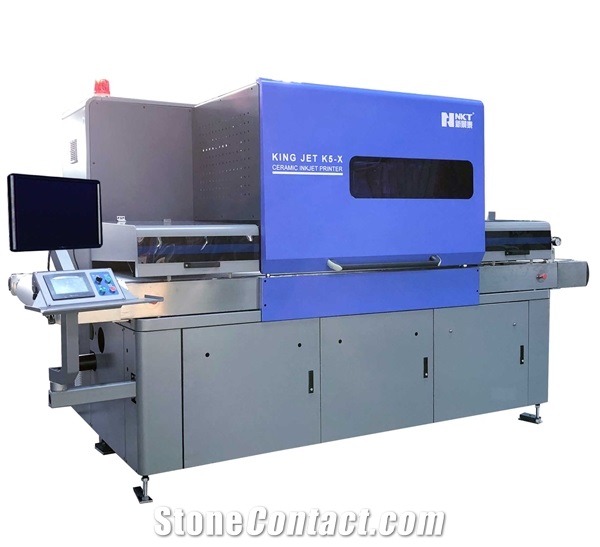

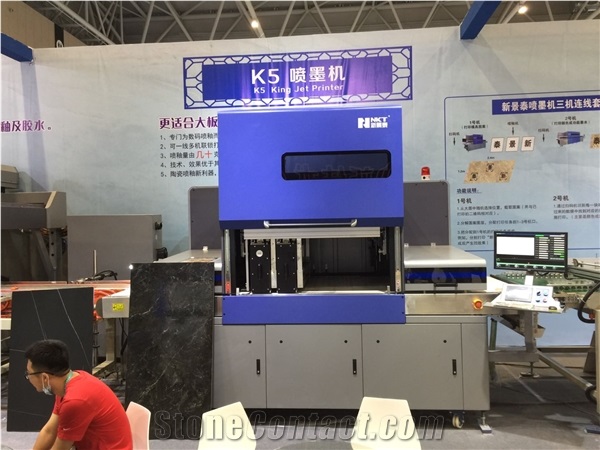

K5 Inkjet Printer For Ceramic, Sintered Stone, Porcelain

Name: K5 Inkjet Printer For Ceramic, Sintered Stone, Porcelain
Brand: Foshan Sanshui Yingjie Precision Machinery Co., Ltd
SKU: 6309
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Artificial Stone MachinesPrinting, Decorating Machine

Usage: Artificial Stone

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Foshan Sanshui Yingjie Precision Machinery Co., Ltd

NKT

China

Eatablished :Jan 01,1993

Main Product:

Ceramic Machinery, Ink Jet Printing Machine, Glazing Line Machines|

Contact supplier

Start Order

You may also like

Two Lamps UV Dryer

HOPEJET Y Series- Scanning Ceramic-Porcelain Inkjet Printing Machine

Creadigit Infinity Digital Printer For Ceramic, Porcelain Surfaces

NGT Roller Printing Machine For Ceramic, Porcelain

Honzhan HZ-A324 a3 uv flatbed printer for small stone craft printing

Product Detail
Company Profile

Overview

Machinery Function Features

*Digital glazing machine suitable for large slabs/rock slabs *Specially designed for digital mold glaze, protective glaze, and glue. Technology is ahead of peers. *One-line multi-machine interlocking printing can realize the same texture of tiles. *The amount of glaze sprayed is dozens of grams, more than 100 grams, and more than 200 grams, which can meet the needs of various functional glazes. *The technology and effect are superior to other nozzles, and have been put into mass production. *A new weapon for ceramic spray glazing, the standard configuration for future glazing lines.

Technical Data

Parameters	Unit	K5-700 (700)	K5-1120 (1050)	K8-700 (700)	K8-980 (910)
Number of Print Head	nr	XAAR:10 / StarFire:11	XAAR:15 / StarFire:16	XAAR:10 / StarFire:11	XAAR:13 / StarFire:14
XAAR useful printing width	mm	70	70	70	70
Max. Printing area	mm	700 (704)	1050 (1024)	700 (704)	910 (896)
Machine overall length	mm	3900	3900	5040	5040
Print Mode XAAR		Binary/Grey Scale (8 level)	Binary/Grey Scale (8 level)	Binary/Grey Scale (8 level)	Binary/Grey Scale (8 level)
XAAR Resolution	dpi	XAAR1003:360dpi / XAAR2002:720dpi	XAAR1003:360dpi / XAAR2002:720dpi	XAAR1003:360dpi / XAAR2002:720dpi	XAAR1003:360dpi / XAAR2002:720dpi
StarFire useful printing width	MM	64	64	64	64
Machine approx. weight	Kg	2600	2800	3000	3500
StarFire Converying		StarFire: SG1024/SG600-SC<50	StarFire: SG1024/SG600-SC<50	StarFire: SG1024/SG600-SC<50	StarFire: SG1024/SG600-SC<50
Height of Conveyor	mm	1150+/- 50	1150+/- 50	1150+/- 50	1150+/- 50
Print Head StarFire		SG1024 SC/MC/LC, SG600-SC	SG1024 SC/MC/LC, SG600-SC	SG1024 SC/MC/LC, SG600-SC	SG1024 SC/MC/LC, SG600-SC
Machine overall width	mm	1700	2100	1700	1980
Print Head XAAR		XAAR GS6/GS12/GS40(2002/1003)	XAAR GS6/GS12/GS40(2002/1003)	XAAR GS6/GS12/GS40(2002/1003)	XAAR GS6/GS12/GS40(2002/1003)
Print Mode StarFire		Binary/Grey Scale (4 level)	Binary/Grey Scale (4 level)	Binary/Grey Scale (4 level)	Binary/Grey Scale (4 level)
Number of colour bars	nr	5/8/10/12/16	5/8/10/12/16	5/8/10/12/16	5/8/10/12/16
XAAR Converying		XAAR1003 <24, XAAR2002<48	XAAR1003 <24, XAAR2002<48	XAAR1003 <24, XAAR2002<48	XAAR1003 <24, XAAR2002<48
StarFire Resolution	dpi	StarFire SG1024:400dpi, StarFire SG600-SC:600dpi	StarFire SG1024:400dpi, StarFire SG600-SC:600dpi	StarFire SG1024:400dpi, StarFire SG600-SC:600dpi	StarFire SG1024:400dpi, StarFire SG600-SC:600dpi
Machine overall height	mm	2200	2200	2200	2200
Power supply	V/Hz	380V - 50/60Hz	380V - 50/60Hz	380V - 50/60Hz	380V - 50/60Hz
Max. Tile Thickness	mm	<30	<30	<30	<30
Brand and model of printheads		XAAR / StarFire	XAAR / StarFire	XAAR / StarFire	XAAR / StarFire
Total Power	kw	3 colors 13 kW/ 4 colors 15 kW/ 5 colors 16 kW	3 colors 18 kW/ 4 colors 23 kW/ 5 colors 26 kW	6 colors 20 kW/ 7 colors 22 kW/ 8 colors 24 kW	6 colors 33 kW/ 7 colors 36 kW/ 8 colors 39 kW
