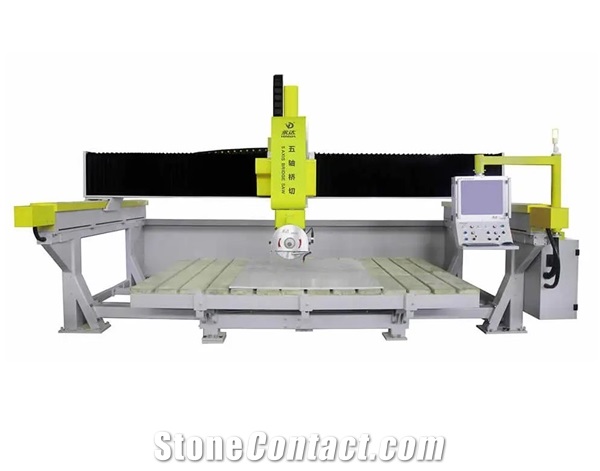

YD 4 Axis Bridge Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 01,2003
Main Product:
Stone Machinery, Polishing Machine, Bridge Cutting Machine, Ceramic Processing Machine, Water-Jet Cutting Machine|
You may also like
Machinery Function Features
YD-3200 4 AXIS S/D
Easy learn, easy control and operation;
Straight line, circular arc, grid, click to cut;
Notching, chamfering, beveling, cut as you like.
Product Details:
Great CAD/CAM software
1. Simple and intuitive
2. Straight line circular arc, grid, click to cut;
3. Notching, chamfering, beveling, cut as you like
4. Available in a variety shape like cambered shape, engraving, drilling, profiling, etc.
5. Can connecting with scanner, nesting as require, save materials save time
6. Easy to use, convenient and intelligent, high efficiency and low energy consumption
7. Apply international brand CNC control system, servo motor & driver
8. Can be seamlessly integrated with scanner, realize real-time scanning layout setting
9. With the internet remote diagnosis function, the system parameters can be modified by remote control
Technical Data
Parameters |
Unit |
YD-3220 4 Axis (Standard) |
YD-3220 4 Axis (Deluxe) |
Horizontal stroke(X axis travel) |
mm |
3200 |
3200 |
Disc diameter |
mm |
350-450 |
350-450 |
System |
Taiwan System |
Italy system |
|
Head raising/lowering stroke(Z axis travel) |
mm |
250 |
500 |
Dimensions of the work table(L×W) |
mm |
3600×2200 |
3600×2200 |
Installed electrical power |
kw |
26 |
35 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
40 |
40 |
Tools holder head inclination(A axis blade rotation) |
° |
0～45°(manual adjust) |
0～90°(manual adjust) |
Head motor power |
kw |
15 |
18 |
Machine length |
mm |
6000 |
5800 |
C axis blade rotation |
° |
±185° |
±185° |
Max. workable thickness |
mm |
≤60 |
≤60 |
Approximate weight without table |
Kg |
5000 |
5000 |
Max. revolutions of the spindle unit |
r/min |
3000 |
3000 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
2000 |
Machine height |
mm |
3100 |
3100 |
Worktable turn-over degree |
° |
0～85° |
0～85° |
Machine width |
mm |
3900 |
3900 |
