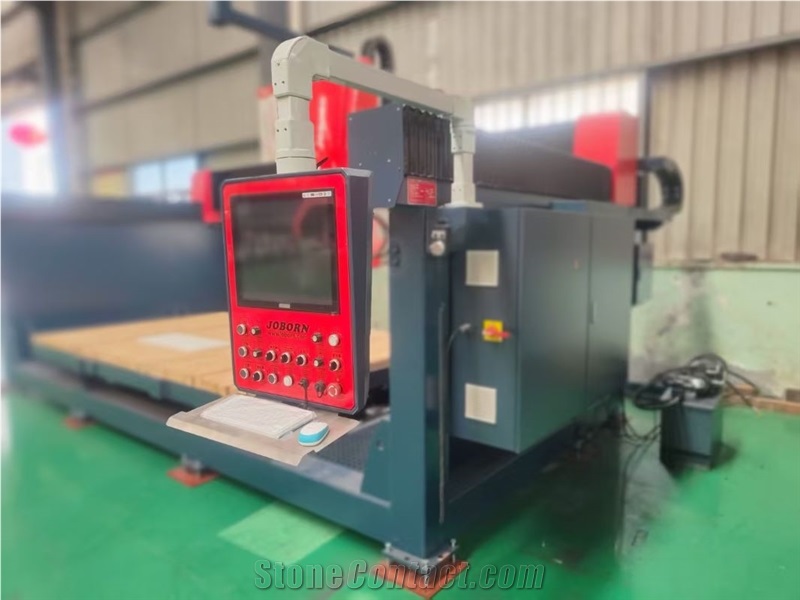

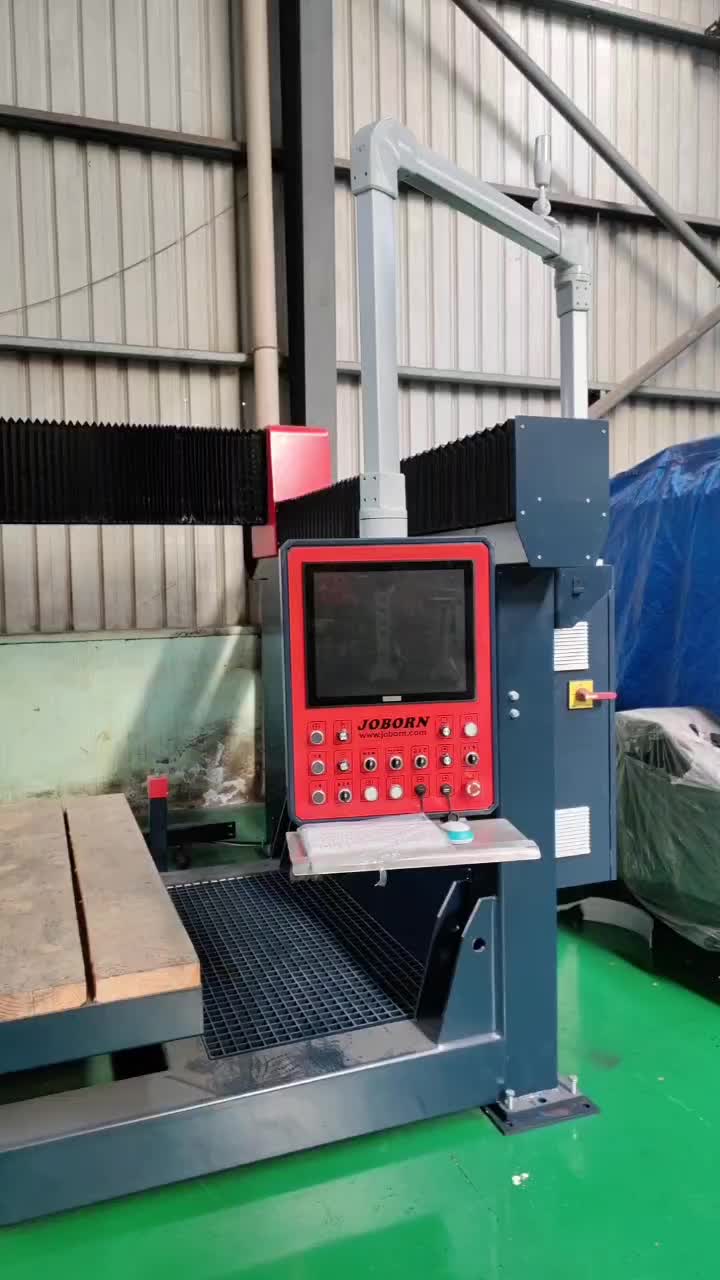

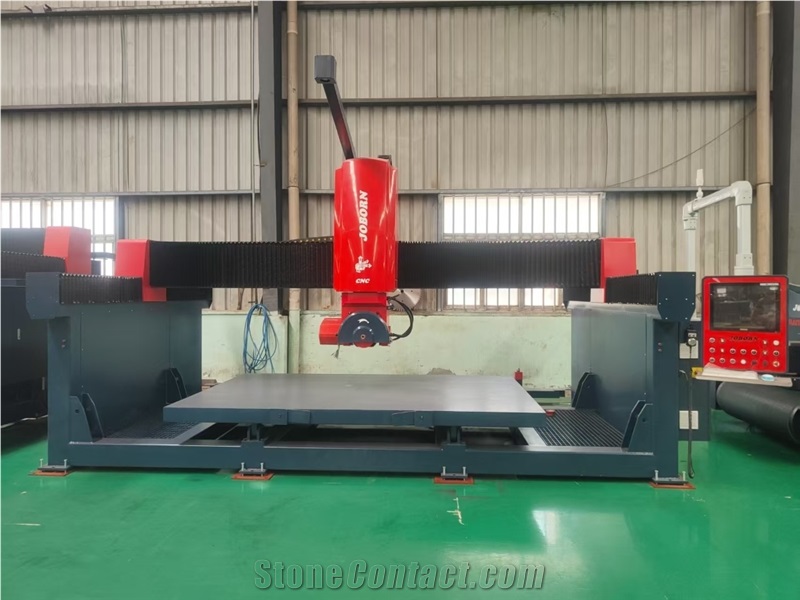

CNC 450/600/700-5 AI CNC Bridge Cutting Machine

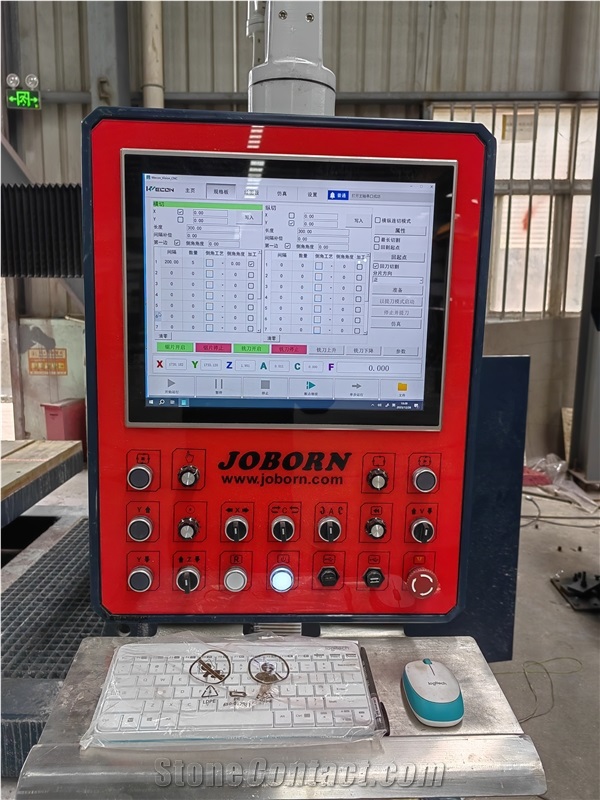

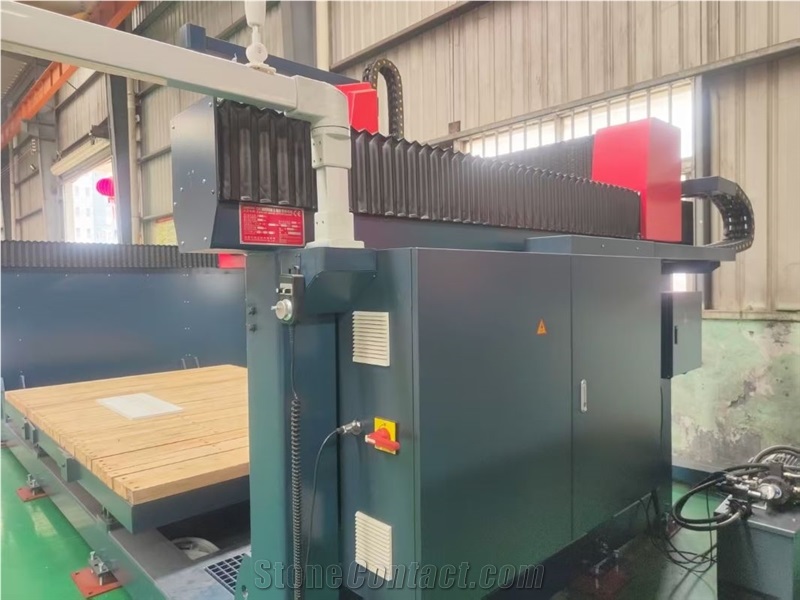

1.5 Axis linkage control with CNC control system; 2.Easy to use interface with 17" color touch-screen; 3.The machine is equipped with an industrial computer, embedded touch screen, supports CAD file import; 4.The machine adopts integrated structure, the frame and beam are welded by high-quality carbon steel plate and profiles, solid and reliable, high stability; 5.The X-axis lateral movement adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive; 6.Y-axis longitudinal movement adopts double servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision helical rack and pinion drive; 7.The Z-axis main machine lifting adopts servo motor + high-precision planetary reducer + linear guide rail, and then with high-precision ball screw drive; 8.A-axis head tilt rotation 0-90° and C-axis head plane rotation 0-360° are driven by servo motor + precision robot RV reducer, supporting five-axis linkage, high dimensional precision and shape precision; 9.Working platform can tilt 85 degrees, easy for slabs loading; 10.Photo taking & tool setting function; 11.Milling cutter function; 12.Suction cup function(optional); 13.Thickness measurement function(optional);
