CNC5 5 Axis CNC Machining Center
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Machinery Function Features

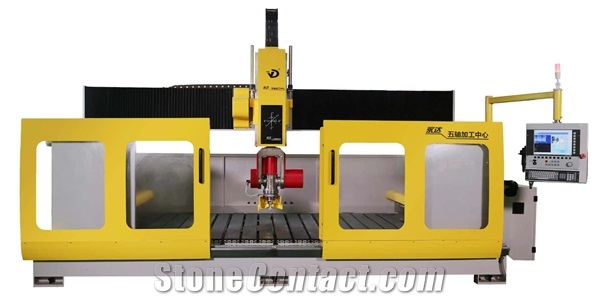

5 Axis CNC Machining Center
1. Industry-leading programming software, intuitive, fast and easy to learn;
2. International system brand, servo, lead screw and guide rail. High speed, stable and reliable;
3. No need make tool setting, no need adjust tool centre, easy operation;
4.Automatic vacuum fixing and releasing, loading and unloading easily.
5.Multifunctional including engraving, milling, grinding etc.;
Product Details:

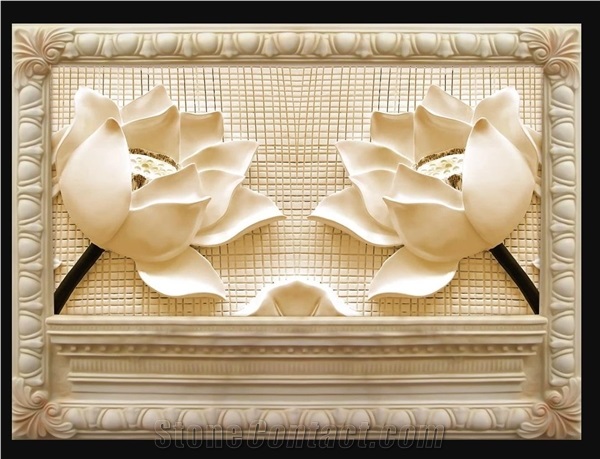

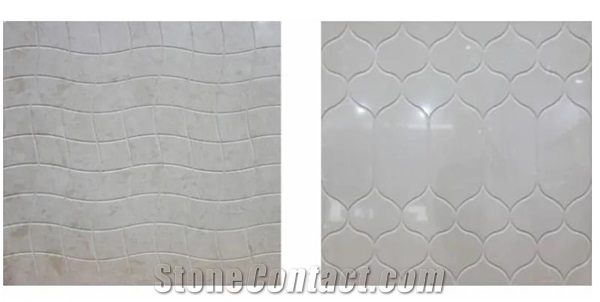

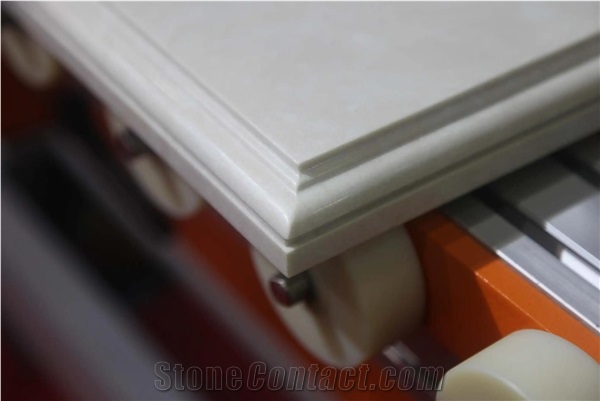

5 axis machining center is a high tech, high accuracy stone CNC machine center that specialized for all different kinds of stone, sintered stone and ceramic kitchen top, countertop, table edge complex carving processing. Such as straight edge with chamfering, OG edge, pencil edge, etc. 5 Axis Stone CNC Machine Center use five-axis simultaneous control system, also suitable for glass and stone engraving, and different kinds of hard material carving processing etc. Multi-function is the most advantage of this machine such as drilling, blade cutting, edge grinding, chamfering, milling bottom edge, polishing etc.
Application:

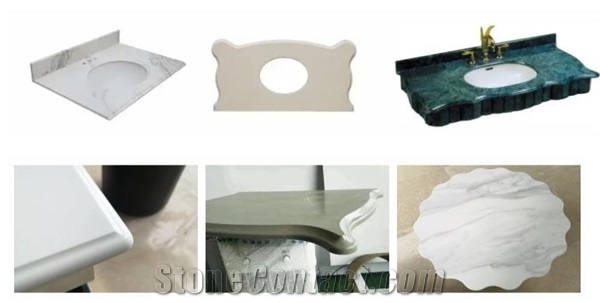

5 Axis Stone CNC Machine Center is suitable for stone countertops, kitchentops, glass and stone engraving, and different kinds of hard material carving processing etc.
Technical Data
Parameters |
Unit |
CNC5-3020 |
CNC5-4020 |
Tool-holder spindle motor power |
kw |
15 |
15 |
Carved designs Processing size |
mm |
2900x1700 |
3500x1700 |
Grinding edge Processing size |
mm |
2900x1900 |
3500x1900 |
Engraving Processing size |
mm |
2900x2000 |
3500x2000 |
Max. working thickness |
mm |
for grinding: 0~80, for engraving: 0~200 |
for grinding: 0~80, for engraving: 0~200 |
Machine overall length |
mm |
6000 |
6600 |
C axis inclination (degrees) |
° |
±200° |
±200° |
A axis rotating (degrees) |
° |
0~90° |
0~90° |
Z axis stroke |
mm |
380 |
380 |
CNC system |
Italy operating system |
Italy operating system |
|
Dimensions of the work table (length x width) |
mm |
3000x2100 |
3600x2100 |
Air consumption |
L/min |
200 (0.6 MPa) |
200 (0.6 MPa) |
Machine overall width |
mm |
3800 |
3800 |
Tool-holder spindle rotation speed |
r/min |
12000 |
12000 |

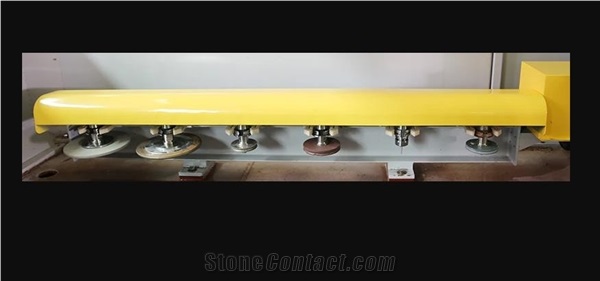

Linear tool-store capacity |
nr |
6+6 |
6+6 |
