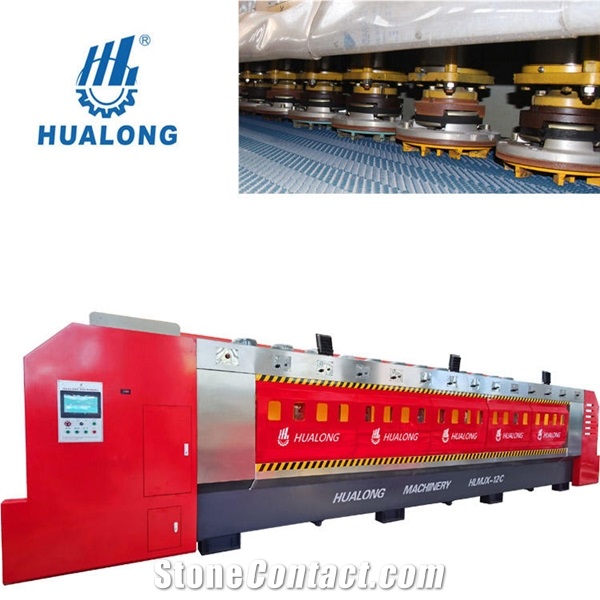

Marble Slab Auto Polishing Machine Resin Heads 0-3.8 M/Min

FOB Price:$35000-55000

Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 30
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Apr 17,1997

Main Product:

CNC Bridge Saw, Quarry Machine, CNC Diamond Wire Saw, Manual Edge Cutting Machine, Auto Hammering Machine, CNC Water Jet Cutting Machine|

Contact supplier

Start Order

  • Overview
  • Components

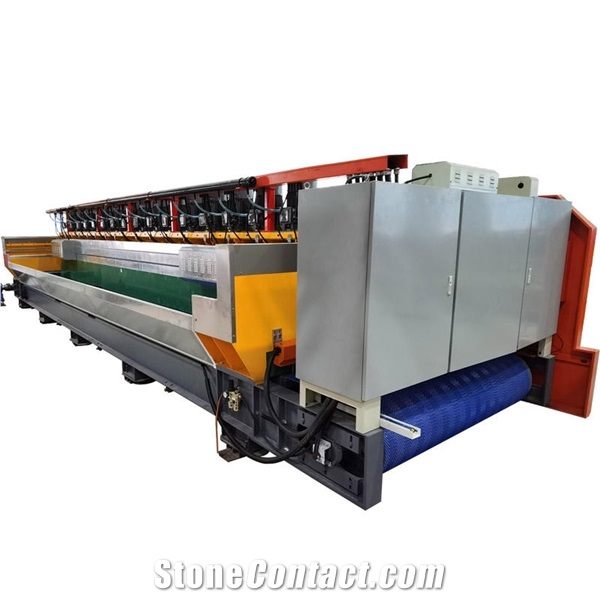

Machinery Function Features

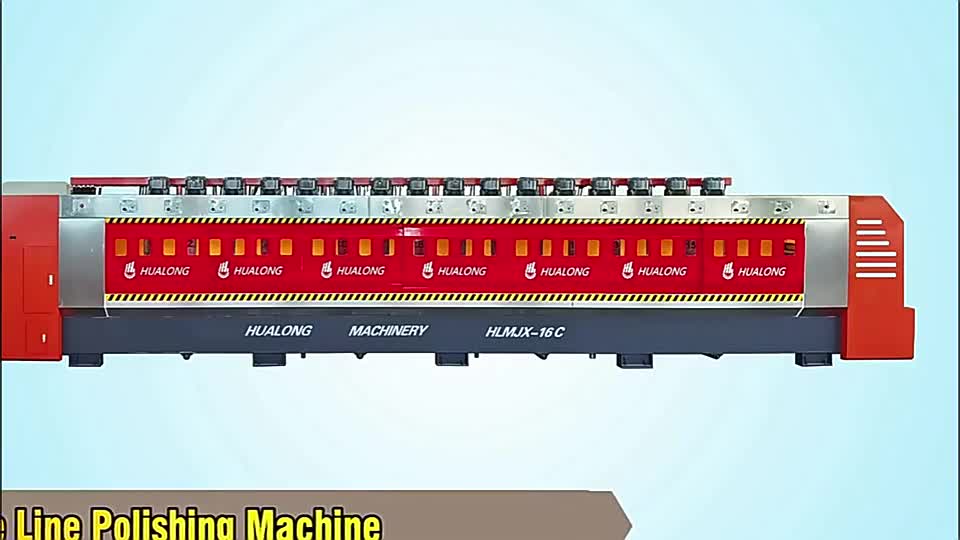

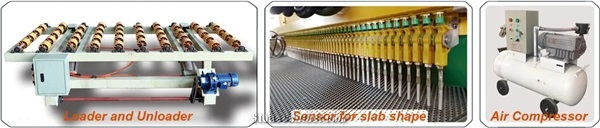

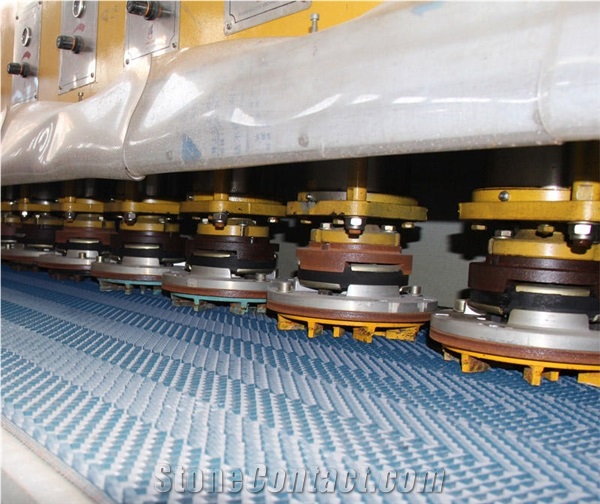

HLMJX-8, equipped with multiple resin disc heads and PLC control system, can grind and plolish slabs continously and automatically, is perfect for surface finishing of hard stone such as granite. Mounted with different type of heads, it’s also great for marble, quartize and other stone slab finishing. Main Features: 1) Using PLC electrical system and LCD screen menu offer intelligent control. 2) Processing width and working pressure of grinding heads can be adjusted freely . 3) Sensor at the entrance to scan the shape of the slabs in sequence and transmit the signal to controlling unit for precise working. 4) Adopting central automatic lubrication system, having all moving parts and bearings to get a good lubricating effect and longer life. 5) Conveyor self-cleaning and stone chip removing system
Technical Data
Parameters
Unit
HLMJX-8
HLMJX-12
HLMJX-16
HLMJX-20
HLMJX-24
Gross weight (kg)
kg
9000
12000
15000
18000
21000
Power of spindle motor (kw)
kw
7.5
7.5
7.5
7.5
7.5
Dimensions (L x W x H - cm)
cm
556x230x23
676x230x23
796x230x23
916x230x23
1036x230x23
Water consumption (m3/min)
m3/min
10
16
20
23
25
Processable thickness (mm)
mm
10 - 60
10 - 60
10 - 60
10 - 60
10 - 60
Quantity of grinding head (pc)
pcs
8
12
16
20
24
Useful working width (mm)
mm
300 - 1250
300 - 1250
300 - 1250
300 - 1250
300 - 1250
Speed of belt advance (m/min)
m/min
0 - 3.8
0 - 3.8
0 - 3.8
0 - 3.8
0 - 3.8
Gross power (kw)
kw
78
108
135
168
198
Processed Stone Photos
  • stone polishing

    stone polishing

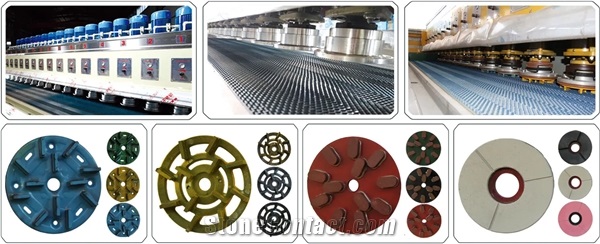

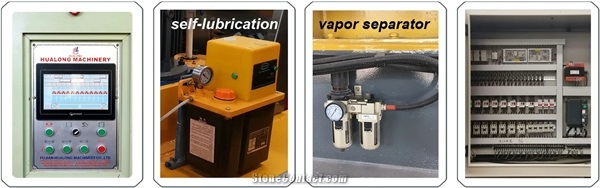

Components
