Professional Best Price Stone Engraving Carving Machine CNC Router
FOB Price:$4000-8000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
7-10 days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Oct 24,2019
Main Product:
Stone CNC Router, CNC Router|
Machinery Function Features
1. Ball screw for Z axis.It's stable running,precision and fast.
2. X,Y axis are gear rack,steady rate transmission,fast speed and high efficiency.
3. With NC studio or Mach 3 control systerm,easy to learn design software,just install it onto your computer and start creating patterns.
4. Powerful 5.5kw water cooling spindle,perfect working for stone carving.
5. The rotary is put on the table and the Z axis space is enlarge to give enough working area for Z axis.Rotary cnc router take extra jobs for removing but save width.
6. Heavy duty frame and gantry,very strong and stability.
Technical Data
Parameters |
Unit |
STONE CNC ROUTER |
Machine overall length |
mm |
3500 |
X axis stroke |
mm |
3500 |
Approx. Weight |
Kg |
2000 |
Control System |
Mach3 DSP NCstudio |
|
Total power |
kw |
9 |
Min. Cooling water pressure |
bar |
6 |
Machine overall height |
mm |
2000 |
Max. loading weight |
Kg |
2000 |
Max. processing length |
mm |
3000 |
Min. Processing Width |
mm |
10 |
Max. Processing Width |
mm |
1500 |
Electricity-Voltage |
V/Hz |
220 380 50hz |
Max. processing thickness |
mm |
500 |
Min. Air pressure |
bar |
6 |
Max. traveling speed |
m/min |
35 |
Z Axis speed |
m/min |
1500 |
Machine overall width |
mm |
2200 |
Work table dim.(LxWxH) |
mm |
1500*3000*300 |
X Axis speed |
m/min |
2500 |
Main spindle speed |
r/min |
24000 |
Y axis stroke |
mm |
2200 |
Max. working speed |
m/min |
10 |
Diameter of spindle tools |
mm |
12.7 6 3 |
Sound pressure level |
dB |
70 |
Air consumption |
m3/h |
20 |
Y Axis speed |
m/min |
2500 |
Water consumption |
m3/h |
5 |
Repeated positioning/Ball screw precision |
mm |
0.01 |
Z axis stroke |
mm |
1800 |
Number of engraving head |
pcs |
1 2 3 4 |
Main spindle motor power |
kw |
9 |
Software
The ArtCAM software range provides a unique CAD modelling and CNC machining software solution to a wide variety of industries

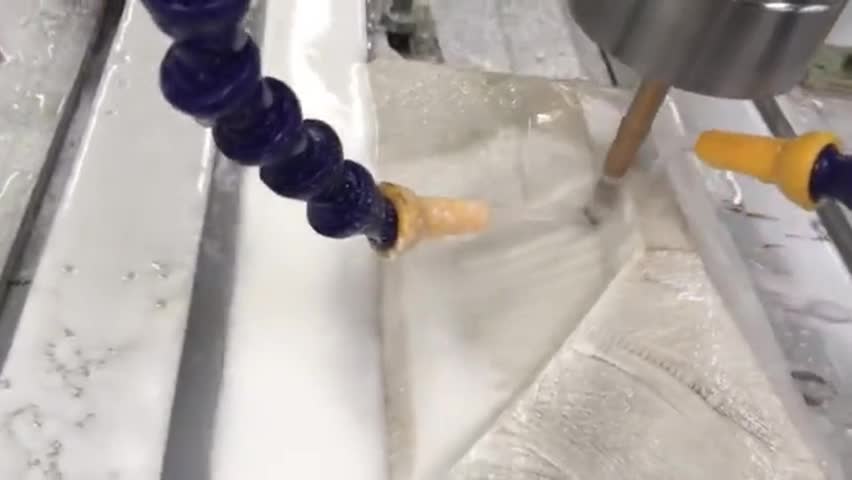

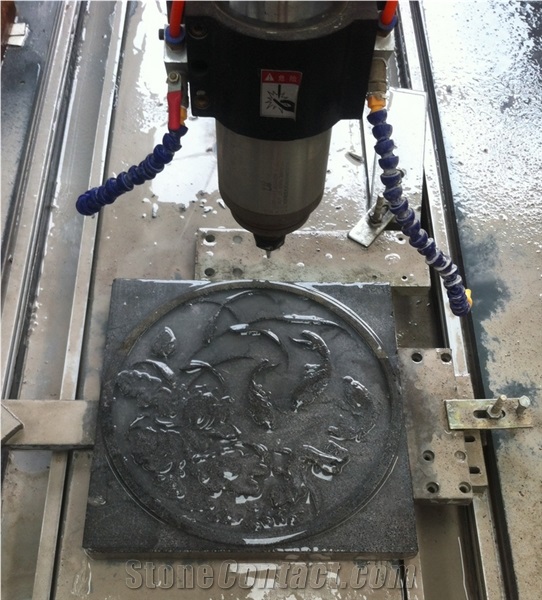

Processed Stone Photos
Components
-

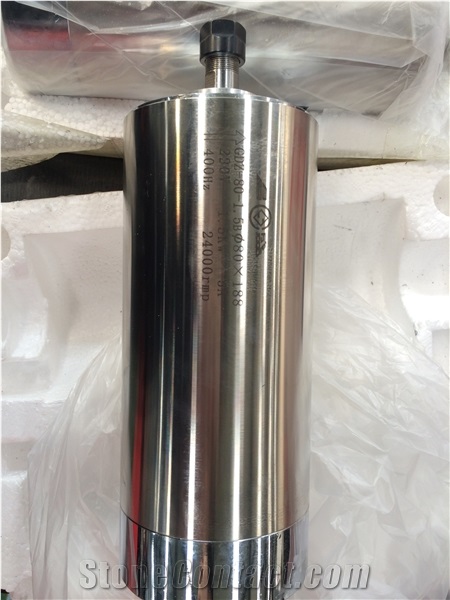

Spindle
¥Payment Required

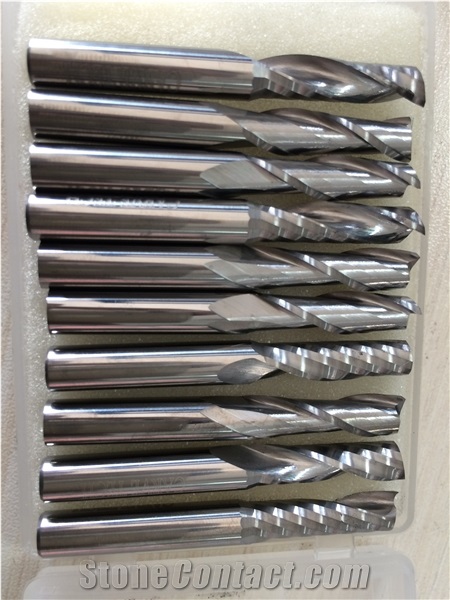

Consumables
