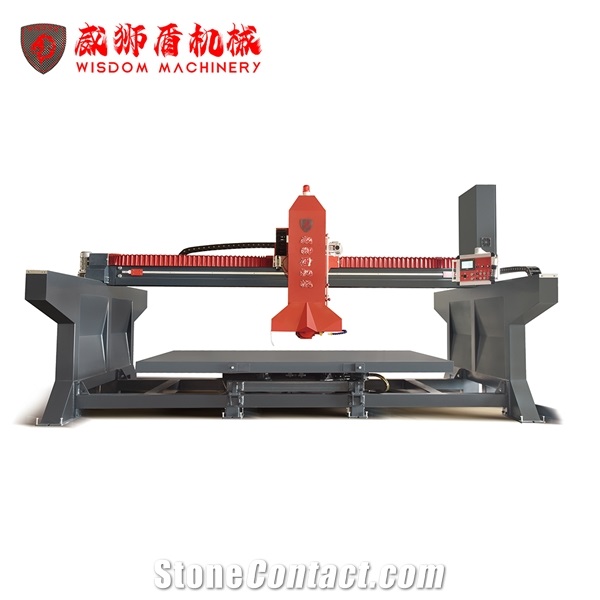

Bridge Saw For Granite Marble Cutter With Table Rotate 360 Degree

FOB Price:$25000-30000

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 20-30days
Warranty:24 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

QUANZHOU WISDOM MACHINERY DEVELOPMENT CO., LTD

QUANZHOU WISDOM MACHINERY DEVELOPMENT CO., LTD
Wisdom

ChinaChina idicon

Eatablished :Jan 20,2021

Main Product:

Bridge Saw, Stone Cutting Machine, Block Cutting Machine, Wire Saw Machine, Stone Splitter, Stone Polishing Machine|

Contact supplier

Start Order

You may also like
Infrared Bridge Cutting Machine (Conventional/Heavy/Heavy)- HZQ
Infrared Bridge Cutting Machine (Conventional/Heavy/Heavy)- HZQ
Affordable Value 4-Axis Stone Bridge Saw For Marble Granite Cutting
Affordable Value 4-Axis Stone Bridge Saw For Marble Granite Cutting
ZDBL-600 INTEGRATED BRIDGE CUTTING MACHINE
ZDBL-600 INTEGRATED BRIDGE CUTTING MACHINE
Laser Stone Bridge Saw Slab Cutting Machine For Marble And Granite
Laser Stone Bridge Saw Slab Cutting Machine For Marble And Granite
AUTOMATIC BRIDGE EDGE CUTTING MACHINE（Q-2）
AUTOMATIC BRIDGE EDGE CUTTING MACHINE（Q-2）
  • Overview
  • Components
Machinery Function Features
Jumbo slab optional, Max cutting size: 3500*2200 mm Full size miter cutting optional 1. Super heavy duty Casted iron bridge 2. Monoblock frame, easy for installation and transportation 3. Side beam only 4 meter, require less footprint 4. 25Hp Italian type Blade motor,30Hp optional 5. Double speed motor , Variable Frequency Drive (VFD) optional 6. Auto on/off water 7. Plunge Cutting Miter Feature 8. Heavy duty hydraulic rotate table 9. Table lock at automatically at every 45° 10. Heavy duty green laser (auto and manual on/off ) 11. Easy operation interface available in English and Spanish 12. Metric and Imperial unit 13. Swivel Arm operator panel 14. Industry anti water Wireless controller 15. Super heavy steel walls
Technical Data
Parameters
Unit
WSD625M
Table rotate degree
°
360
Table tilt angle
°
85
Water consumption
M³/h
4
Bridge oil
#
LHG68
Max cutting size
mm
3200*2000*200
Dimension
mm
5900*4000*3200
Miter degree
°
45
Blade size
mm
450-625
Weight
kgs
6800
Blade speed
Rpm
(Double speed)
Main motor power
kw
18.5
Hydraulic oil
#
LHM46
Total power
kw
27

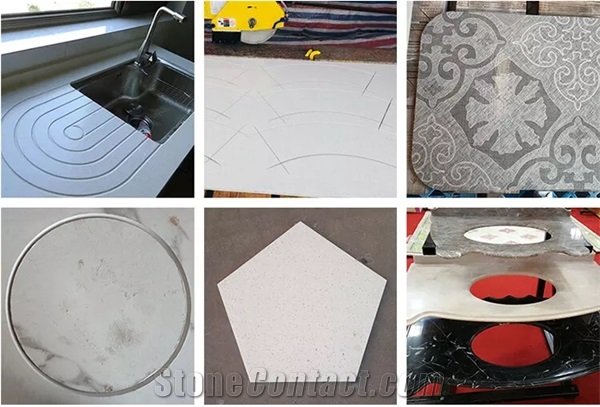

Processed Stone Photos
  • Processed Stone Photos

Components

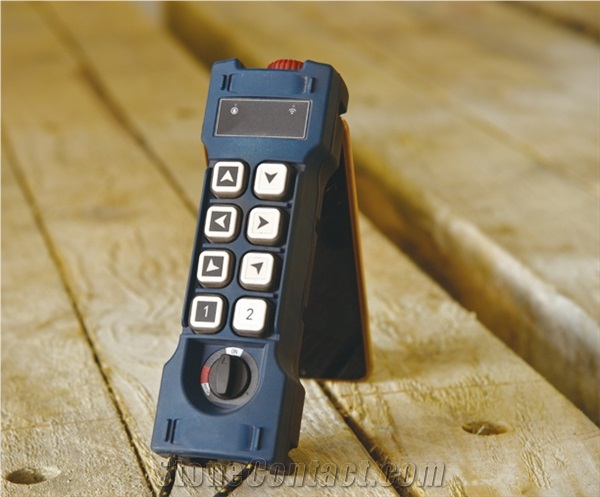

  • industry wireless controller

    industry wireless controller

Consumables
  • blade

    blade
