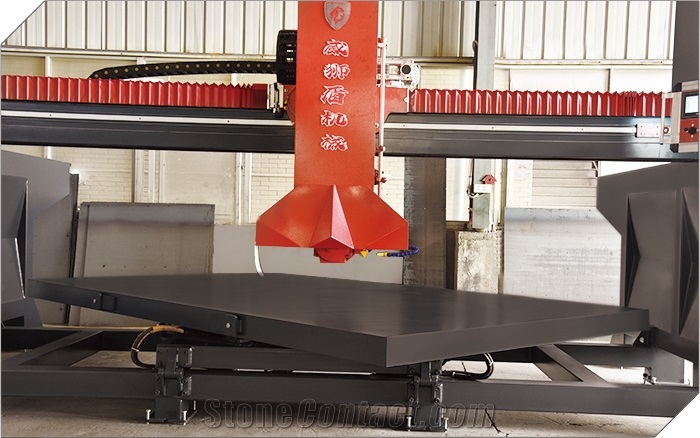

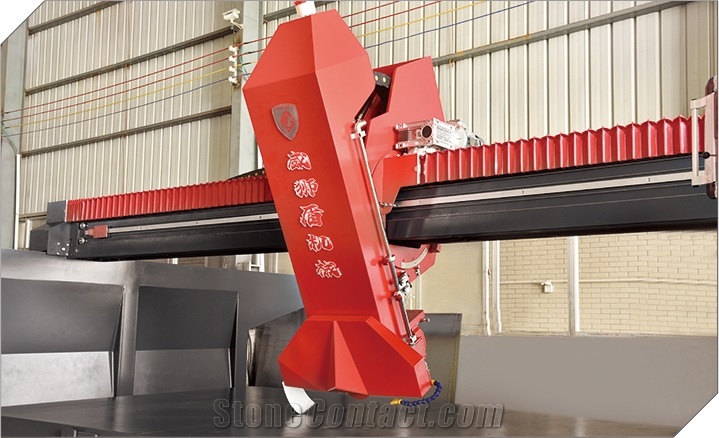

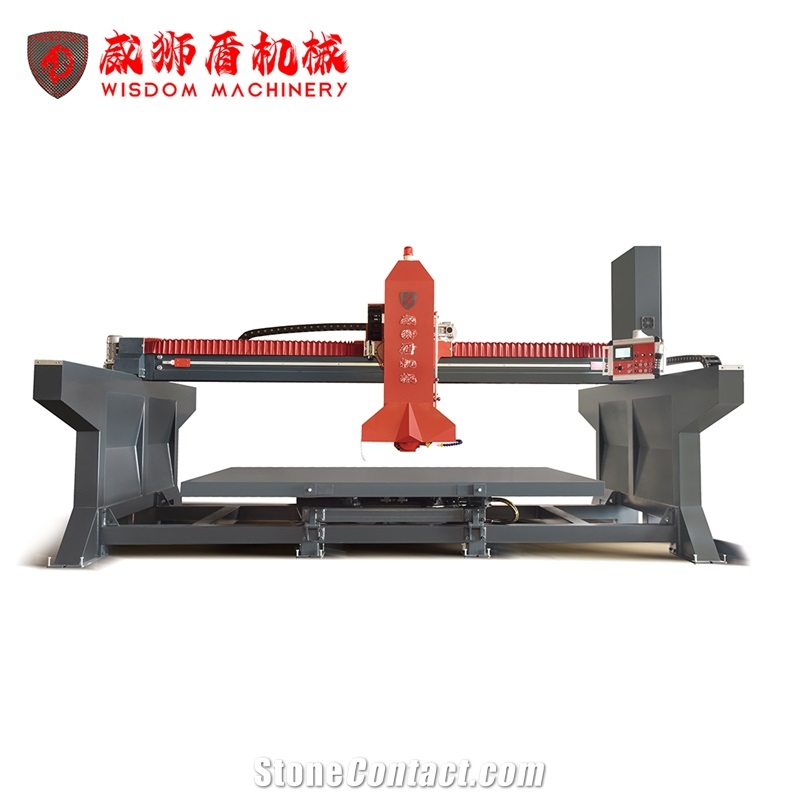

Infrared Bridge Saw For Quartz Kitchen Countertop Making
FOB Price:$25000-30000
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 20,2021
Main Product:
Bridge Saw, Stone Cutting Machine, Block Cutting Machine, Wire Saw Machine, Stone Splitter, Stone Polishing Machine|
Machinery Function Features
Machine Features
Jumbo slab optional, Max cutting size: 3500*2200 mm
Full size miter cutting optional
1. Super heavy duty Casted iron bridge
2. Monoblock frame, easy for installation and transportation
3. Side beam only 4 meter, require less footprint
4. 25Hp Italian type Blade motor,30Hp optional
5. Double speed motor , Variable Frequency Drive (VFD) optional
6. Auto on/off water
7. Plunge Cutting Miter Feature

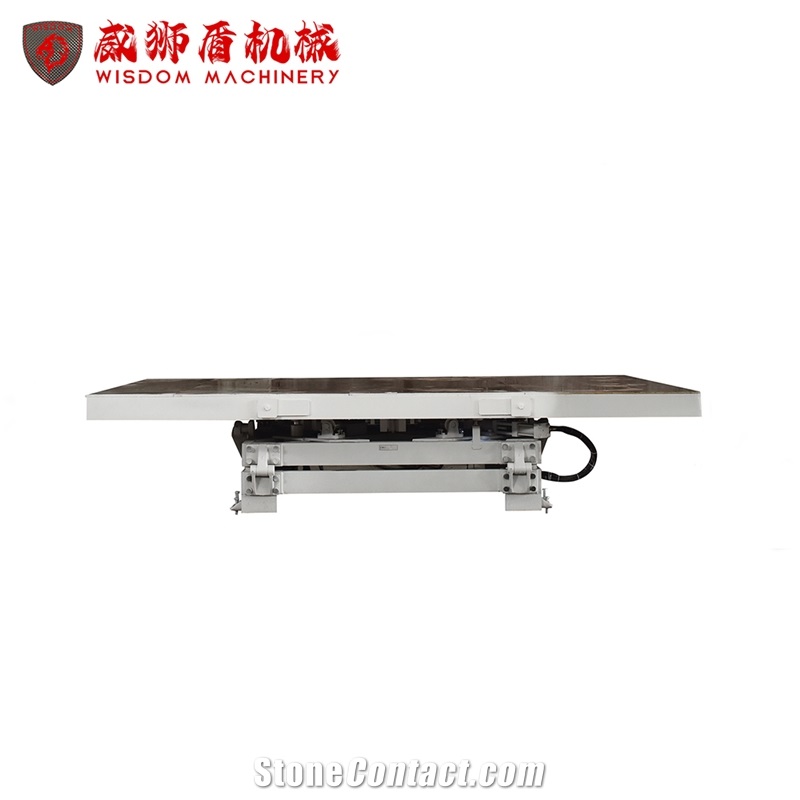

8. Heavy duty hydraulic rotate table
9. Table lock at automatically at every 45°

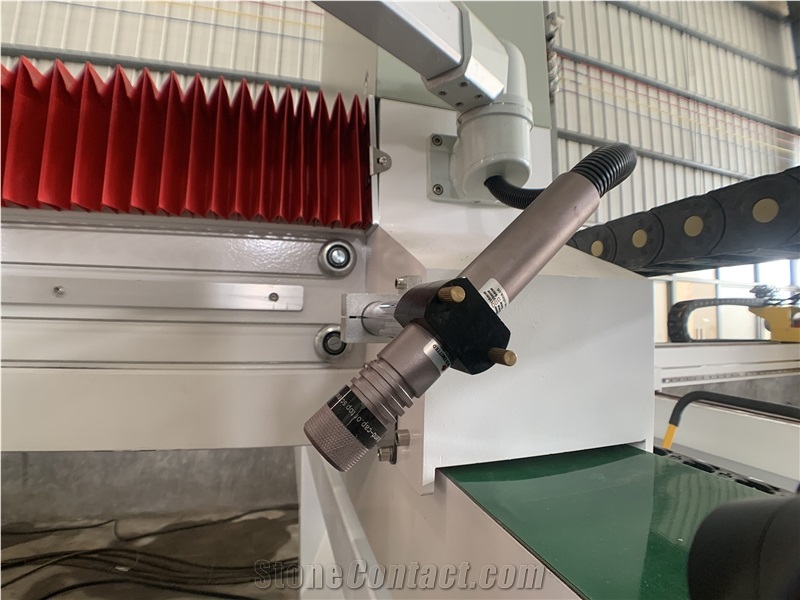

10. Heavy duty green laser (auto and manual on/off )
11. Easy operation interface available in English and Spanish
12. Metric and Imperial unit
13. Swivel Arm operator panel
14. Industry anti water Wireless controller

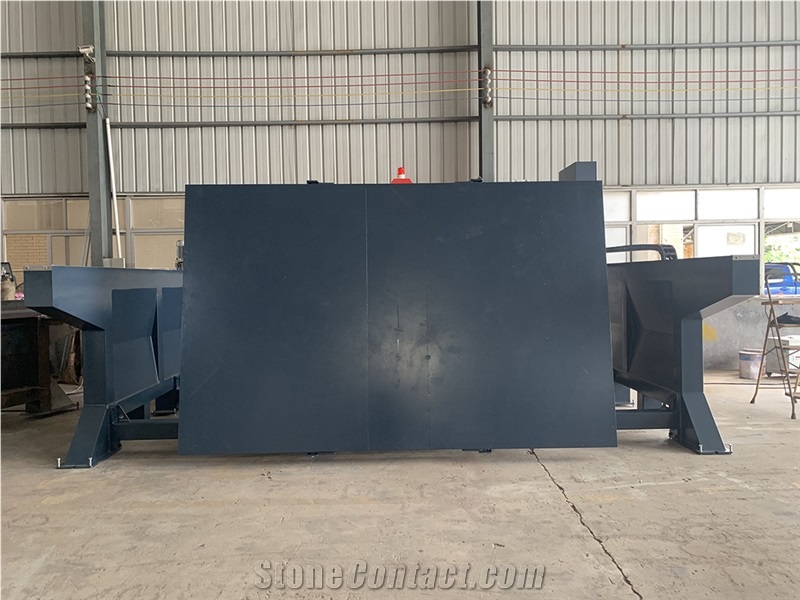

15. Super heavy steel walls
Technical Data
Parameters |
Unit |
WSD625 |
Hydraulic oil |
# |
LHM46 |
Table rotate degree |
° |
360 |
Max cutting size |
mm |
3200*2000*200 |
Table tilt angle |
° |
85 |
Main motor power |
KW |
18.5 |
Water consumption |
M³/h |
4 |
Bridge oil |
# |
LHG68 |
Dimension |
mm |
5900*4000*3200 |
Weight |
kgs |
6800 |
Miter degree |
° |
45 |
Blade speed |
Rpm |
(Double speed) |
Total power |
KW |
27 |
Blade size |
mm |
450-625 |

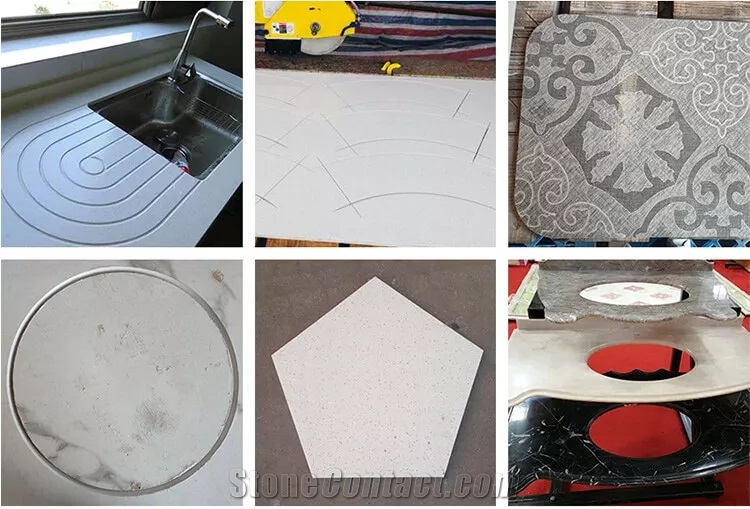

Processed Stone Photos
Components

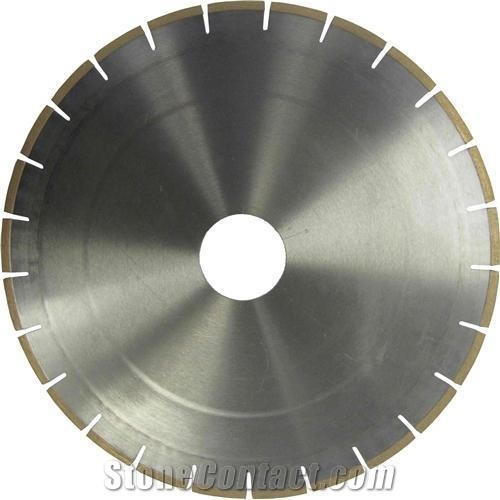

Consumables

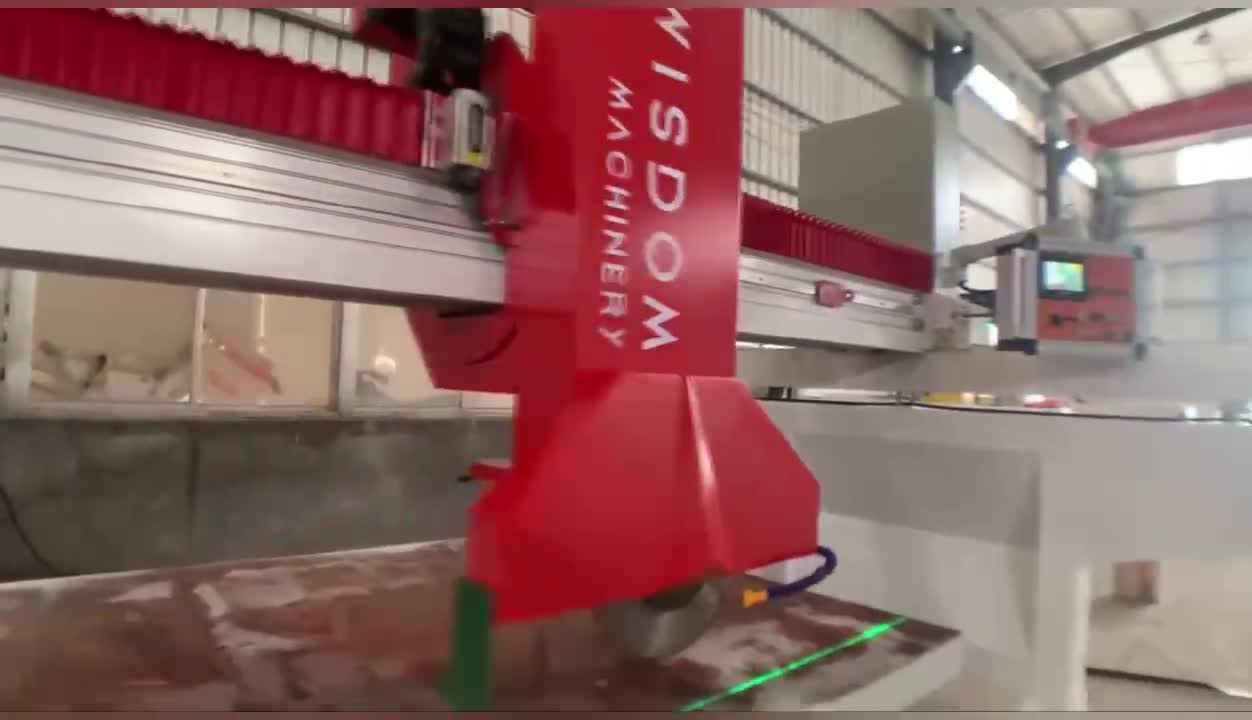

Customer Case
