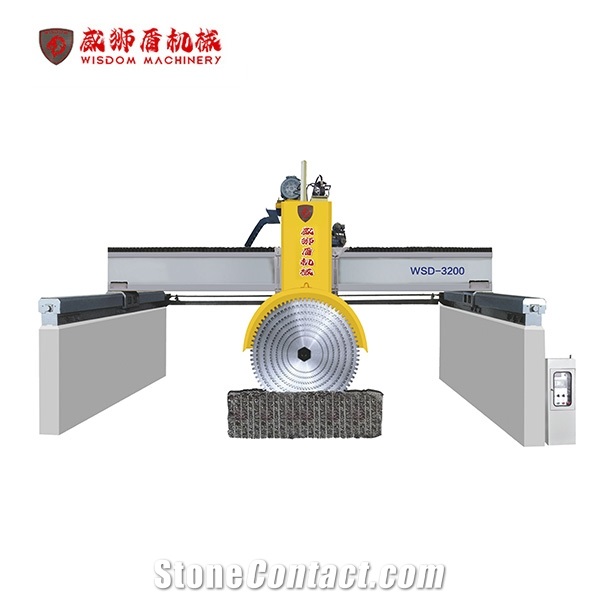

Bridge Saw Block Cutting Machine For Granite Marble Stone

FOB Price:$35000-80000

Type: Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 40days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

QUANZHOU WISDOM MACHINERY DEVELOPMENT CO., LTD

QUANZHOU WISDOM MACHINERY DEVELOPMENT CO., LTD
Wisdom

ChinaChina idicon

Eatablished :Jan 20,2021

Main Product:

Bridge Saw, Stone Cutting Machine, Block Cutting Machine, Wire Saw Machine, Stone Splitter, Stone Polishing Machine|

Contact supplier

Start Order

You may also like
QCYI/M-2200 Multi-Blade Block Cutting Machine For Granite Marble
QCYI/M-2200 Multi-Blade Block Cutting Machine For Granite Marble
Complete Line For Curbstone Cutting And Chamfering
Complete Line For Curbstone Cutting And Chamfering
Laser Middle Block Stone Cutting Bridge Saw Machine For Granite Marble
Laser Middle Block Stone Cutting Bridge Saw Machine For Granite Marble
CUBE M 1600 4 Columns Automatic Electronic Block Cutter for Marble
CUBE M 1600 4 Columns Automatic Electronic Block Cutter for Marble
Bridge Cutting Machine for Small Stone Blocks
Bridge Cutting Machine for Small Stone Blocks
  • Overview
  • Components
Machinery Function Features

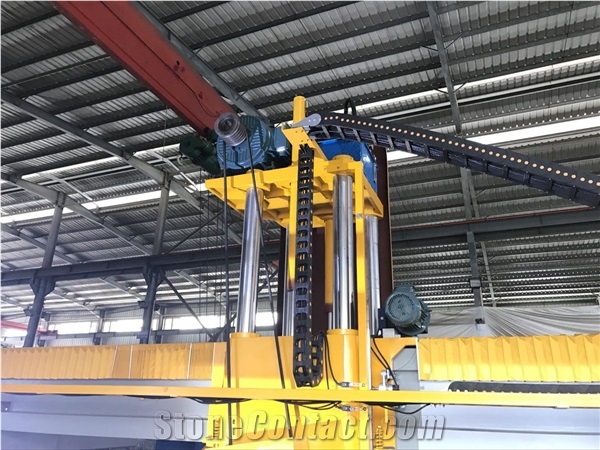

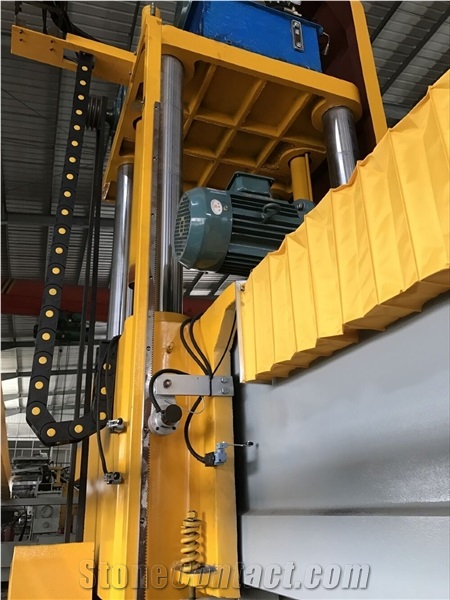

Multi blade block rock cutting machine This machine use inverter to control the left-right feeding, it can adjust the speed according to different kind stones. It uses hydraulic lifting system, forward-backward slicing use high-precision screw nut driving, automatic slicing, main parts adopt imported materials; The block can be placed in the ground directly to save workable and its maintenance costs; Thus the whole machine is featured as high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability,easy-operating to suit specially cutting granite and marble block with high value.
Technical Data
Parameters
Unit
WSD2500/45
WSD2800/55
WSD3000/65
WSD3200/75
Blade number
nº
1-9
1-9
1-9
1-9
Y axis stroke
mm
2200
2200
2200
2200
Main motor lift stroke
mm
1200
1300
1400
1500
Dimension
mm
8000*3800*4200
8000*3800*4500
8000*3800*4800
8000*3800*5000
Blade diameter
mm
1600-2500
1600-2800
1600-3000
1600-3200
X axis stroke
mm
4500
4500
4500
4500
Weight
kgs
12000
12500
13000
13500
Main motor power
kw
30-45
37-55
45-65
55-75

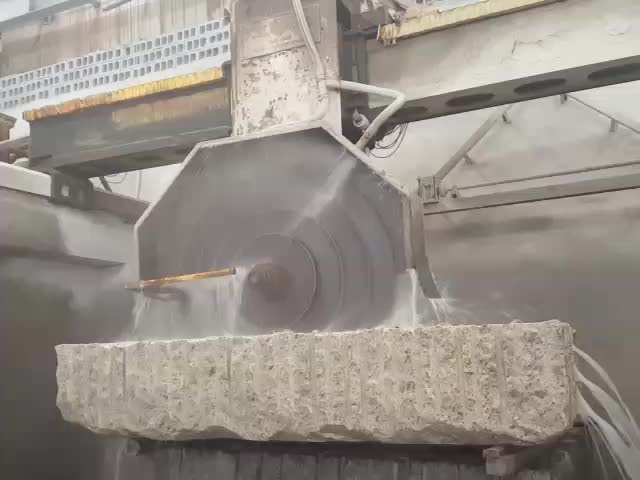

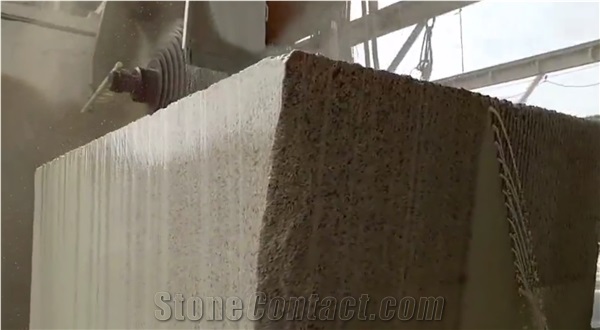

Processed Stone Photos
  • Processed Stone Photos

Components
Consumables

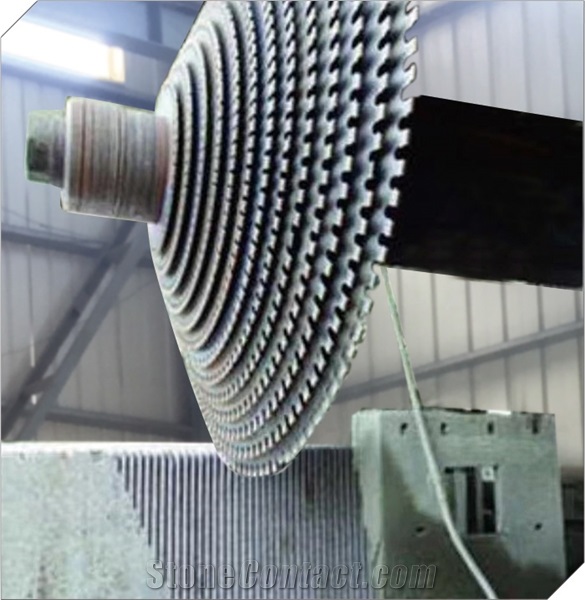

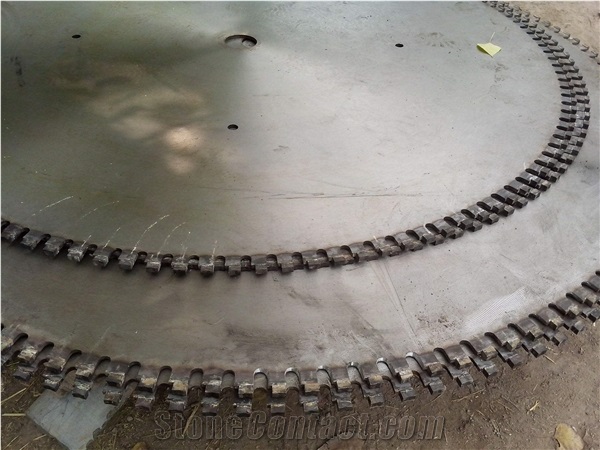

  • blade

    blade
