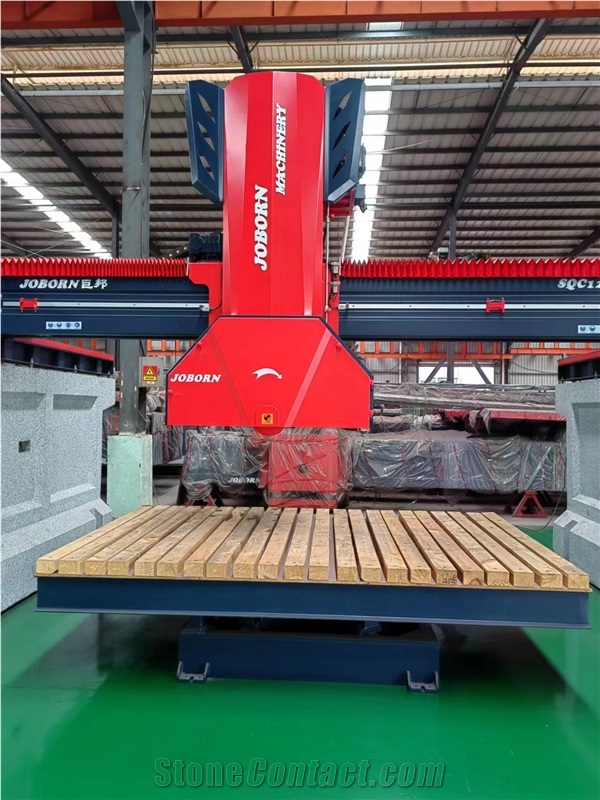

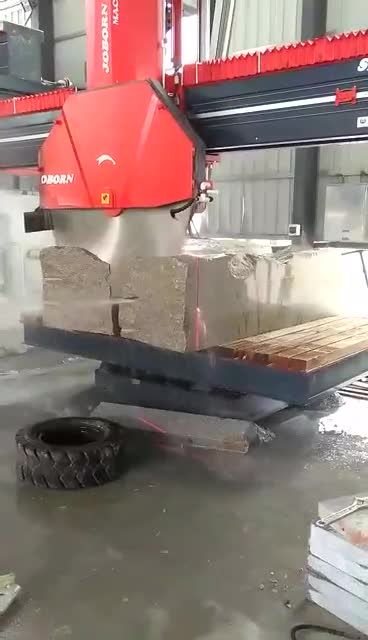

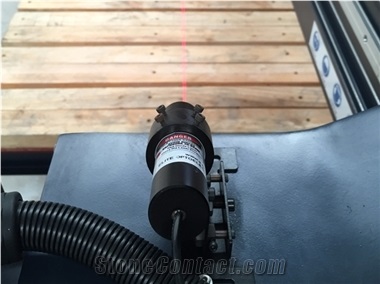

Laser Middle Block Stone Cutting Bridge Saw Machine For Granite Marble

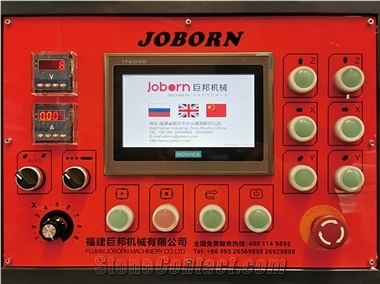

This machine adopts the PLC control system, floor type electric control cabinet, LCD touch screen (7 inches) using Chinese, English, Russian, Arabic, with the best human-computer interaction interface, the operation interface is a combination of touch screen and mechanical button to control the interface, input operating parameters through interface (including cutting size specification, moving speed) Etc., plus wireless remote control, the cutting process is automated and programmed.

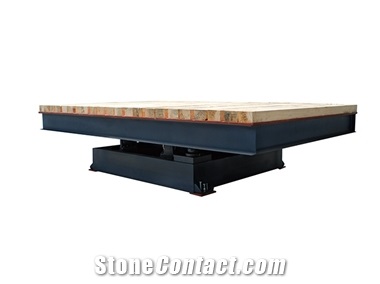

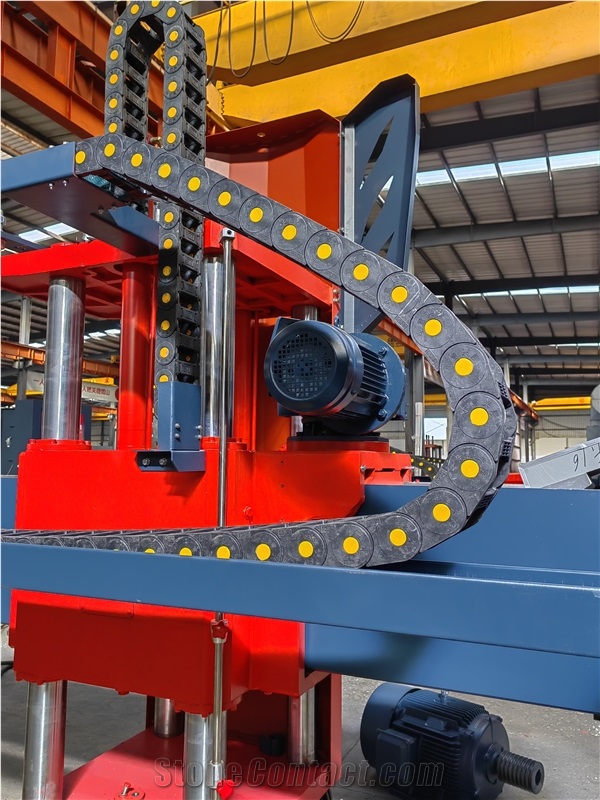

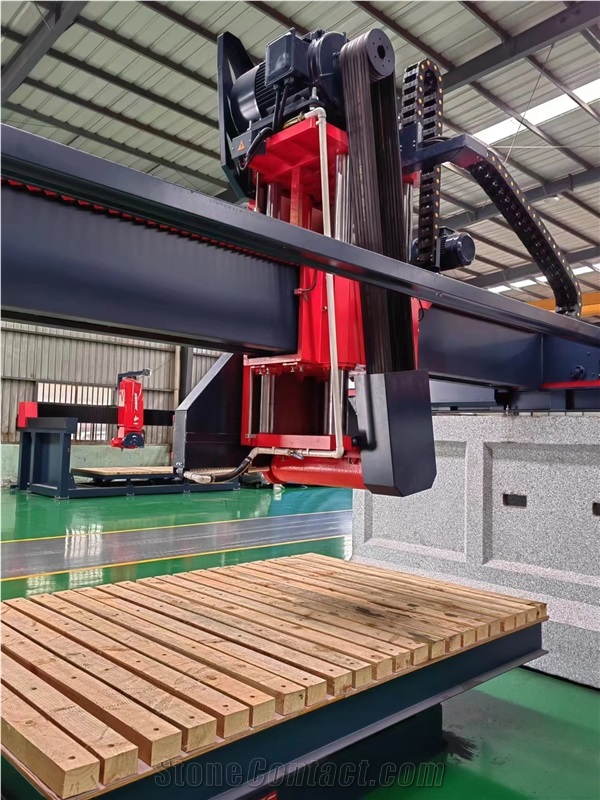

Mechanical part: The beam is cast as a whole, the beam is 5 meters long, the cross-section size is 450*350mm, and the design of wide oil groove is adopted. The main engine is a four-guide column lifting, solid chrome plated guide column of 100mm diameter, wear-resistant guide sleeve of ductile cast iron, all four guide columns are oil-immersed lubrication, and the upper and lower link plates are cast as a whole. The automatic hydraulic rotating table is 3000*2000mm (non-reversible), and the platform frame of the table is made of national standard 200mm H-shaped steel. The bottom frame is made of national standard 250mm channel steel, the workbench is supported by 6 rollers, and the bearing in the main shaft box is arranged in the front 2+ back 2 structure;

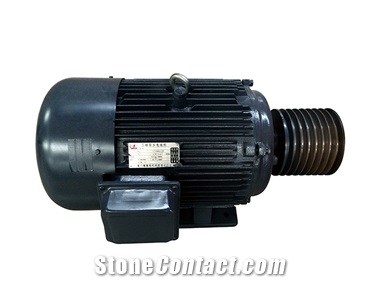

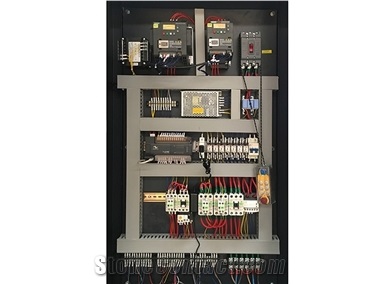

Electrical part: floor type electric control cabinet, PLC computer operating system, LCD touch screen (7 inches) using Chinese, English, Russian, Arabic operation interface, wireless remote control, the main motor is 30kW-6P;

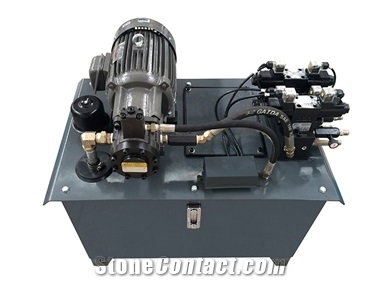

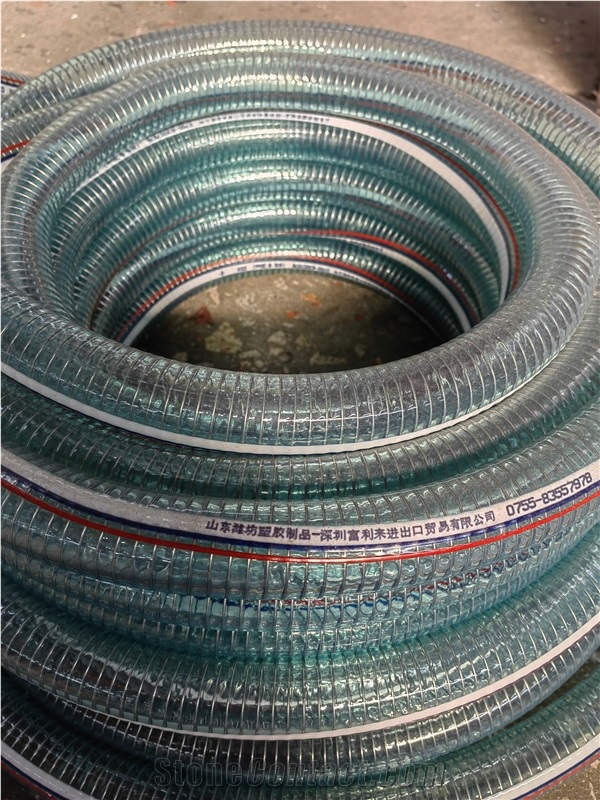

Hydraulic part: host double hydraulic lifting, 90 degree table rotation for hydraulic cylinder drive, 360 degree table rotation for hydraulic motor drive, Taiwan first-line brand solenoid valve, double thickened high-pressure tubing;
