Automatic Four-Blade Cube Stone Splitting Machine
FOB Price:$11000-13000
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|

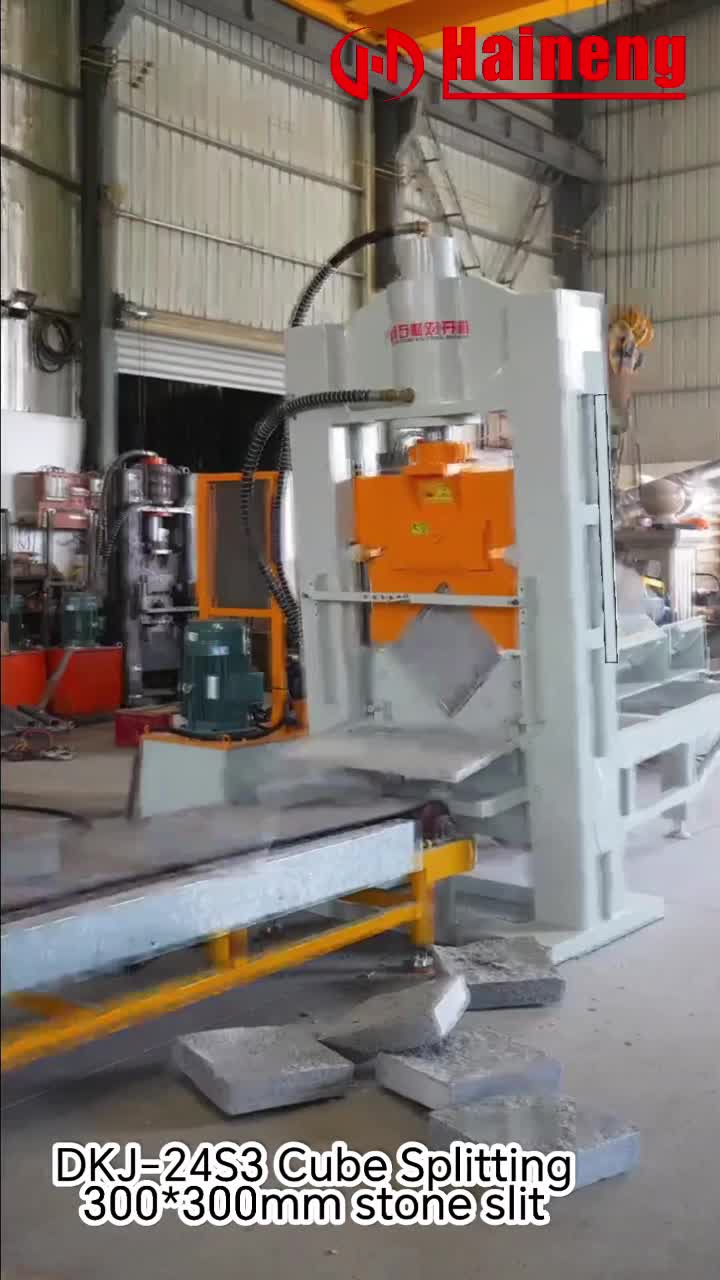

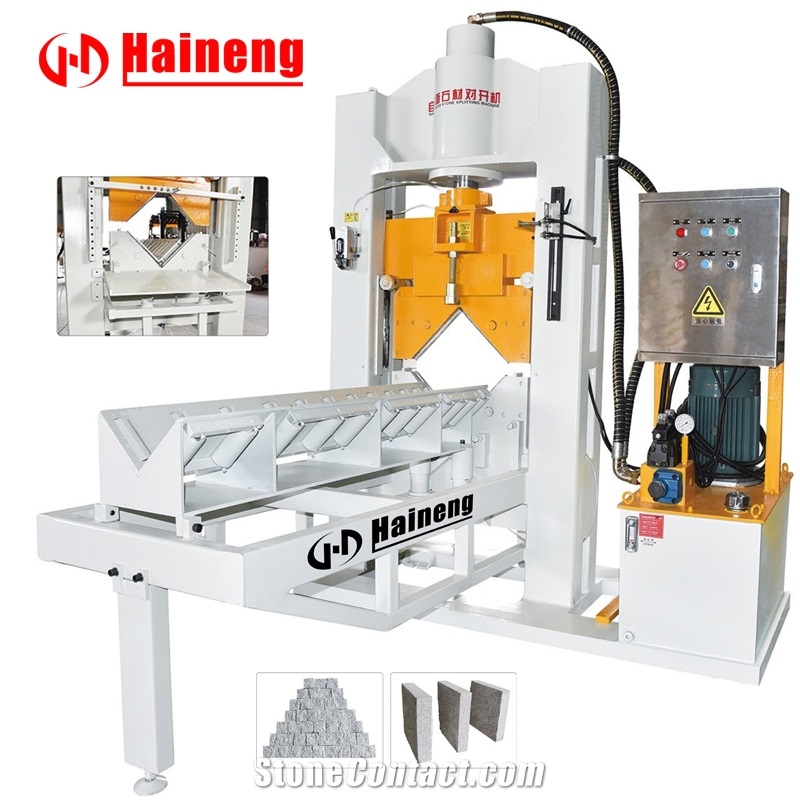

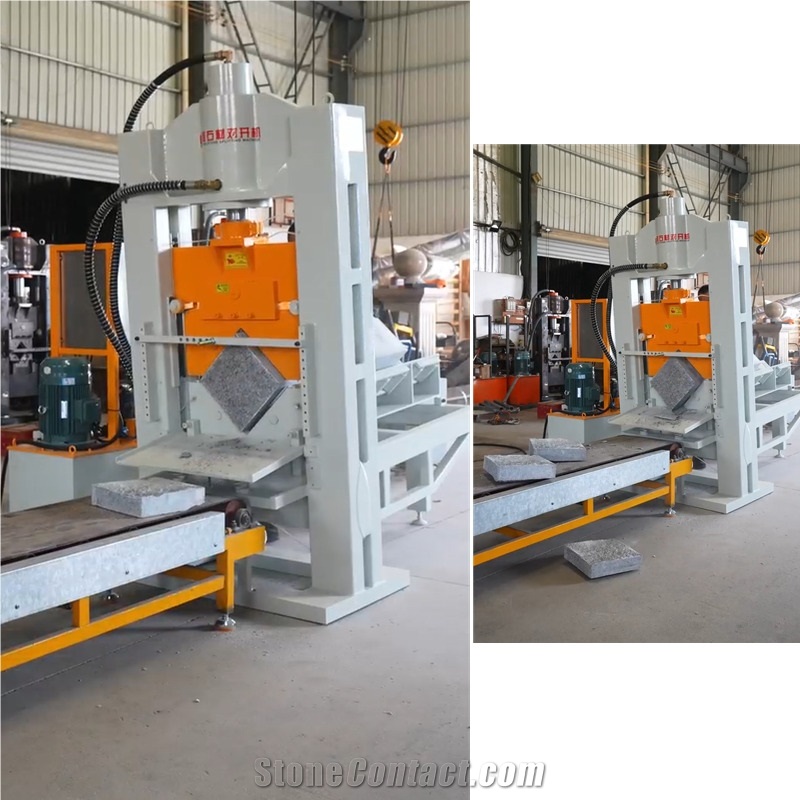

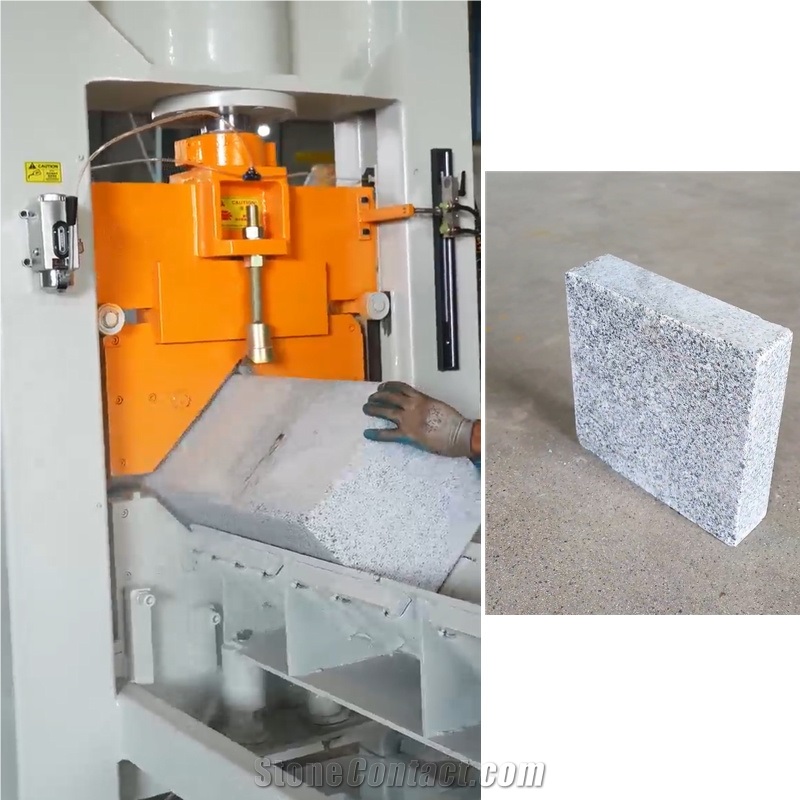

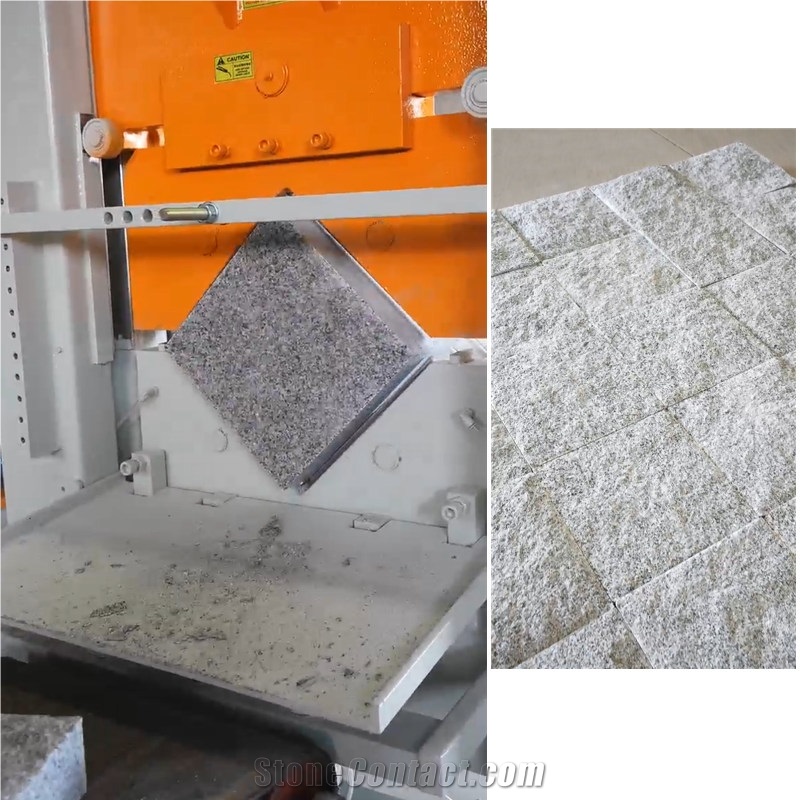

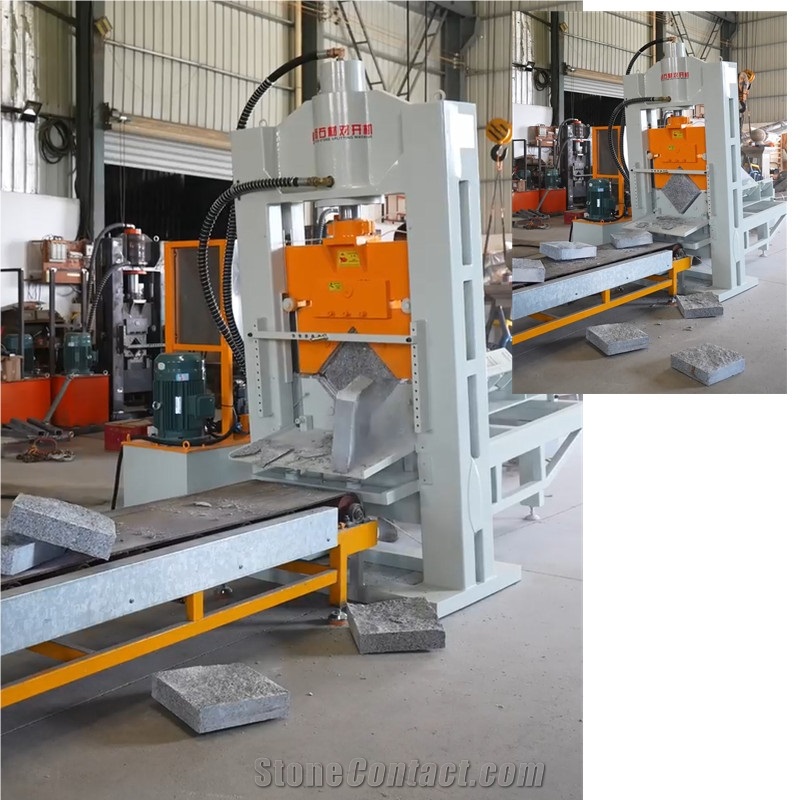

This stone splitting machine is designed with hydraulic drive to split square column stone into blocks cubes or blocks with rustic look. It is an efficient machine for producing cubic paving stones. Main Features 1.Open frame machine model for easy maintenance 2.Made of sturdy cast iron and high-quality components to ensure stability while working. 3.Rapid lifting motion greatly improves work efficiency. 4.Heat treated and hardened high carbon steel chisels produce superior cracks every time.
Parameters |
Unit |
DKJ-24S3 |
Hydraulic oil grade |
46 |
|
Max. Pressure |
tons |
80 |
Approximate weight |
T |
1.75 |
Max. working width |
cm |
30 |
Voltage |
V |
380 |
Blade feeding speed |
cm/s |
5 |

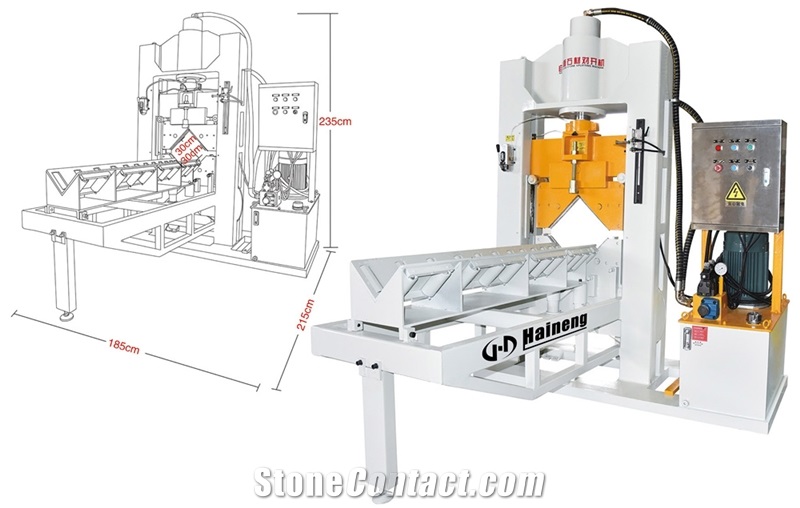

Machine width (W) |
cm |
185 |
Frequency |
Hz |
50 |
Main Motor Power |
kw |
7.5 |
Max. working height |
cm |
30 |
Oil tank capacity |
L |
78 |
Machine length (L) |
cm |
215 |
Output per Hour |
m2/h |
50 |
Machine height (H) |
cm |
235 |
Flow rate |
L/min |
25 |
-
