Hand Grinding Polisher Machine Single Head Hand Polishing Machine
FOB Price:$9000-15000
Type:
Stone Factory MachinesStone Surface Processing Machines Arm Polishing Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
15days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jan 20,2021
Main Product:
Bridge Saw, Stone Cutting Machine, Block Cutting Machine, Wire Saw Machine, Stone Splitter, Stone Polishing Machine|
Machinery Function Features

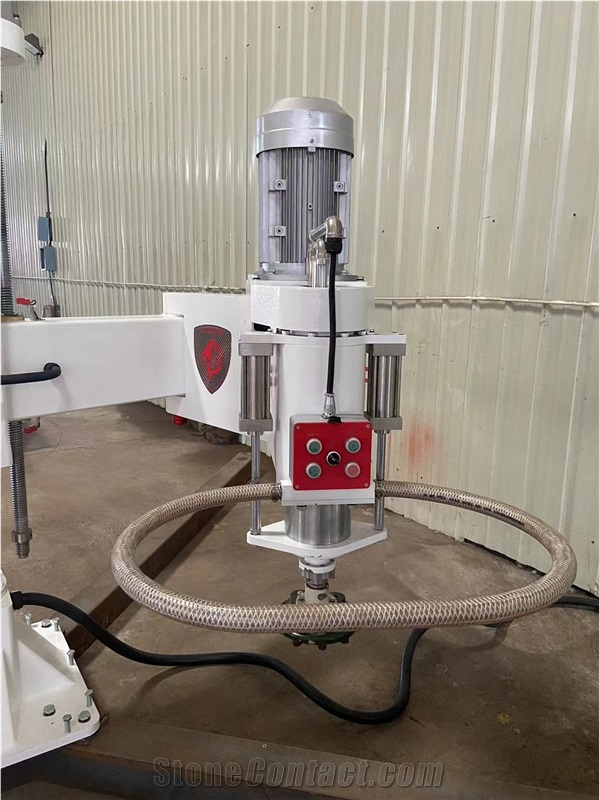

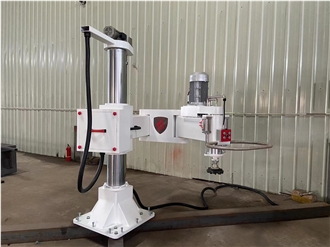

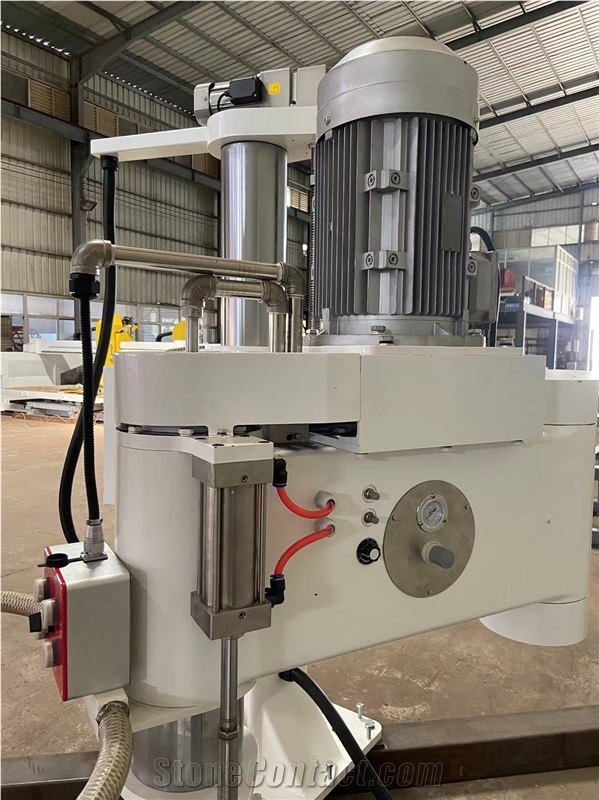

Wisdom Arm Polishing Machine is made of high grade cast iron. The polishing arms have thick walls to avoid breakage.
Quality bearings used in the arm joints and polishing head ensure the arms swing very flexible and long working life.
Wisdom Arm Polishing Machine is suitable for polishing the kind of slab with thickness not varying too much.
Technical Data
Parameters |
Unit |
WSDAP |
Min. Return Radius |
mm |
500 |
Dimension |
mm |
3450*750*2250 |
Arm up down stroke |
mm |
3200×2000×200 |
Max processing size |
mm |
2750*1350 |
Max. Return Radius |
mm |
2325 |
Head up down stroke |
mm |
350-625 |
Max processing height |
mm |
1100 |
Main motor speed |
rpm |
0-888 |
Total power |
kw |
8.5 |
Water consumption |
M3/h |
3 |
