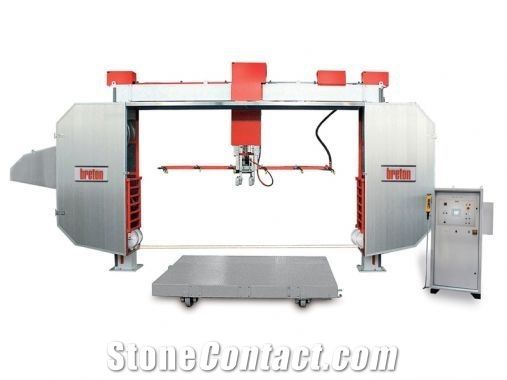

Breton - EASY2WIRE 2-wire Machine for Cutting Thick Slabs and Block Squaring

EASY2WIRE - DOUBLE-WIRED MACHINE Machine for cutting slabs and thick slabs by means of two wires, featuring an arc-welded steel structure which is heat treated to ensure the required stiffness of the system and a top cutting precision. It is provided with two 1.000 mm Ø driving pulleys, actuated by an inverter controlled asynchronous motor that optimizes the wire peripheral speed in accordance with the material to be sawn. Two pairs of driven pulleys with the same diameter are constantly kept under tension by two pneumatic cylinders thus giving the wire an ideal and independent tension. The assembly is complemented by two additional, independent 1.000 mm Ø driven pulleys and four wire driving pulleys. Extremely user-friendly, the machine is provided with a control console with touch-screen housed in the electric cabinet and a mobile button panel to actuate the main working axis. The adjustment of the distance between the wires is motorized and actuated from the button panel except for the wire driving units which need to be adjusted manually. The operator has just to check the real distance between the two wires.
