Breton - EASYWIRE Duo for Block Squaring
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Usage:
Granite, Marble, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Delivery Details: FOB
Payment :
Supplier
Breton S.p.A.
Italy
Eatablished :Dec 31,1962
Main Product:
Stone Machines, Cutting Machine, Polising Machine, Wire Saw, Cnc Machines|
Machinery Function Features

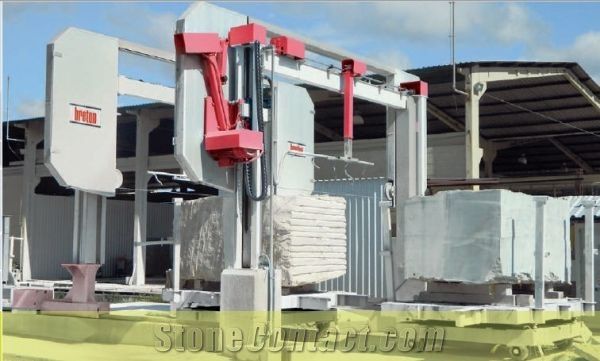

System used to square blocks (two parallel sides of the block) or cut slabs (even thick slabs) using exclusively the fixed machine.

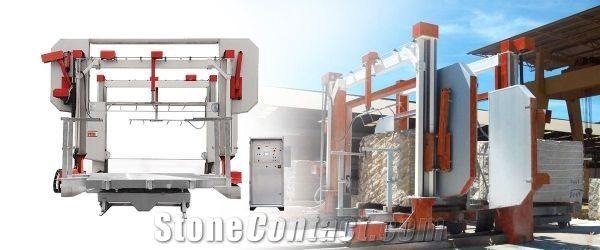

The squaring system consists of two single-wire machines EASYWIRE placed parallel to each other, one of which is fixed while the other moves on rails with motorized traverse.
The movement of the mobile single-wire machine is by two inverter controlled asynchronous motors, which transmit the motion (through reduction gears) to pinions meshing racks that are fixed to the rails.
Technical Data
Parameters |
Unit |
Breton - EASYWIRE Duo |
Wire actuating motor power(fixed machine) |
kW |
15 |
Min. water pressure required |
bar |
2 |
Wire peripheral speed |
mm/sec |
13.000÷40.000 |
Diamond wire length |
mm |
18900 |
Diamond bead maximum diameter |
mm |
7.3 / 8.7 |
Number of diamond wires |
no. |
2 |
Machine height (H) |
mm |
6100 |
Block max. cutting width |
mm |
4200 |
Block max. cutting height |
mm |
2500 |

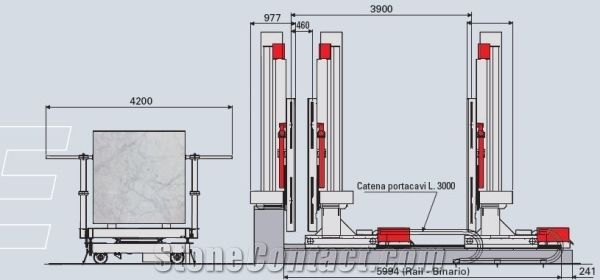

Min. distance between wires |
mm |
460 |
Max. distance between wires |
mm |
3900 |
Installed electrical power |
kW |
45 |
Machine Width (W) |
mm |
7000 |
Min. Air pressure required |
bar |
6 |
Cooling water requirements |
l/min |
80 |
Compressed air requirements |
Nl/min |
100 |
Approximative Weight |
kg |
12000 |
Machine length (L) |
mm |
8100 |
Speed of wire lifting/lowering |
mm/h |
100÷25.000 |
Wire actuating motor power (mobile machine) |
kW |
15 |
